63 99 ... Replacing Bulb For Rear Make-Up Mirror

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove make-up mirror. Refer to 51 44 180 REMOVING AND INSTALLING/REPLACING REAR CONSOLE INSERT / MAKE-UP MIRROR IN REAR COMPARTMENT .

WARNING: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Lever retainer (1) out of cover (3).

Unclip holders (2) from housing section (4).

Carefully remove cover (3) towards top.

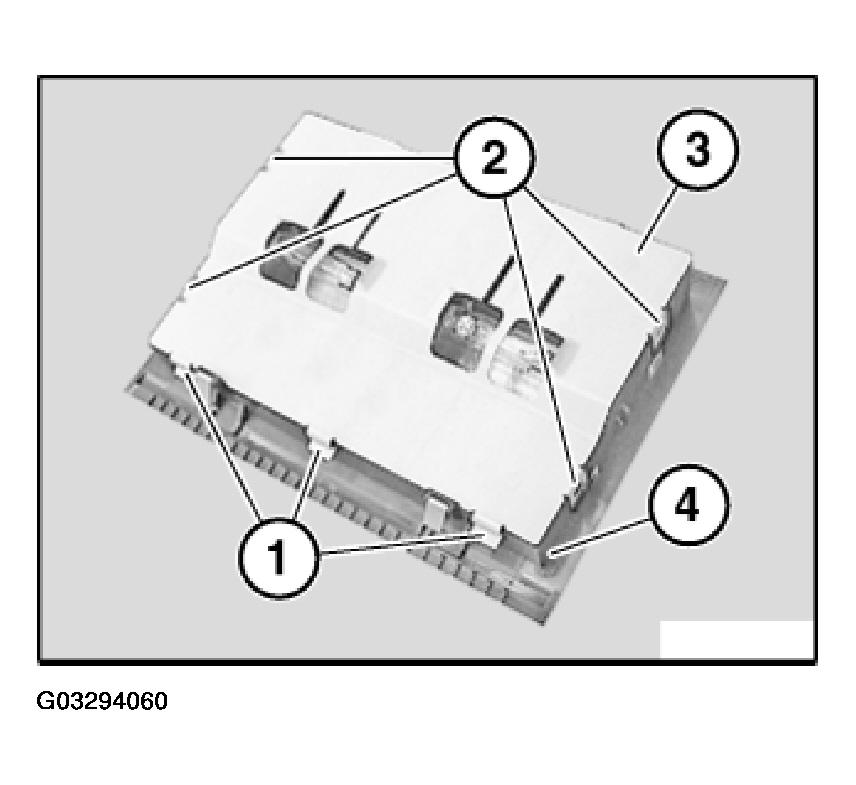

Fig 1: Make-Up Mirror Light Retainer, Cover, Holder And Housing Section

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out bulb (2) underneath.

IMPORTANT: Make sure ejector (1) is correctly seated.

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA .

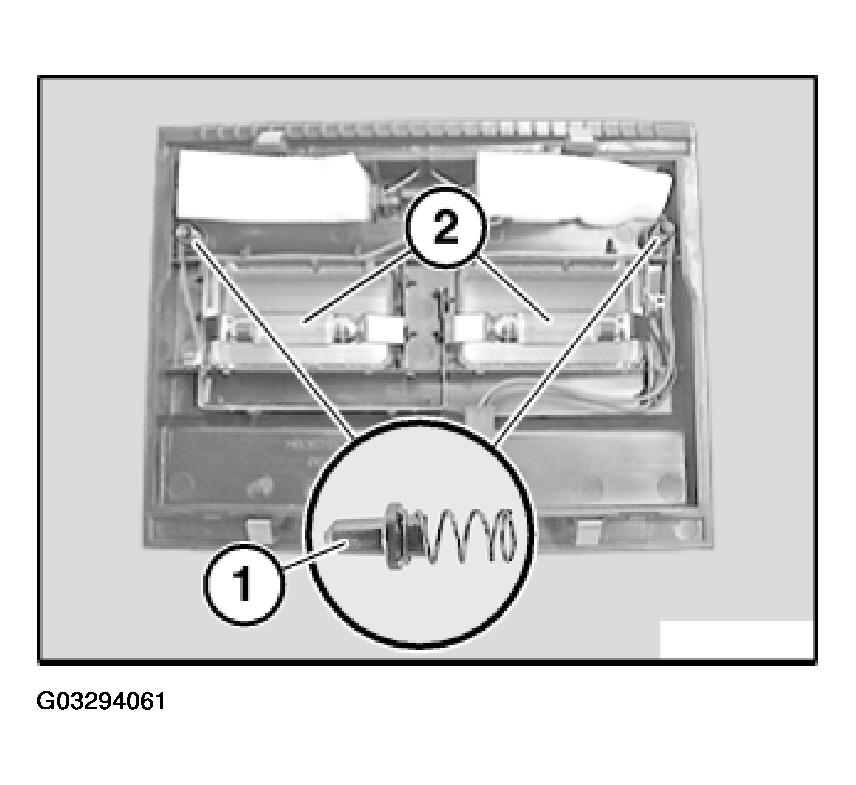

Fig 2: Make-Up Mirror Light Bulb And Ejector

Courtesy of BMW OF NORTH AMERICA, INC.
