63 21 300 Replacing Circuit Board For Left Or Right Rear Light (Up To 03/2005) (On Side Panel)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear light. Refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .

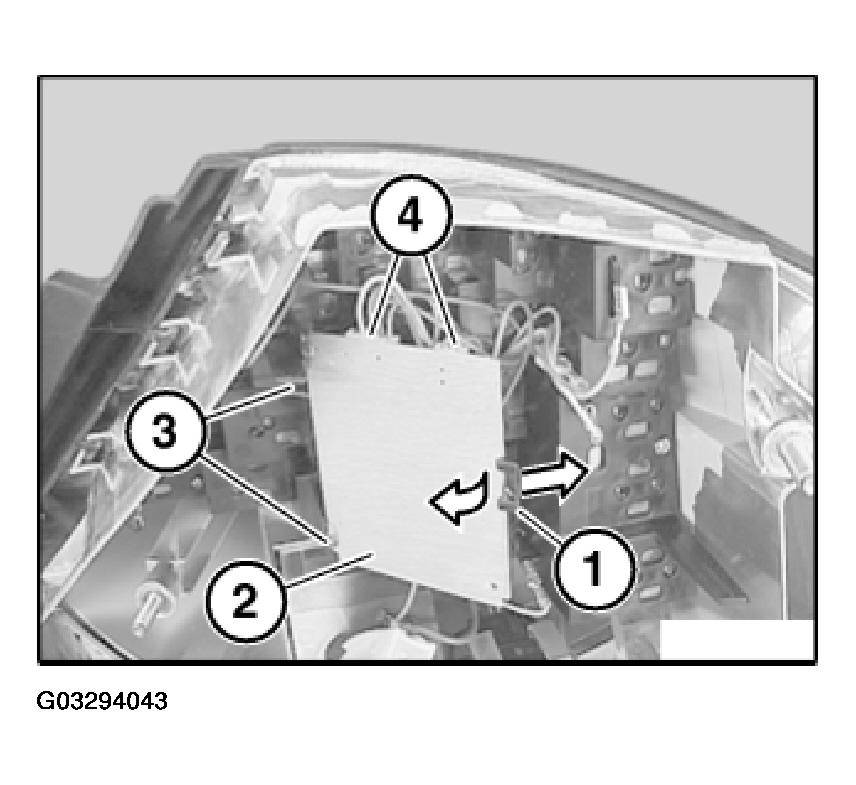

Open catch (1) and fold out circuit board (2).

Disconnect plug connection (4) and remove circuit board (2).

Installation:

Make sure circuit board (2) is correctly seated on supports (3).

Fig 1: Catch, Circuit Board, Plug Connection, Supports And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

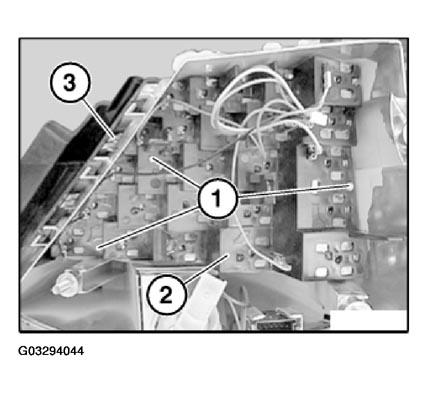

Release screws (1).

Remove circuit board for rear light (2) from rear light (3).

Fig 2: Rear Light, Circuit Board And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
