63 21 300 Replacing Circuit Board For Left Or Right Rear Light (From 03/2005) (On Side Panel)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear light. Refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .

Disconnect plug connections (3).

Open catch (2) and fold out circuit board (1).

Installation:

Make sure circuit board (1) is correctly seated on supports (4).

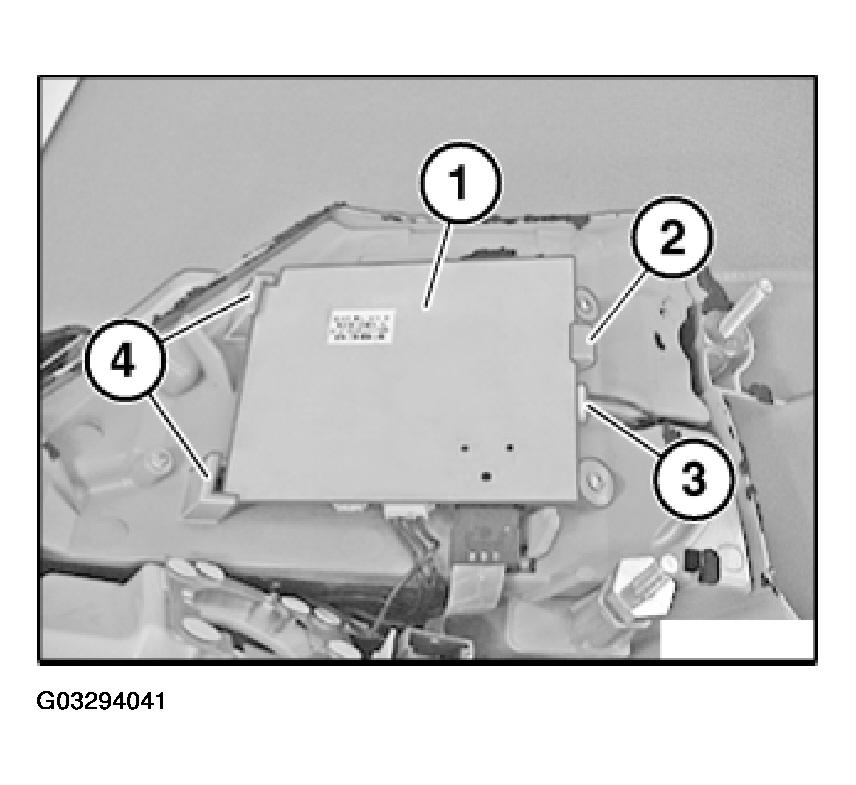

Fig 1: Circuit Board, Plug Connections, Catch And Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove circuit board for rear light (1) from rear light.

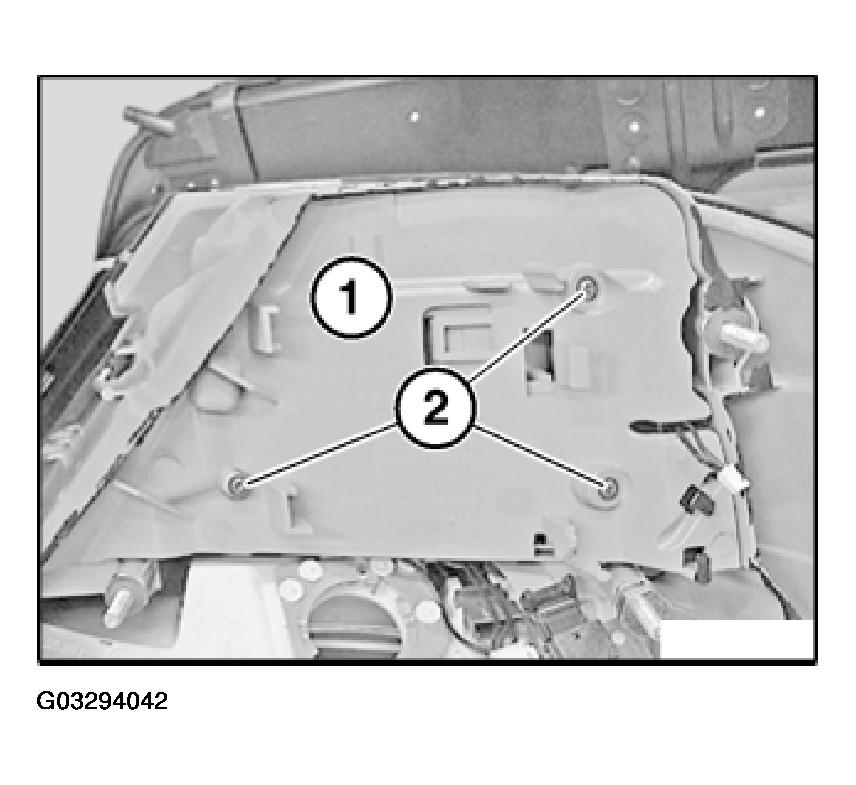

Fig 2: Rear Light Circuit Board And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
