63 21 183 Removing And Installing/Replacing Left Or Right Rear Light (Up To 03/2005) (On Rear Lid)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove complete rear center trim. Refer to 51 13 400 REMOVING AND INSTALLING/REPLACING REAR CENTER TRIM (UP TO 03/2005) .

Unclip rear light (1) and remove.

Installation:

If necessary, replace faulty clips (2).

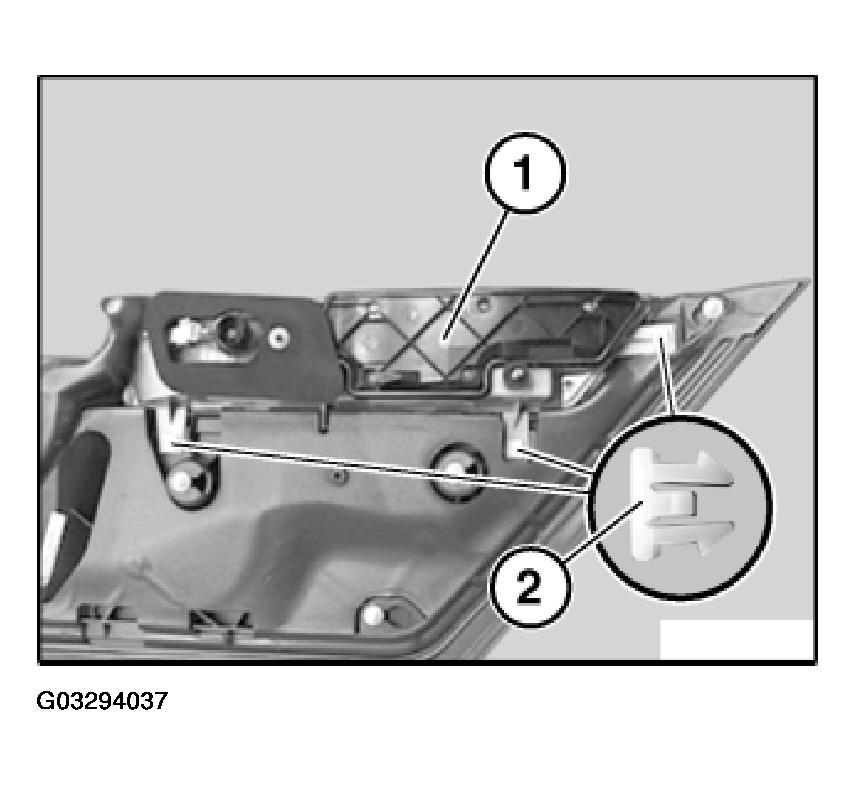

Fig 1: Rear Light And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs. Refer to 63 99 315 REPLACING BULB(S) FOR LEFT OR RIGHT REAR LIGHT (FROM 03/2005) .
