63 21 104 Replacing Sealing Frame For Left Or Right Rear Light (From 03/2005) (On Rear Lid)
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove and install left or right rear light. Refer to 63 21 183 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (FROM 03/2005) (ON REAR LID) .

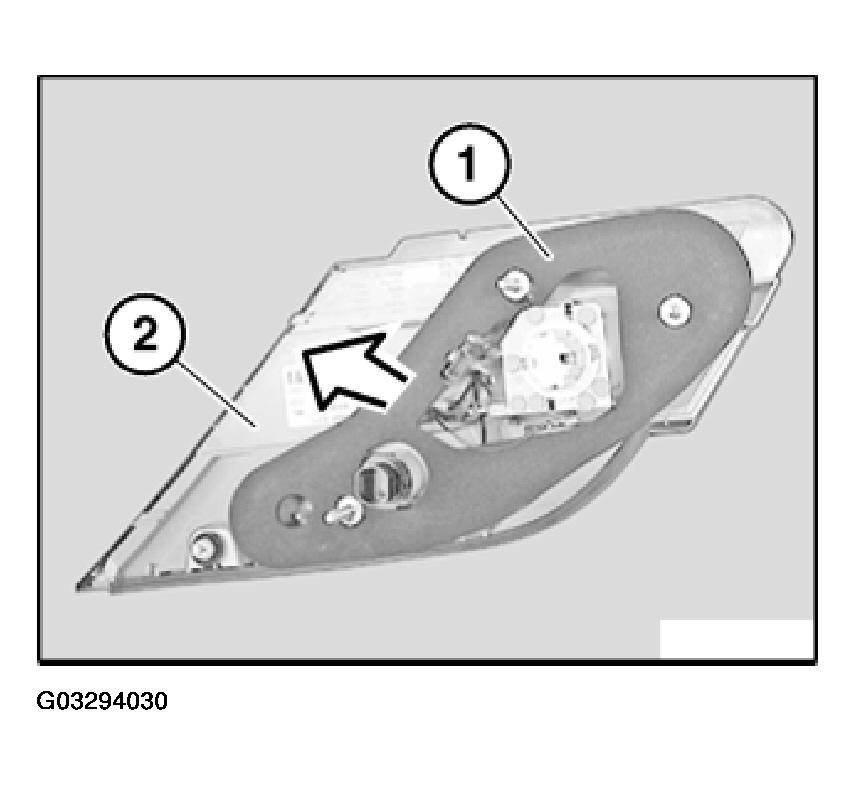

Detach sealing frame (1) in direction of arrow from rear light (2).
Installation:
Make sure sealing frame (1) is correctly bonded all round on rear light (2).
