63 17 070 Removing And Installing/Replacing Left Or Right Fog Lamp (From 03/2005)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The time value of this job does not include adjustment of the fog lamps! Refer to 63 10 014 ADJUSTING FOG LAMPS .

Necessary Preliminary Tasks:

Remove front underbody protection. Refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

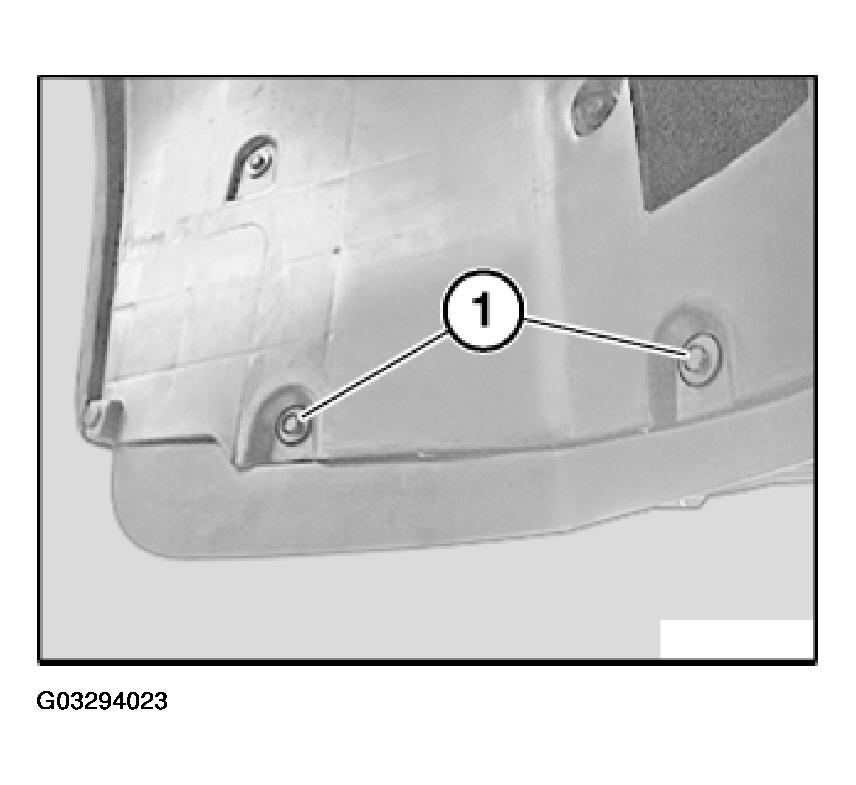

Release screws (1).

Fig 1: Retaining Screws

G03294023

Courtesy of BMW OF NORTH AMERICA, INC.

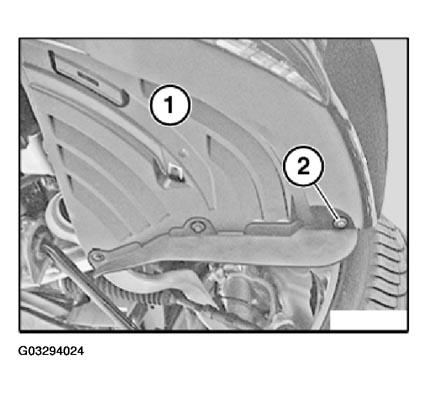

Release screw (2) and remove cover (1).

Fig 2: Cover And Retaining Screws

G03294024

Courtesy of BMW OF NORTH AMERICA, INC.

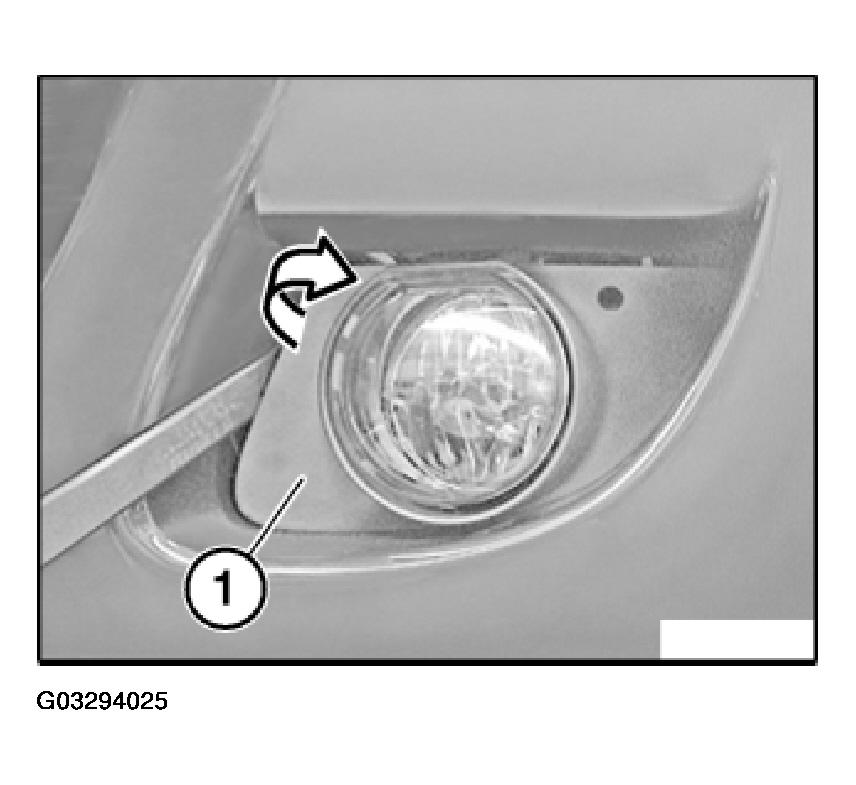

Unclip trim (1) towards front.

Installation:

Retaining hooks of trim (1) must not be damaged.

Fig 3: Trim Retaining Hook And Removal Direction

G03294025

Courtesy of BMW OF NORTH AMERICA, INC.

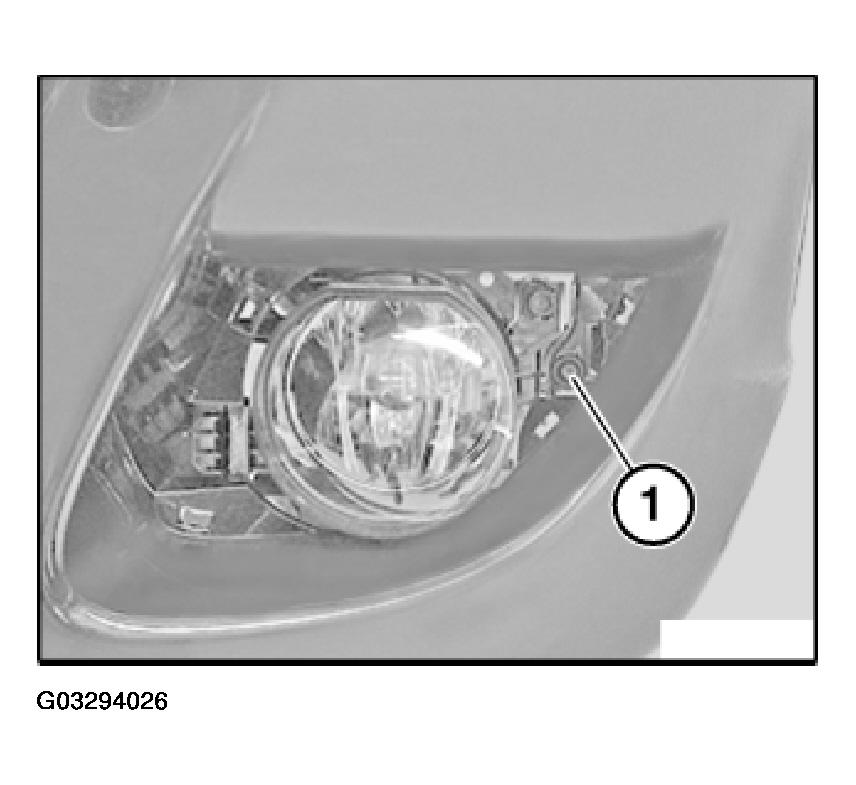

Release screw (1).

Fig 4: Fog Lamp Retaining Screw

G03294026

Courtesy of BMW OF NORTH AMERICA, INC.

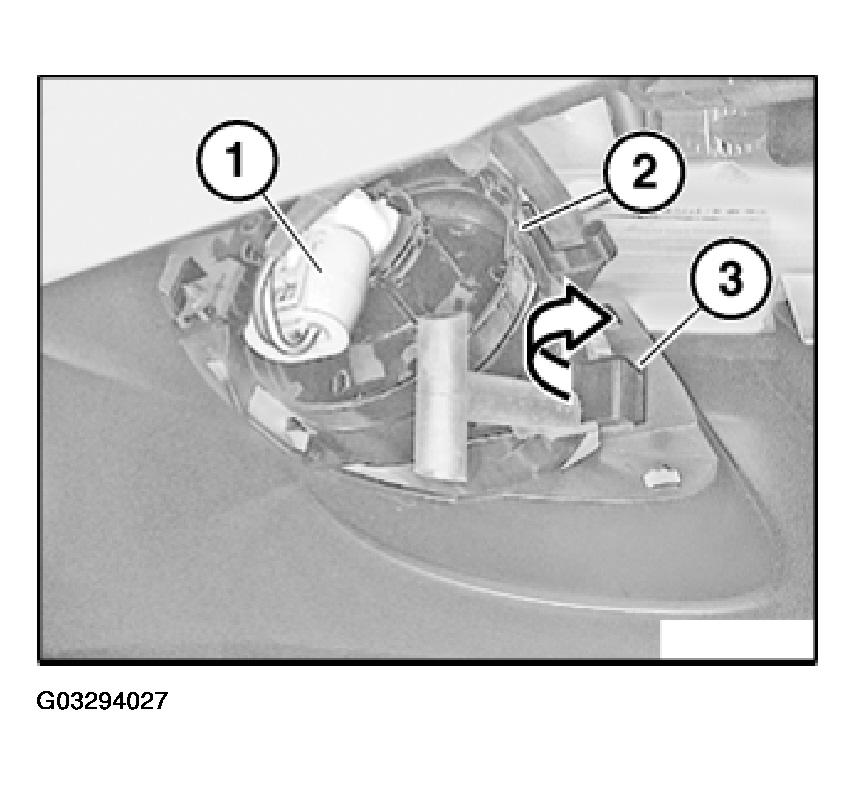

Feed fog lamp (2) in direction of arrow out of holder (3).

Disconnect plug connection (1) and remove front fog light (2).

Fig 5: Front Fog Lamp, Plug Connection, Holder And Removal Direction

G03294027

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs.63 99 210 REPLACING HALOGEN BULB FOR LEFT OR RIGHT FOG LAMP (FROM 03/2005) .
