63 99 210 Replacing Halogen Bulb For Left Or Right Fog Lamp (From 03/2005)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary Preliminary Tasks:

Remove front underbody protection. Refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

Release screws (1).

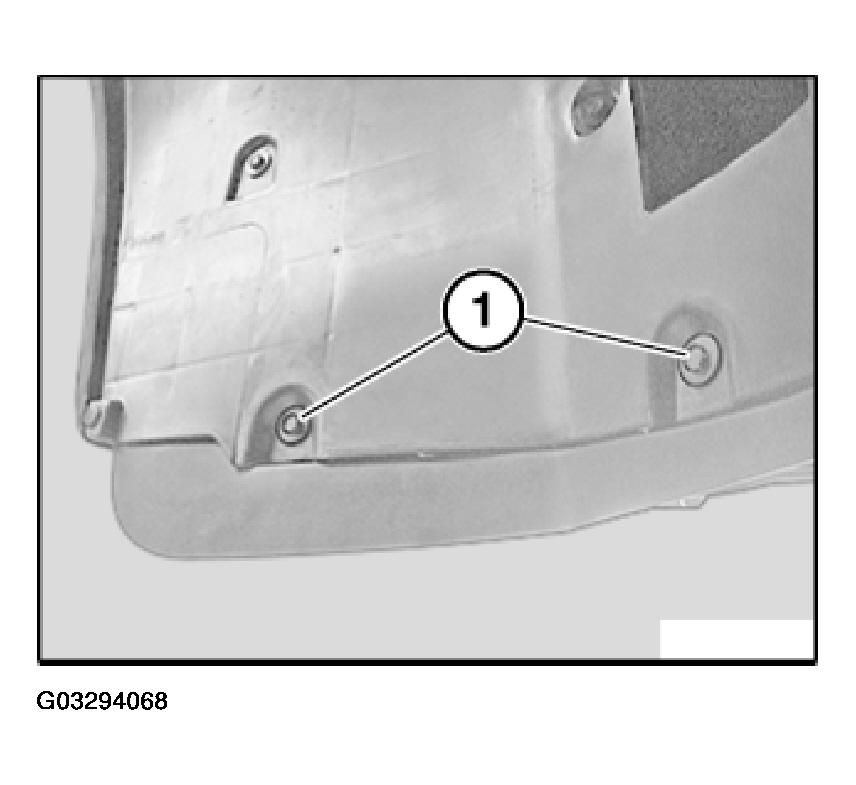

Fig 1: Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) and remove cover (1).

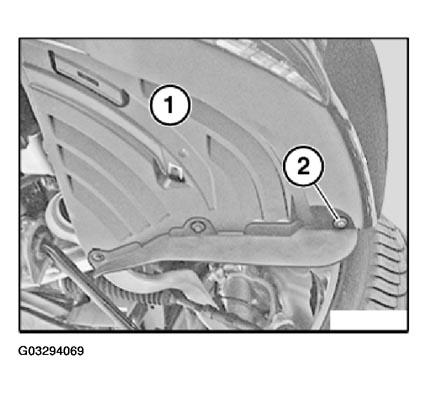

Fig 2: Fog Lamp Cover And Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Turn bulb holder (2) in direction of arrow and remove from fog lamp (3).

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA .

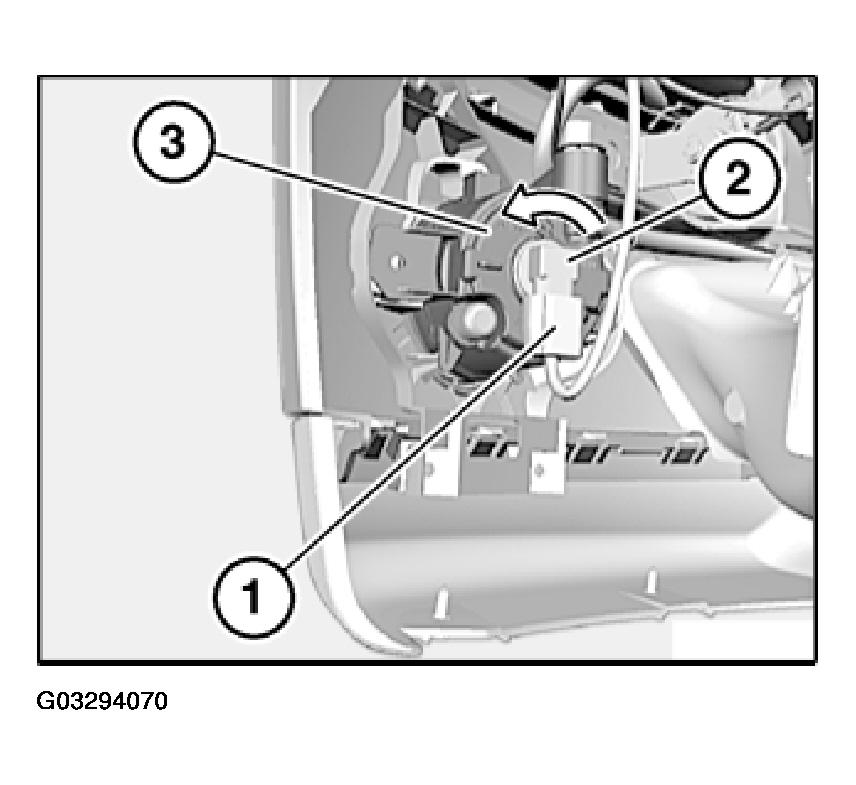

Fig 3: Fog Lamp, Plug Connection, Holder And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
