63 12 895 Replacing Drive For Left Adaptive Headlight

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.

Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Necessary Preliminary Tasks:

Remove left headlight. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (UP TO 03/2005) .

Release screws (1).

Remove drive for adaptive headlight (2) in direction of arrow from headlight (3).

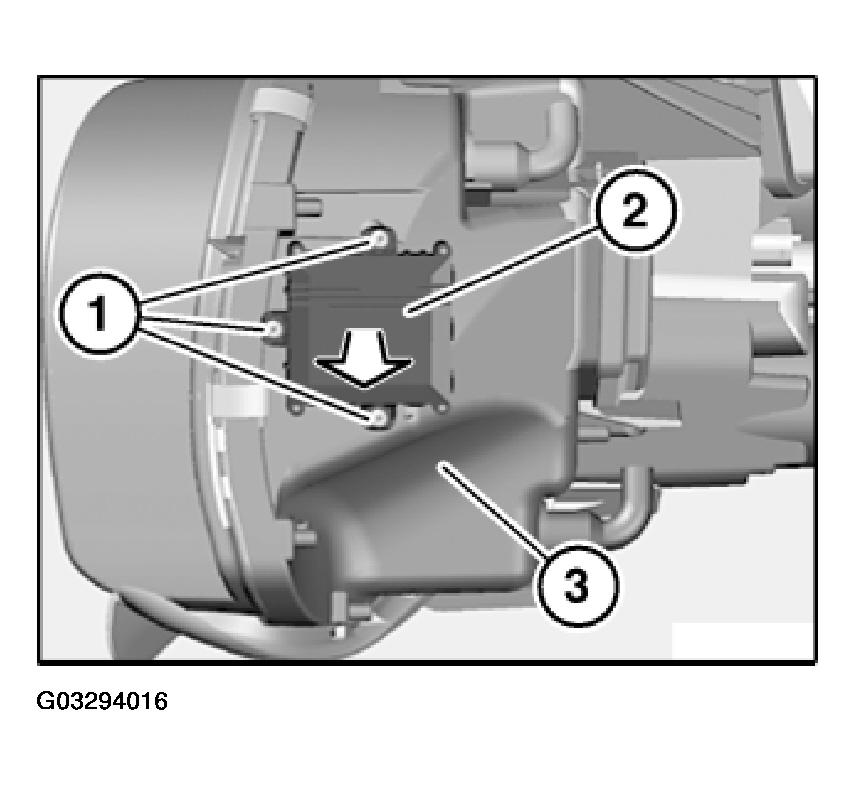

Fig 1: Mounting Screws, Adaptive Headlight Drive, Headlight And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .
