63 12 860 Replacing Control Unit For Left Xenon Headlight (From 03/2005)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.

Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Necessary Preliminary Tasks:

Remove headlight. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (FROM 03/2005) .

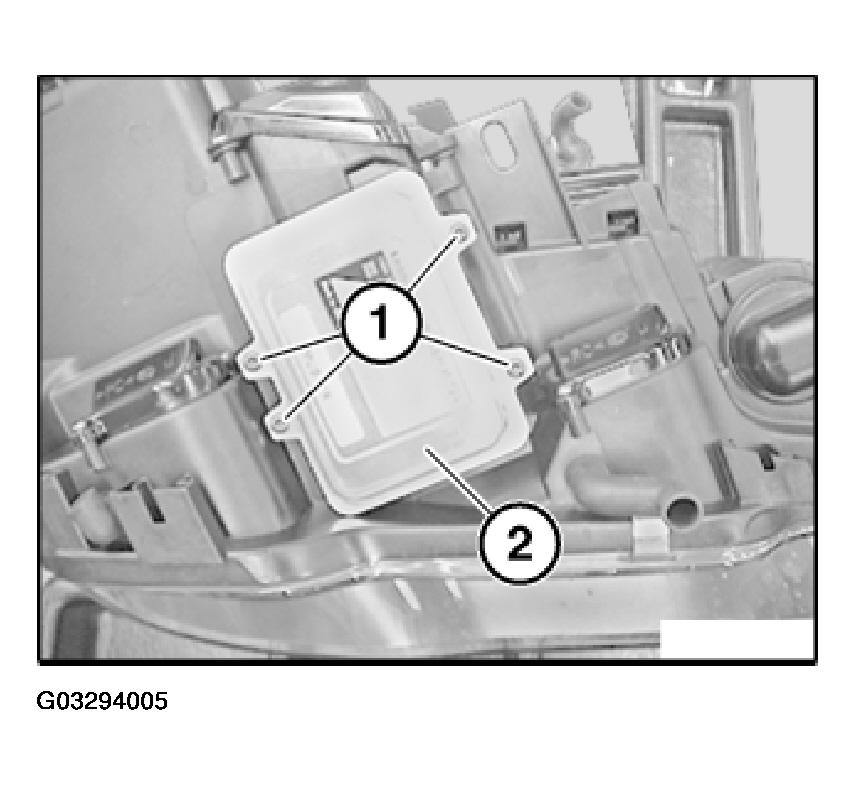

Release screws (1).

Remove control unit for xenon headlight (2) upwards from headlight.

Fig 1: Mounting Screws And Xenon Headlight Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

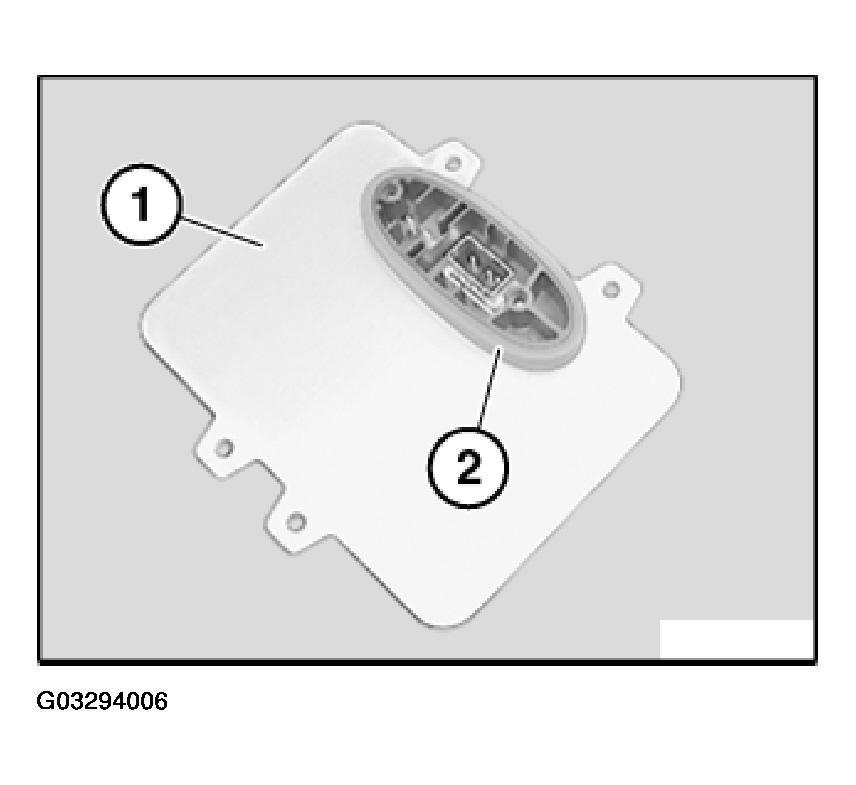

When installing control unit for xenon headlight (1), make sure sealing sleeve (2) is correctly seated.

Fig 2: Xenon Headlight Control Unit And Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
