62 11 280 Removing And Installing (Replacing) Instrument Cluster

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove wood trim on instrument panel on left. Refer to 51 45 360 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON LEFT .

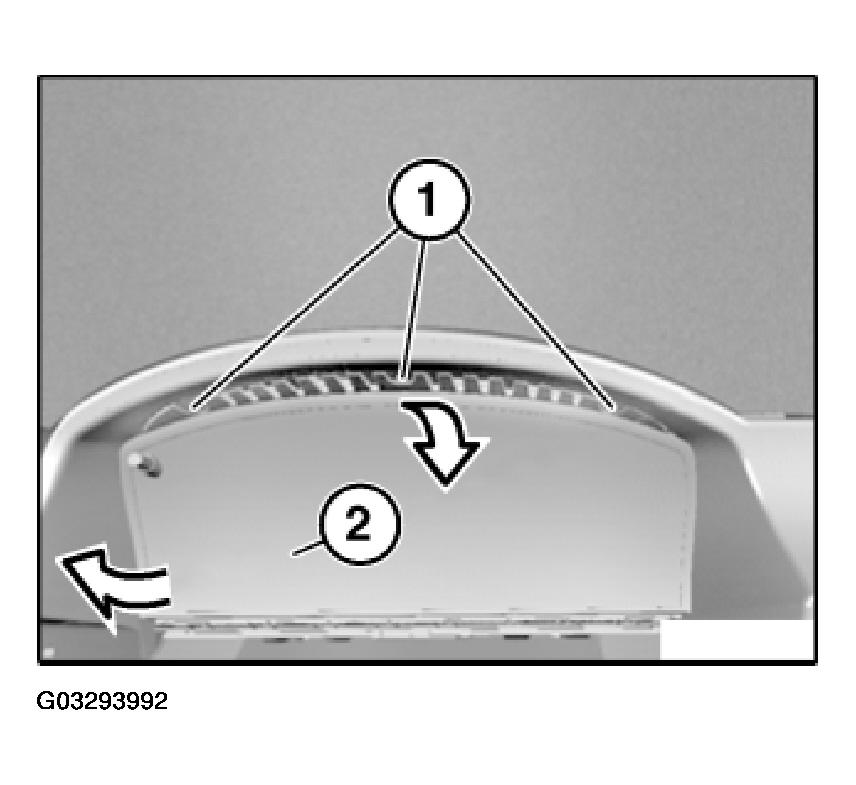

Release screws (1).

Fold instrument cluster (2) towards rear and remove in direction of arrow.

Disconnect plug connection behind.

Fig 1: Instrument Cluster, Screws And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

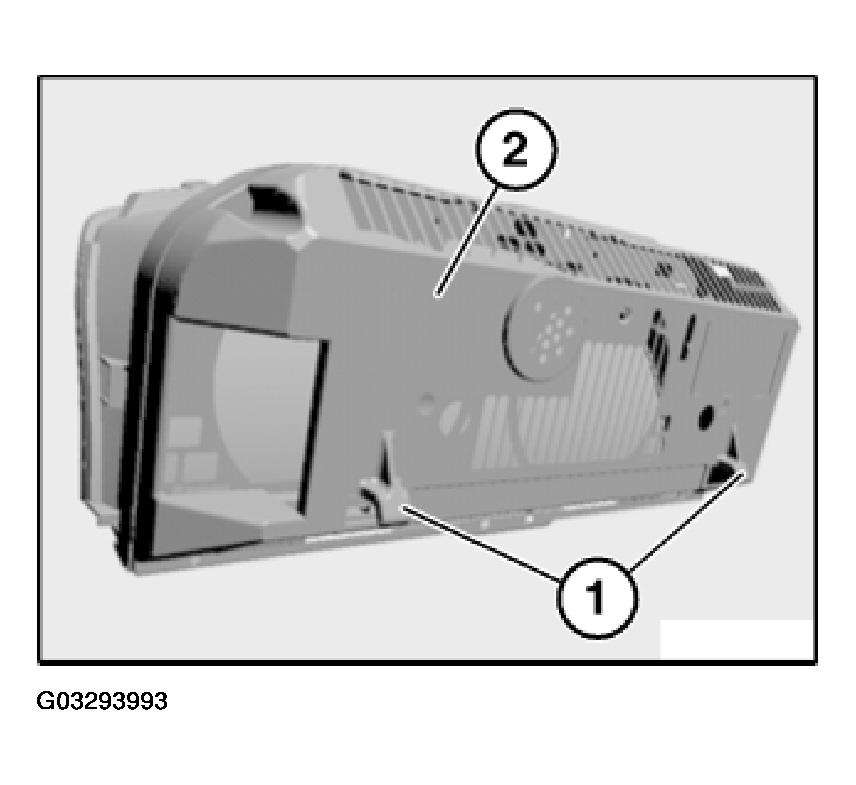

Retaining lugs (1) of instrument cluster (2) must be exactly seated in mountings of instrument panel.

Fig 2: Retaining Lugs And Instrument Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

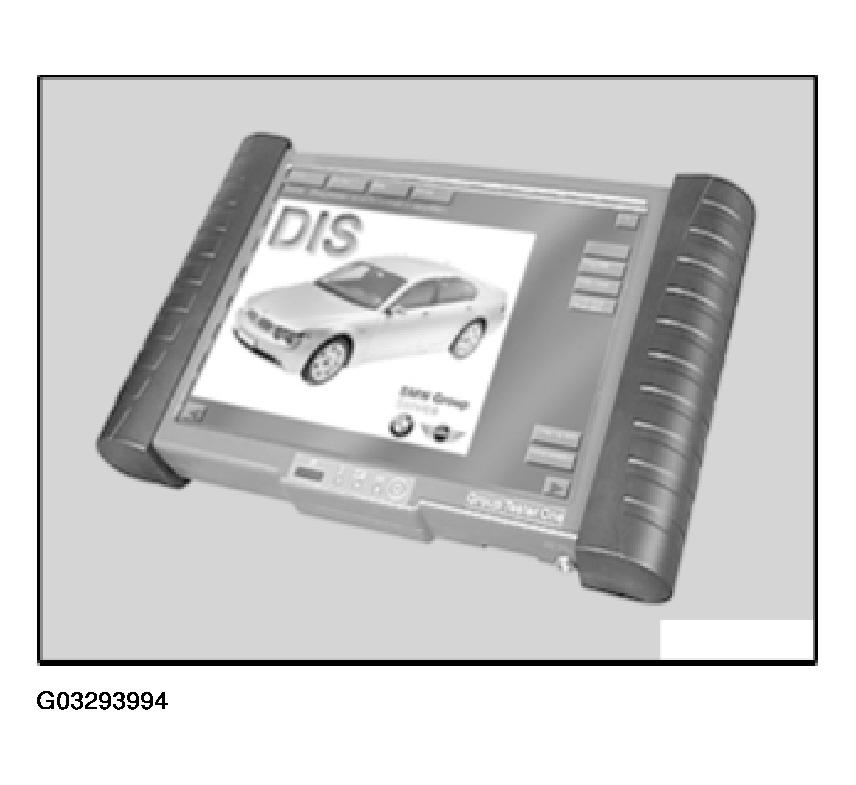

Fig 3: DIS Control Unit
Courtesy of BMW OF NORTH AMERICA, INC.
