61 67 083 Removing And Installing/Replacing Left Or Right High-Pressure Nozzle Of Headlight Cleaning System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS .

Special Tools Required:

13 3 010

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM

To prevent excess escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010.

Fig 1: Special Tool (13 3 010)

G03293975

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock H.P. line (3) and detach from H.P. nozzle (1).

Release screws (2).

Remove H.P. nozzle (1).

Fig 2: High-Pressure Nozzle, Line, Screws And Removal Direction

G03293976

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide guide (2) into opening (1).

New spray nozzles are already preset.

Carry out function check.

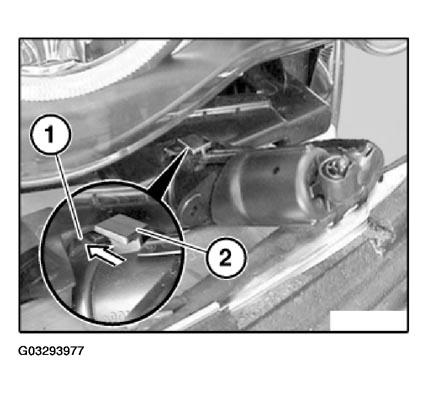

Fig 3: Guide, Opening And Installation Direction

G03293977

Courtesy of BMW OF NORTH AMERICA, INC.
