61 61 270 Removing And Installing Complete Wiper Console

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove cowl panel cover from windshield. Refer to 51 13 115 REMOVING AND INSTALLING/REPLACING COWL PANEL COVER .

Remove left fresh air duct. Refer to 64 31 055 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FRESH AIR DUCT (AUTOMATIC A/C BASIC) .

Unlock plug (1) and detach.

Release screws.

Remove wiper bracket (2).

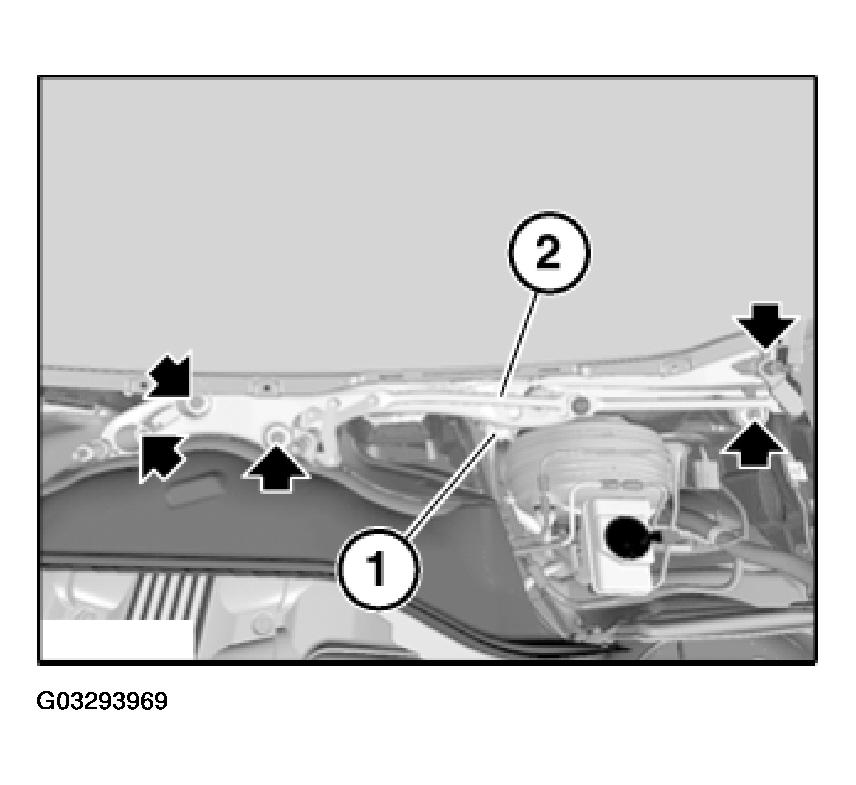

Fig 1: Plug, Wiper Bracket And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Wiper bracket (1) must rest by its own weight flat on all mounting points (2).

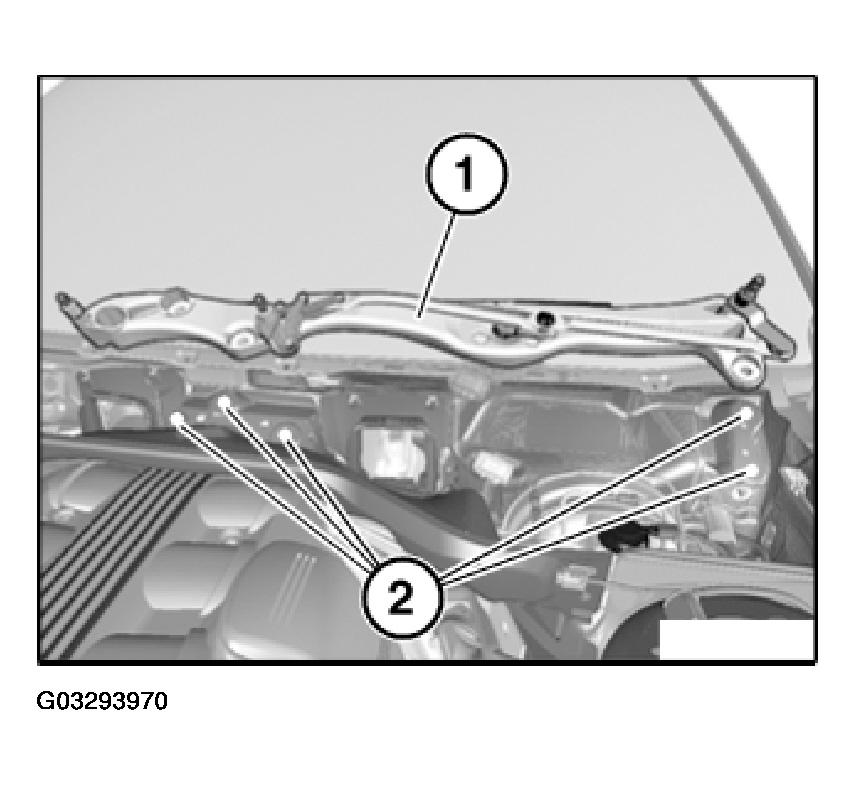

Fig 2: Wiper Bracket And Mounting Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install screws in sequence 1 to 3 and tighten hand-tight.

You should be able to install all screws without having to exert effort or twisting the wiper bracket. If the tolerance compensation in the sleeves is insufficient or the wiper bracket does not rest flat by its own weight alone on all the mounting points, the wiper bracket and the body must be immediately aligned (refer to next work step).

Tighten down screws in sequence 1 to 3.

Tightening torque, refer to 61 61 6AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

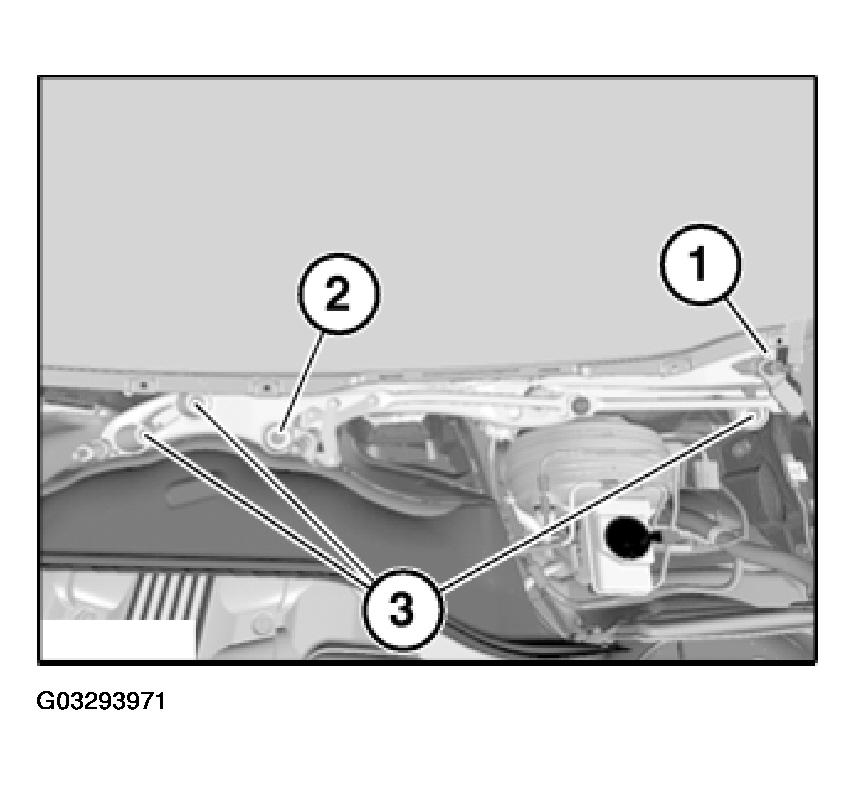

Fig 3: Screw Installtion Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Alignment Of Wiper Bracket/Body:

ALIGNMENT OF WIPER BRACKET/BODY

	Wiper bracket		Body
A =	10 +/- 0.3 mm	1	Front screwing point of front panel on support carrier
B =	617 +/- 0.4 mm	2	Ball head of engine hood damper
C =	720 +/- 0.4 mm	E =	1055 +/- 1 mm
D =	784 +/- 0.4 mm	F =	1125 +/- 1 mm
		G =	1164 +/- 1 mm
		H =	342 +/- 0.5 mm
		I =	411 +/- 0.5 mm

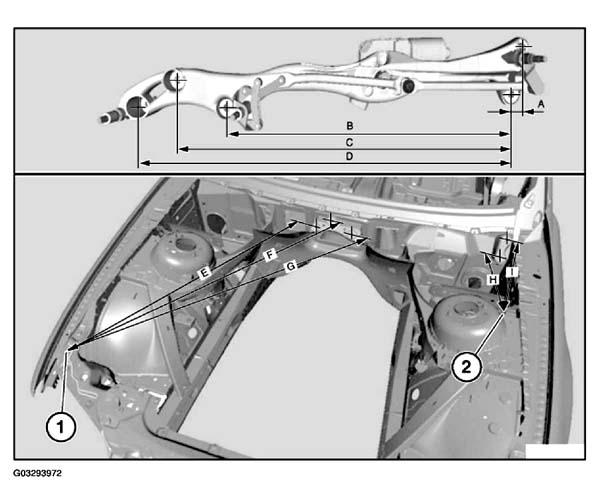

Fig 4: Wiper Bracket/Body Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.
