51 13 115 Removing And Installing/Replacing Cowl Panel Cover

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove both windscreen wiper arms. Refer to 61 61 101 REMOVING AND INSTALLING/REPLACING BOTH WINDSCREEN WIPER ARMS .

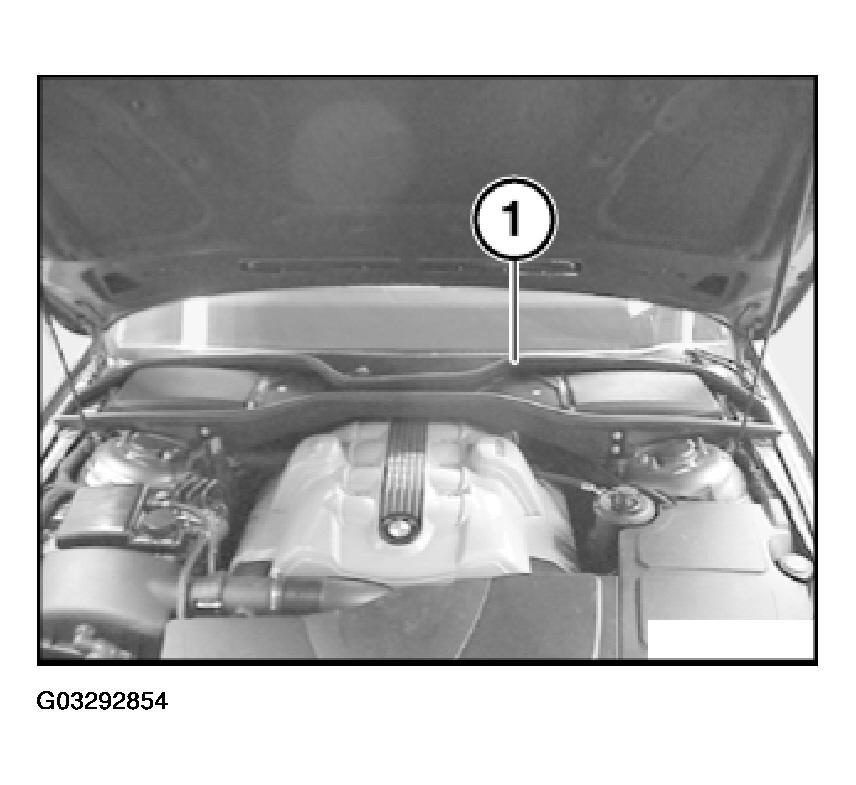

Pull off rubber seal (1).

Fig 1: View Of Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

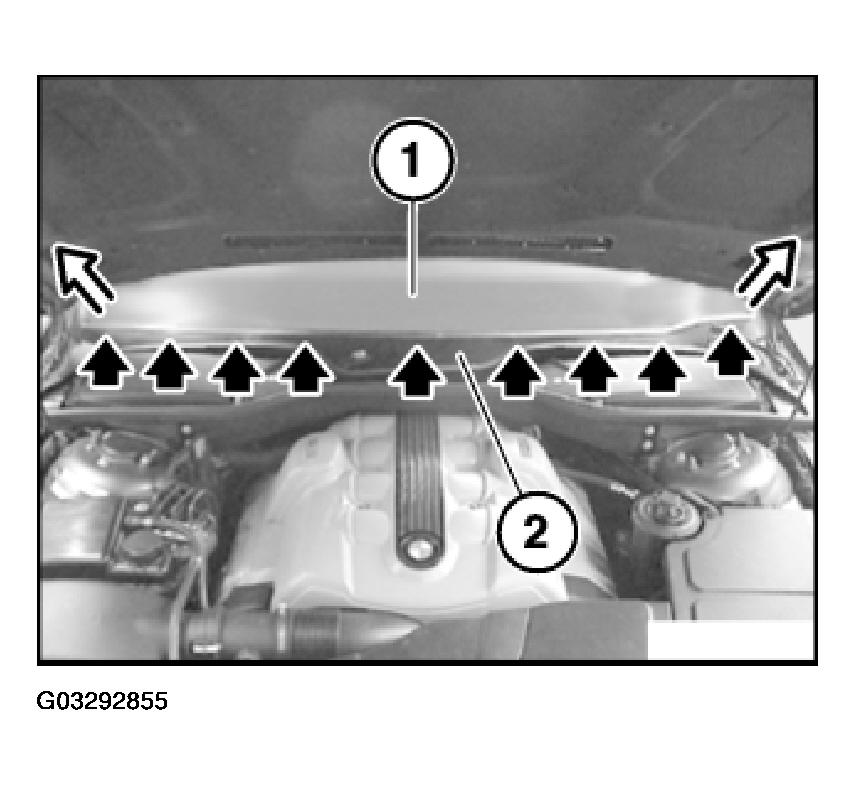

Pull off corners of cover from windscreen (1).

If necessary, release locks on cover (2).

Installation:

If necessary, remove butyl remnants from windscreen (1).

Fig 2: Locating Locks On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

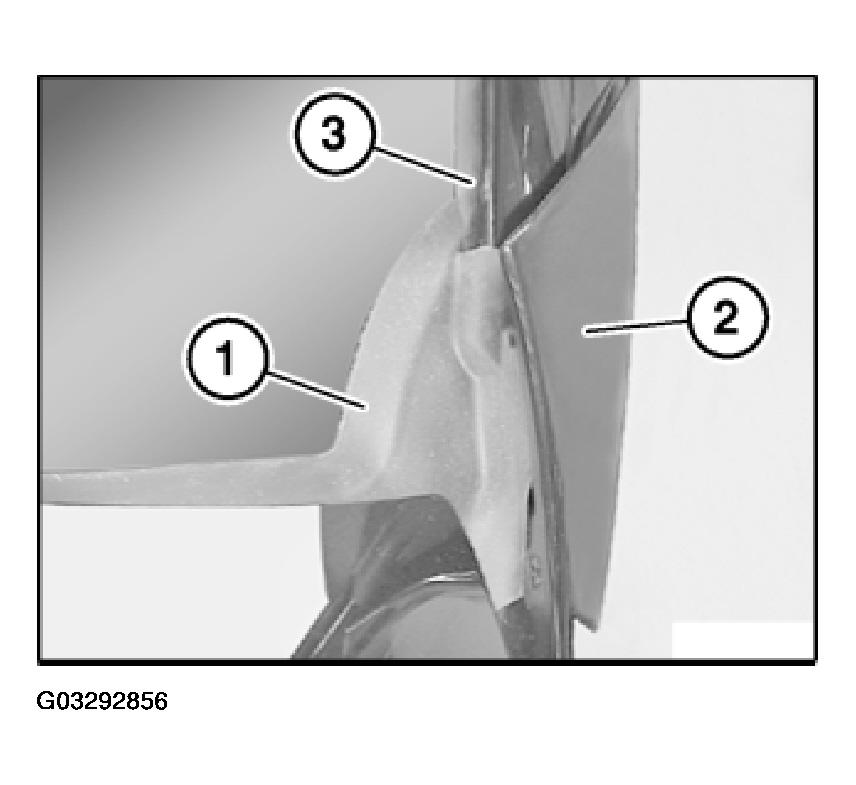

Make sure cover (1) is correctly seated on side panel (2) and seal (3).

Fig 3: Installing Cover On Side Panel And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

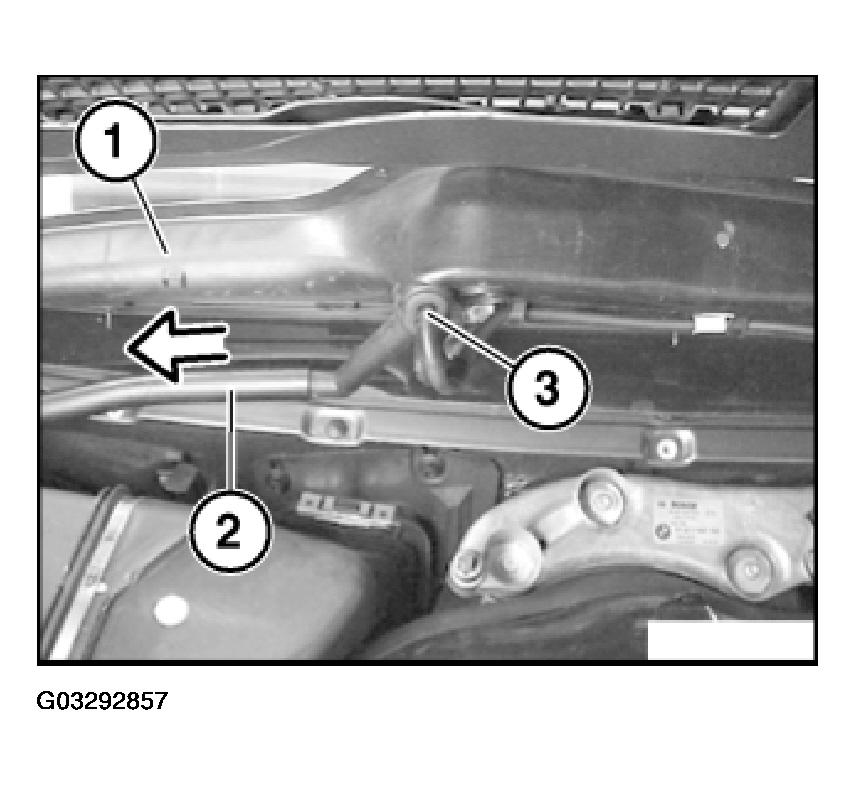

Lift cover (1) upwards slightly.

Pull tube (2) out of cover (1).

Remove line (3) together with rubber seal from cover (1).

Fig 4: Removing Line With Rubber Seal From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

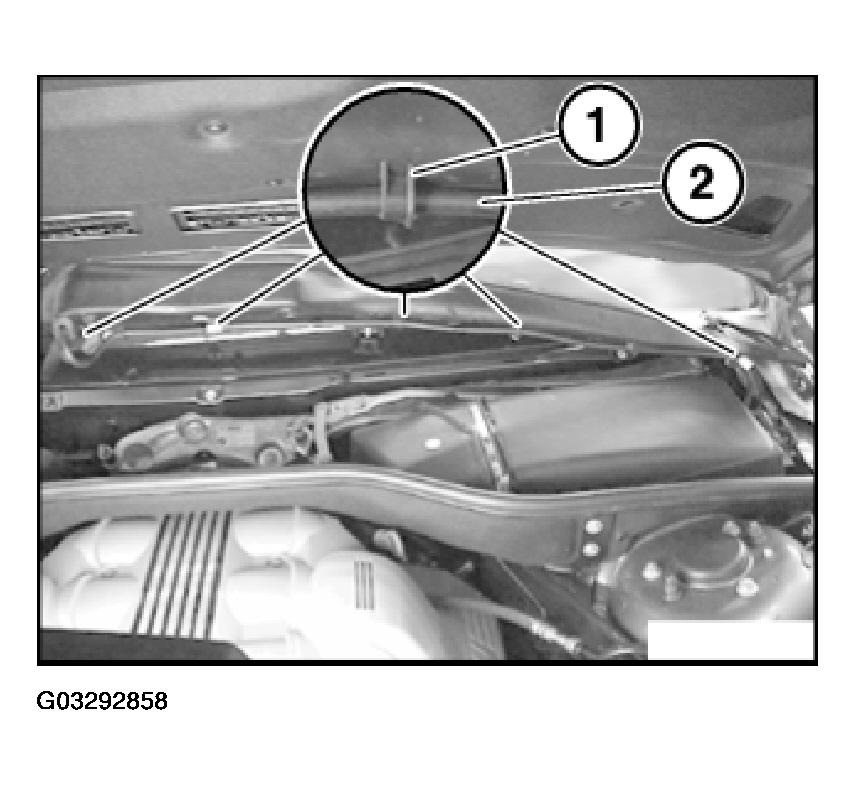

Unclip line (2) from holders (1).

Removing cowl panel cover

Fig 5: Unclipping Line From Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

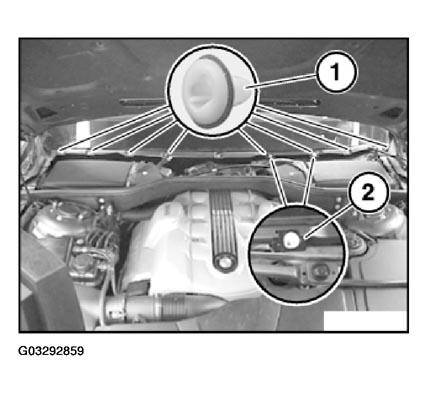

If necessary, replace defective grommets (1).

Check holder (2) for correct seating.

Fig 6: View Of Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

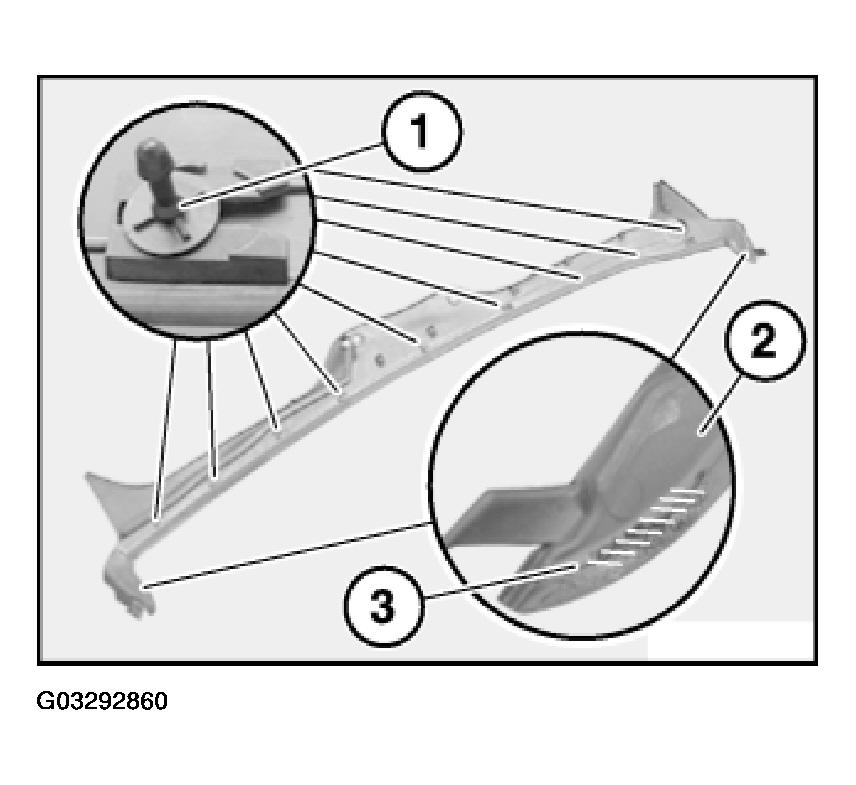

Clips (1) must not be missing or damaged.

Apply some butyl in corners of cover (2) in area (3):

Width 3 mm.
Length approx. 6 cm.

Remove excess butyl from windscreen.

Fig 7: Locating Application Areas On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
