61 31 204 Replacing Switch Combination For Seat Adjustment (Comfort Seat In Rear Compartment)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Remove wood trim on rear center armrest. Refer to 52 25 070 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON REAR CENTER ARMREST .

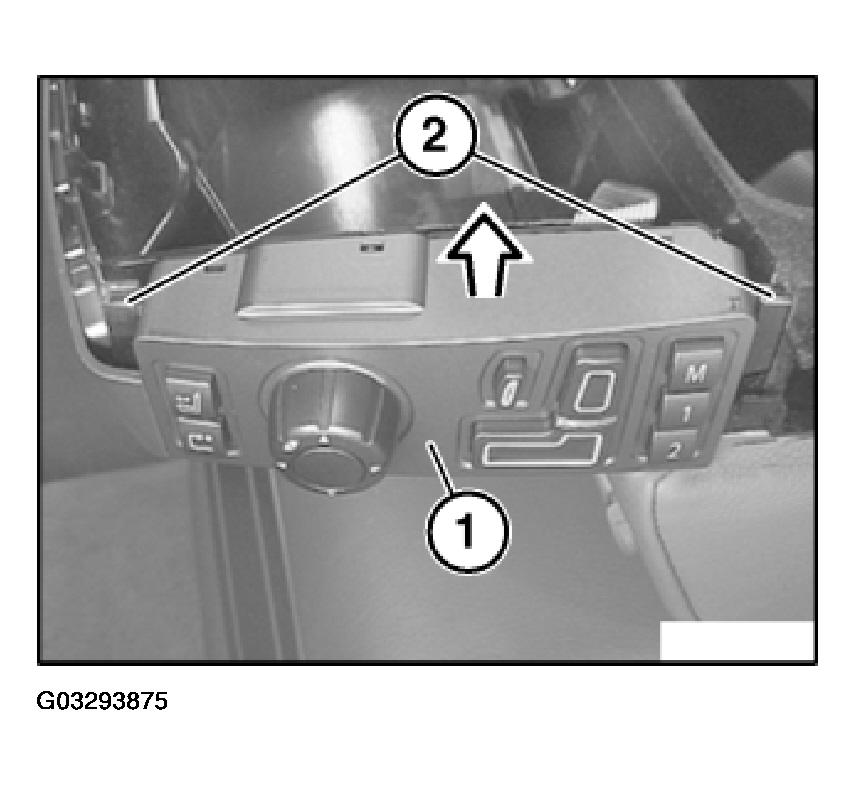

Lift switch combination for seat adjustment (1) in direction of arrow out of side guides (2) and remove.
Installation:
Make sure switch combination for seat adjustment (1) is correctly seated in side guides (2).
