61 31 019 Removing And Installing (Replacing) Ignition Starter Switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove audio system controller. Refer to 65 12 200 REMOVING AND INSTALLING (REPLACING) AUDIO SYSTEM CONTROLLER .
Remove operator unit for heater/air conditioner. Refer to 64 11 377 REMOVING AND INSTALLING (REPLACING) CONTROL PANEL FOR HEATER - A/C SYSTEM .

Release screws (1) of ignition starter switch (2).

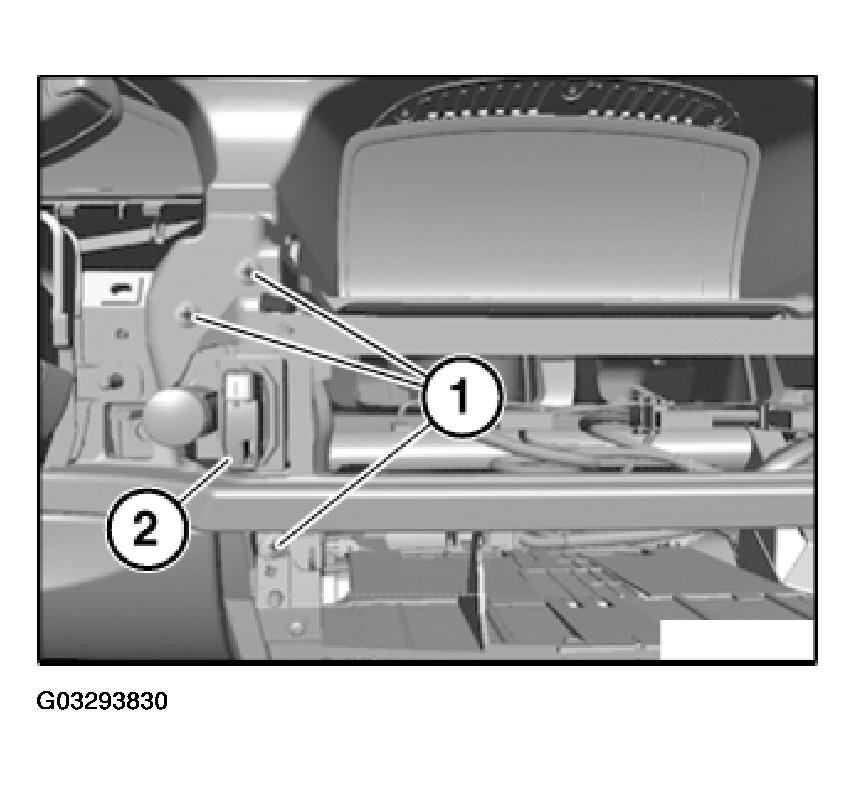

Fig 1: Screws And Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Slide ignition starter switch (1) forwards and feed out in direction of arrow.

Disconnect plug connection (2) and remove ignition starter switch (1).

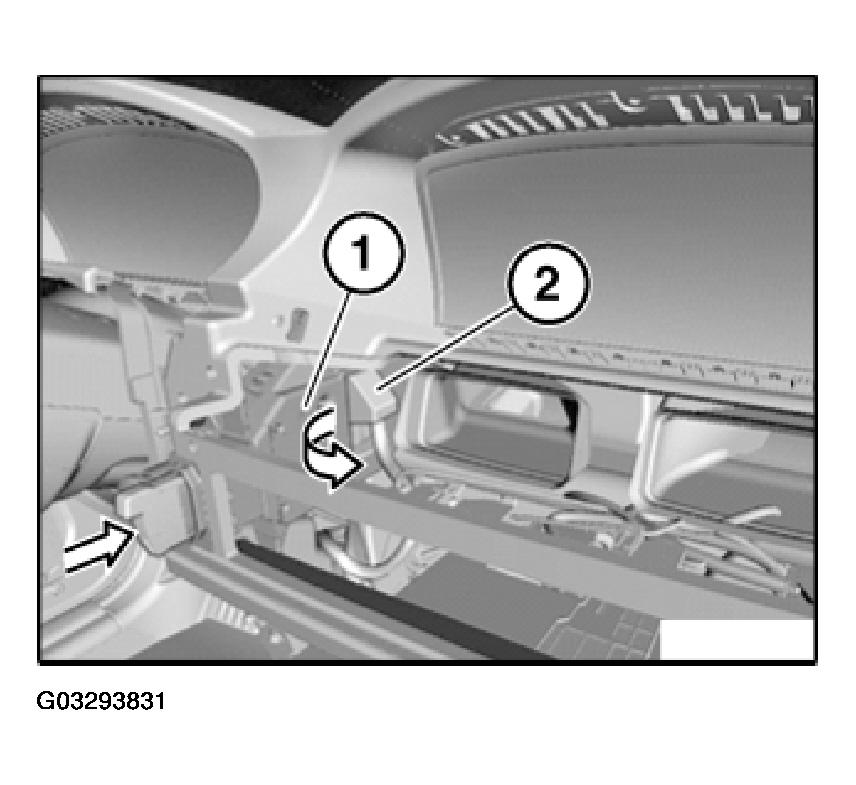

Fig 2: Ignition Starter Switch, Plug Connection And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".
Version with independent heating:

Initialize all independent heating remote controls. Refer to 64 12... INITIALIZING INDEPENDENT HEATING REMOTE CONTROL .

Fig 3: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
