61 12 002 Replacing Positive Battery Cable (From Battery To Luggage Compartment Connector)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe safety instructions for handling vehicle battery. Refer to 61 00... SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY .

Necessary Preliminary Tasks:

Remove right luggage compartment wheel arch trim. Refer to 51 47 161 REMOVING AND INSTALLING/REPLACING REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .
Remove battery cover. Refer to 61 21... REMOVING AND INSTALLING/REPLACING BATTERY COVER .
Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove spare wheel. See 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL

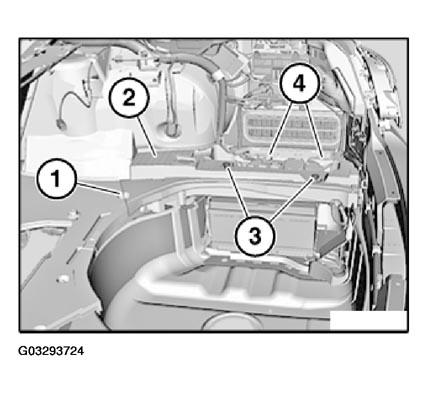

Release plastic nuts (1).

Release expansion rivet (3).

Lever floor panel at rear right (2) out of catch (4).

Fig 1: Clips, Plastic Nuts, Catch And Luggage Compartment Floor Panel

Courtesy of BMW OF NORTH AMERICA, INC.

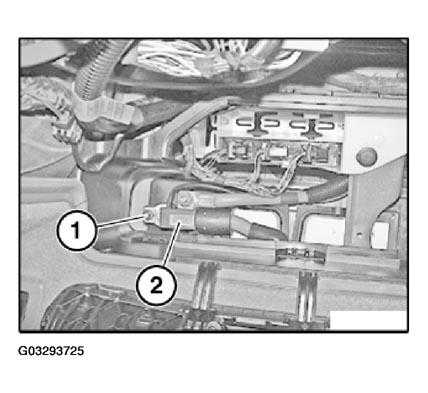

Release nut (1) of safety battery terminal (2).

Tightening torque, refer to 61 21 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

IMPORTANT: Do not under any circumstances pull/lever safety battery terminal off by force.

Detach safety battery terminal (2) towards top, lay to one side and secure.

Fig 2: Safety Battery Terminal And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

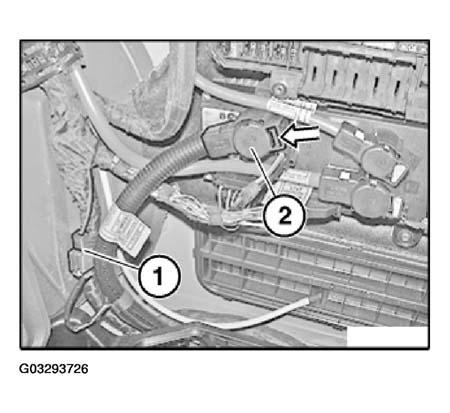

Disconnect plug-in contact (1).

Unlock plug (2).

Disconnect cable from power module.

Fig 3: Plug-In Contact, Plug And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

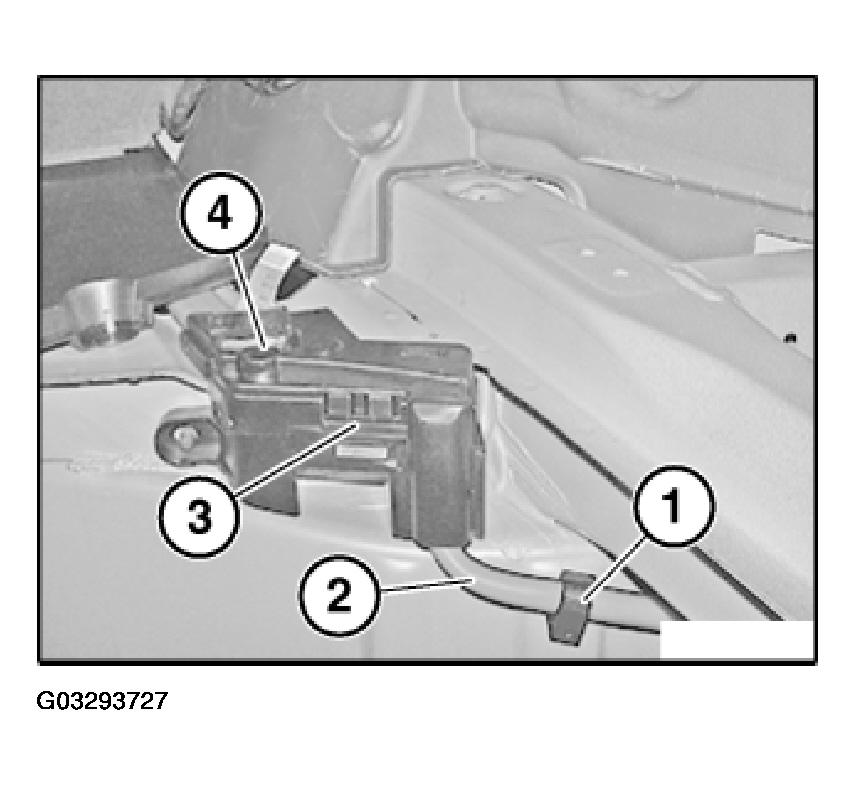

Unlock connector cover (4) at holder (3) and fold back.

Unclip battery positive lead (2) from cable guides (1).

Fig 4: Connector Cover, Holder, Battery Positive Lead And Cable Guides

Courtesy of BMW OF NORTH AMERICA, INC.

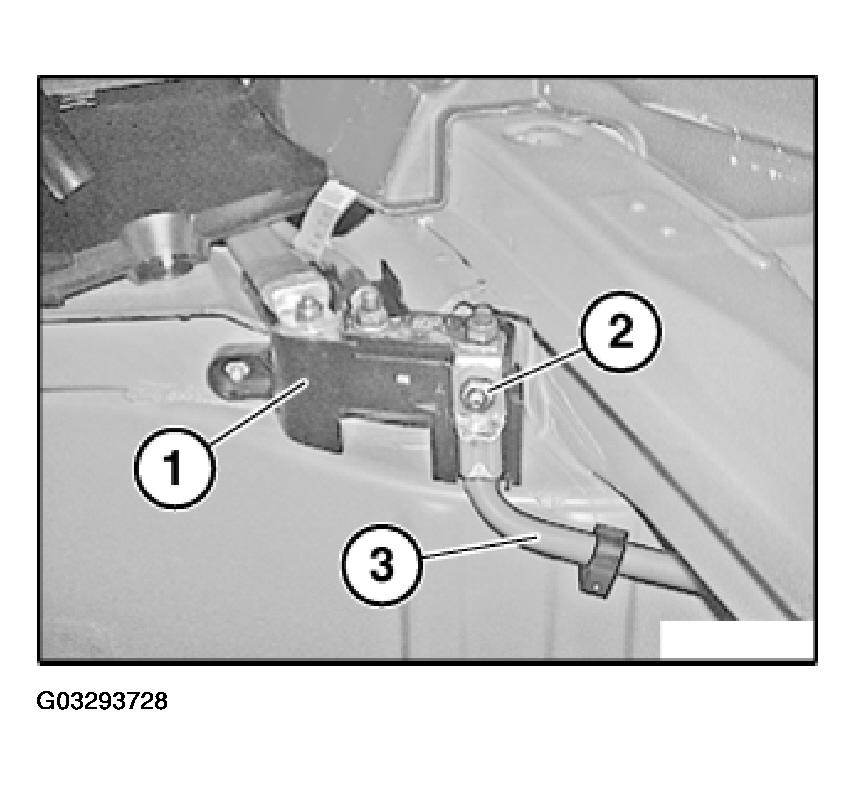

Release screw (2).

Tightening torque, refer to 61 12 3AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Unclip cable lug mounting from positive battery cable (3) and remove.

WARNING: Risk of short circuits!

When installing, ensure:

Correct seating of cable lug mounting (1) on positive battery cable (3).
Correct screw connection.
Tightening torque, refer to 61 21 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Fig 5: Removing Cable Lug Mounting From Positive Battery Cable
Courtesy of BMW OF NORTH AMERICA, INC.
