54 12 270 Removing And Installing/Replacing Adjuster For Glass Slide/Tilt Sunroof Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Remove glass sunroof lid. Refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDE/TILT SUNROOF LID .

Close glass sunroof lid (zero position).

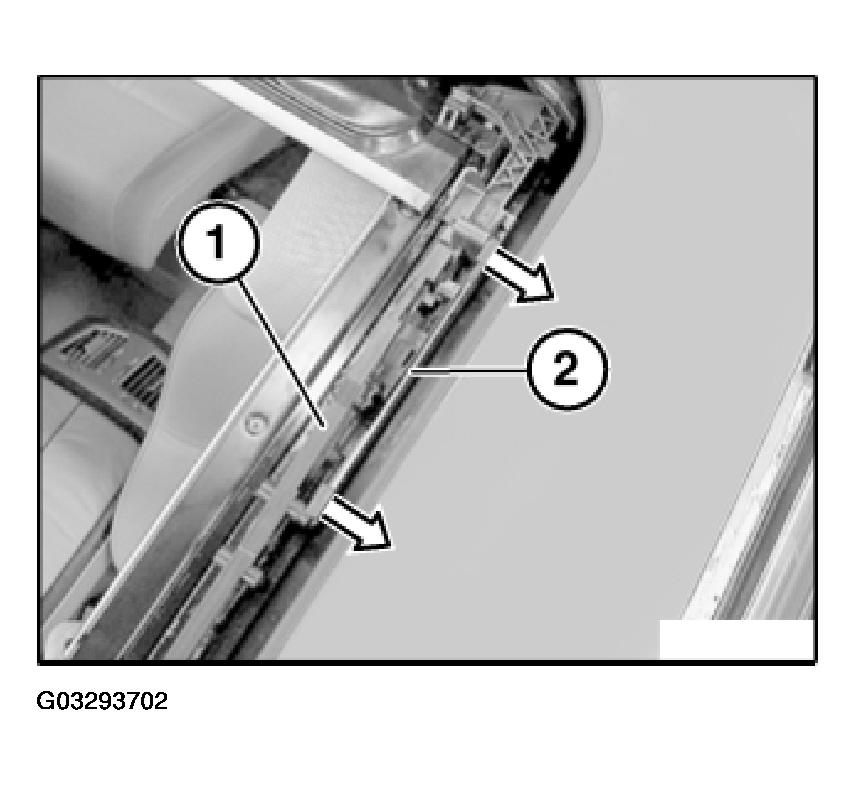

Unhook lever (2) from adjuster (1).

Fig 1: Lever, Adjuster And Removal Direction

G03293702

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

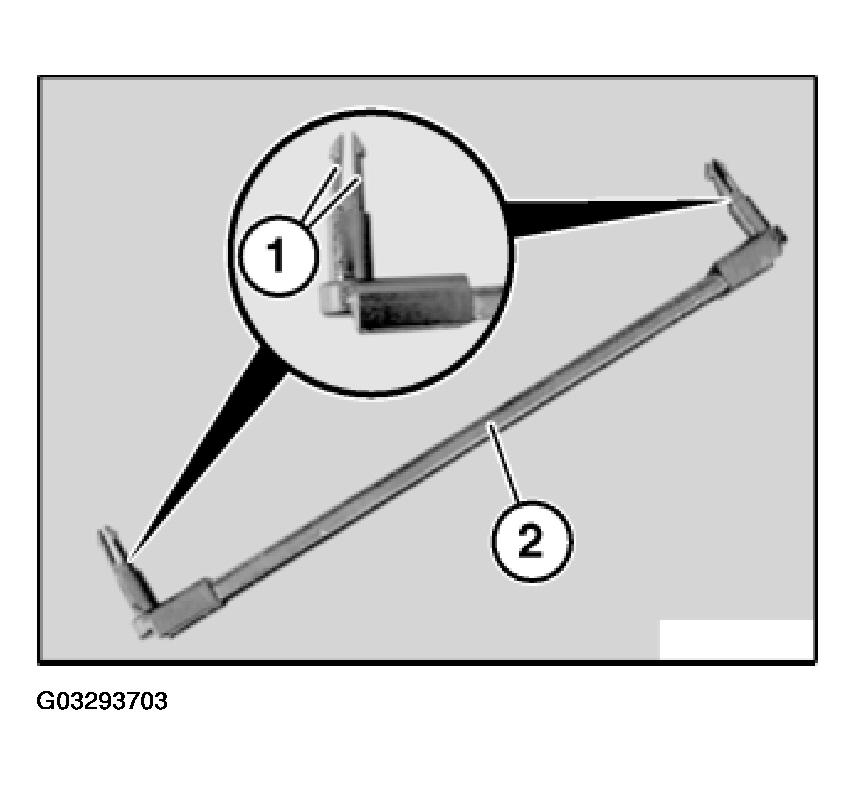

Locking catches (1) of lever (2) must not be damaged.

Fig 2: Locking Catches And Lever

G03293703

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

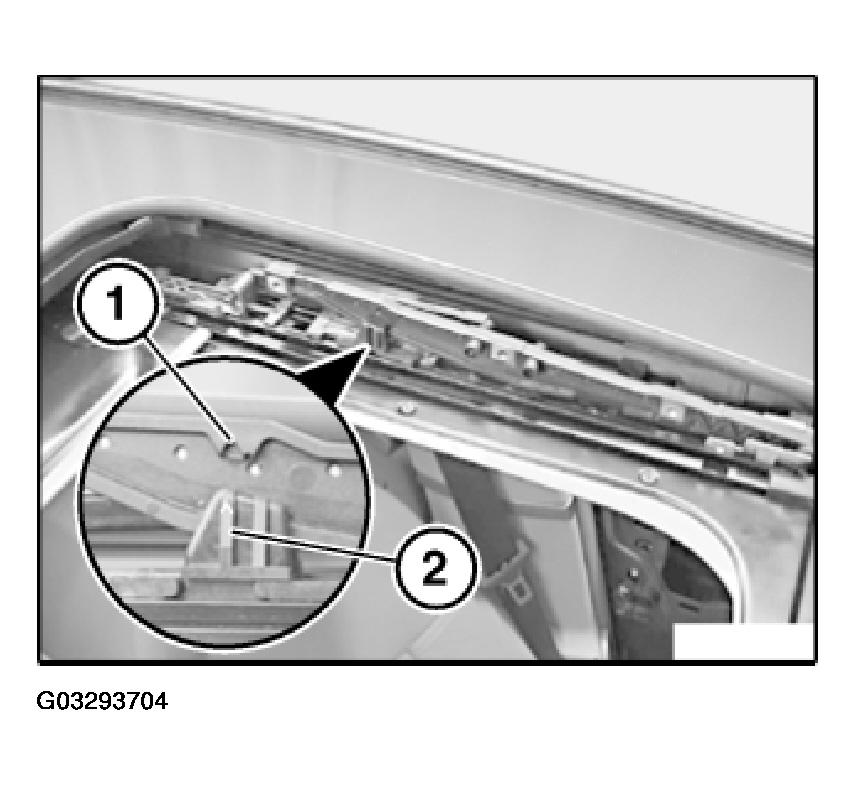

When glass sunroof is in zero position, marking (1) on adjuster must be positioned over marking (2) on slider.

If necessary, move adjuster or slider.

Fig 3: Adjuster And Slider Markings

G03293704

Courtesy of BMW OF NORTH AMERICA, INC.

Move glass sunroof lid into "lift position".

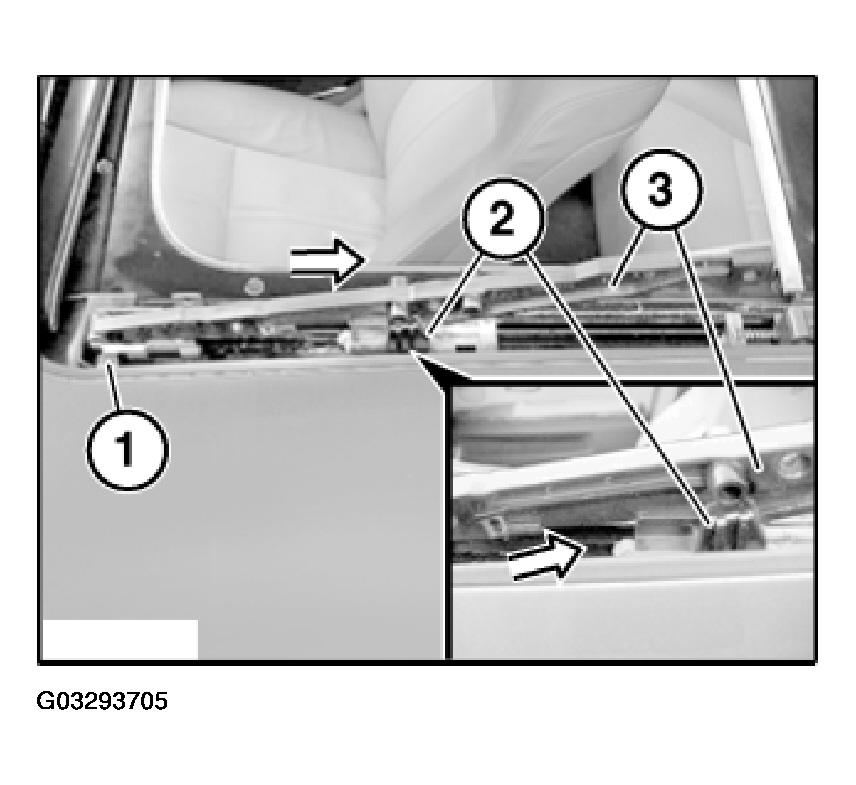

Pull adjuster (3) and carriage (1) together towards rear until adjuster (3) can be unhooked from slider (2).

Grip slider (2) in so doing.

Fig 4: Adjuster, Slider, Carriage And Removal Direction

G03293705

Courtesy of BMW OF NORTH AMERICA, INC.

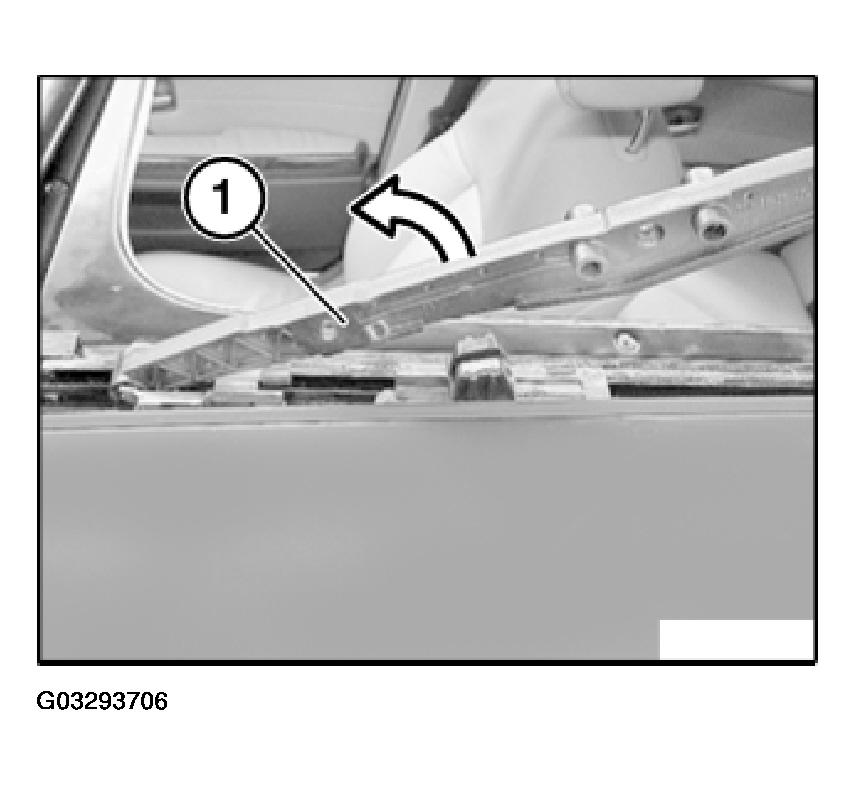

Twist adjuster (1) upwards.

Fig 5: Adjuster Upwards And Alignment Direction

G03293706

Courtesy of BMW OF NORTH AMERICA, INC.

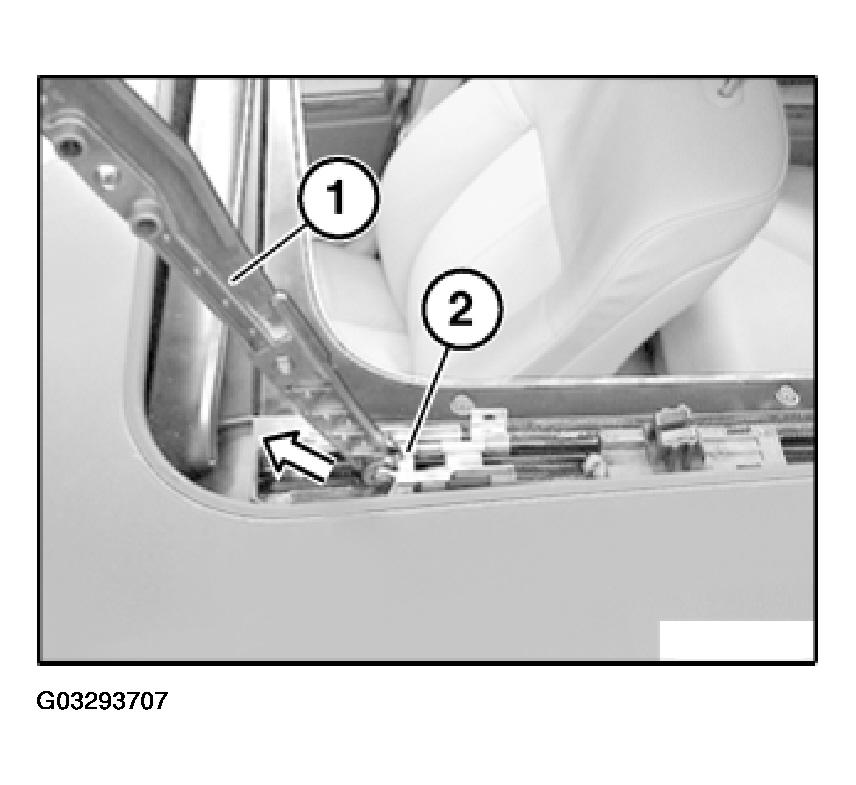

Unhook adjuster (1) from carriage (2).

Fig 6: Adjuster, Carriage And Removal Direction

G03293707

Courtesy of BMW OF NORTH AMERICA, INC.
