54 12 138 Removing And Installing/Replacing Rain Channel For Glass Slide/Tilt Sunroof
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove complete glass slide/tilt sunroof (frame). Refer to 54 12 211 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF (FRAME) .

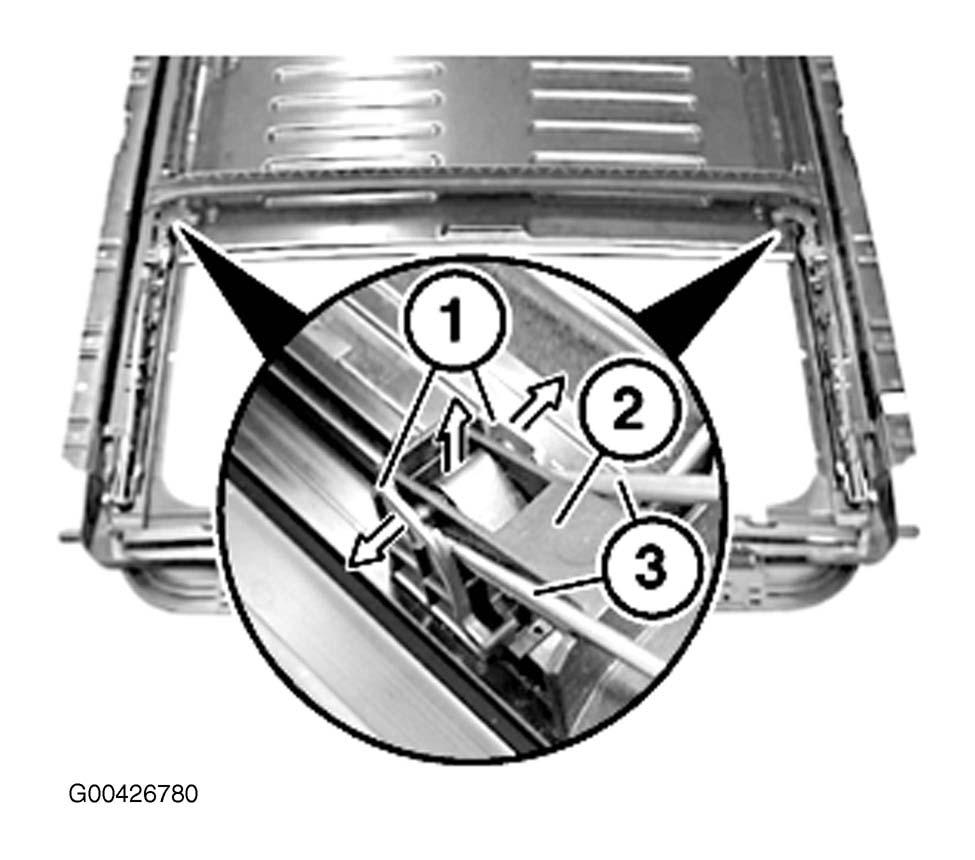

Carefully unlock holders (1) with screwdriver (3) on left/right and unclip setting lever (2) of rain channel towards top.
Remove rain channel.
Installation:
Make sure setting lever (2) is correctly engaged in holders (1).
Check function.
