54 12 211 Removing And Installing Complete Glass Slide/Tilt Sunroof (Frame)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove roofliner. Refer to 51 44 011 REMOVING AND INSTALLING/REPLACING HEADLINER (WITH SLIDE/TILT SUNROOF) .

NOTE:

Move front seat back/down as far as possible.
Remove glass sunroof with aid of a second person.

E66 With Rear Air Conditioning Only:

Remove both air ducts.

Fig 1: Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Detach water drain hoses (4).
Unlock and disconnect plug (2).
Disconnect cable (5) from sunroof (6).
Release screws (1) (during installation: fit shims). Tightening torque, refer to 54 12 6AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .
Release screws (3) on left/right and carefully lower sunroof (6). Tightening torque, refer to 54 12 6AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

IMPORTANT: Do not damage any surrounding parts when removing sunroof (6).

Remove sunroof (6) completely (through rear door).

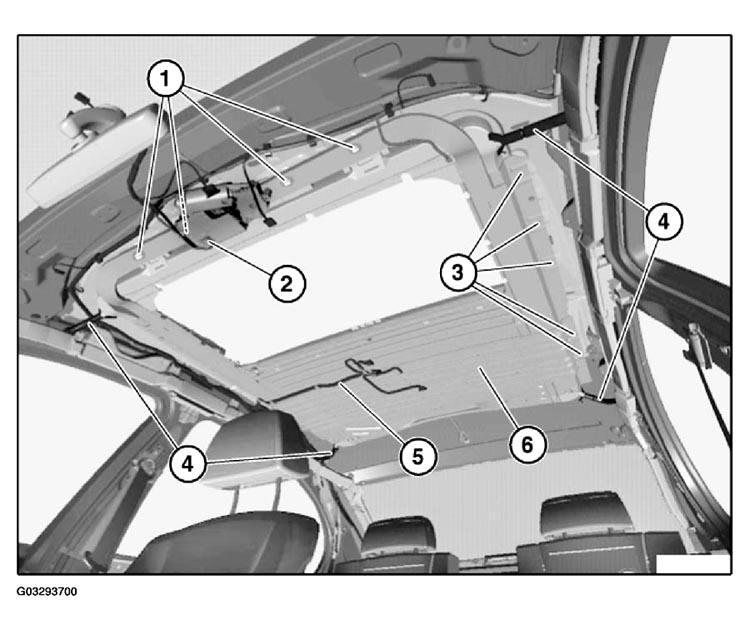

Fig 2: Screws, Cable, Plug, Drain Hoses And Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Due to robot assembly, all screws (1) are secured with washers (2) in production. These washers (2) are not absolutely necessary during manual assembly. They are however useful for positioning the frame on the body with 4 screws.

If the standard screws can no longer grip, use "repair screws" (have larger threads).

IMPORTANT: Do not crush any cables when fitting the glass slide/tilt sunroof.

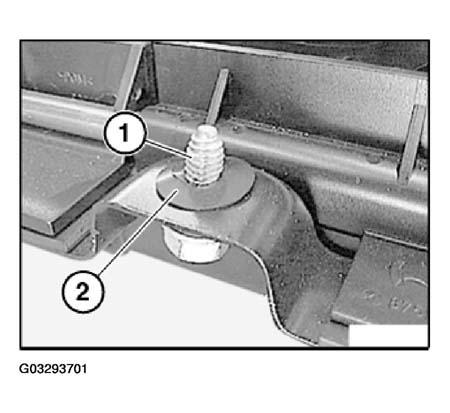

Fig 3: Screws And Washers

Courtesy of BMW OF NORTH AMERICA, INC.
