54 12 136 Removing And Installing/Replacing Headliner For Glass Slide/Tilt Sunroof Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If headliner is difficult to move, apply a light coat of Renax GL1 (manufactured by Fuchs) to guide duct.

Remove glass sunroof lid. Refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDE/TILT SUNROOF LID .

Slowly pull headliner (floating) fully towards front.

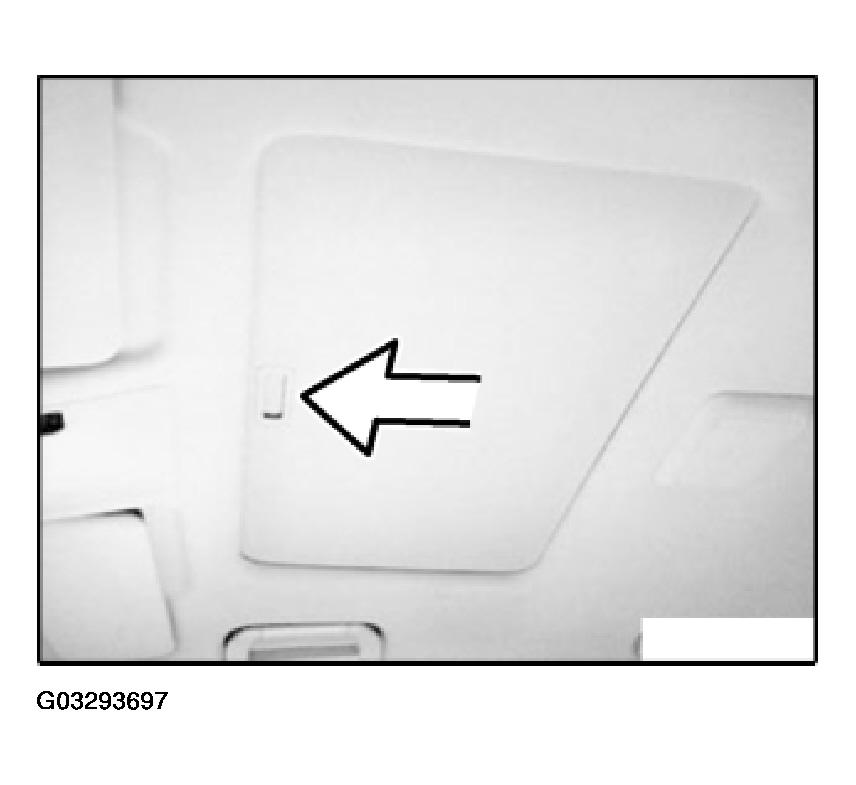

Fig 1: Aligning Headliner (Floating) Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Slowly slide spring slider (2) towards rear.

NOTE: Make sure all parts are clean. If necessary, wear gloves. Remove headliner (3) towards top.

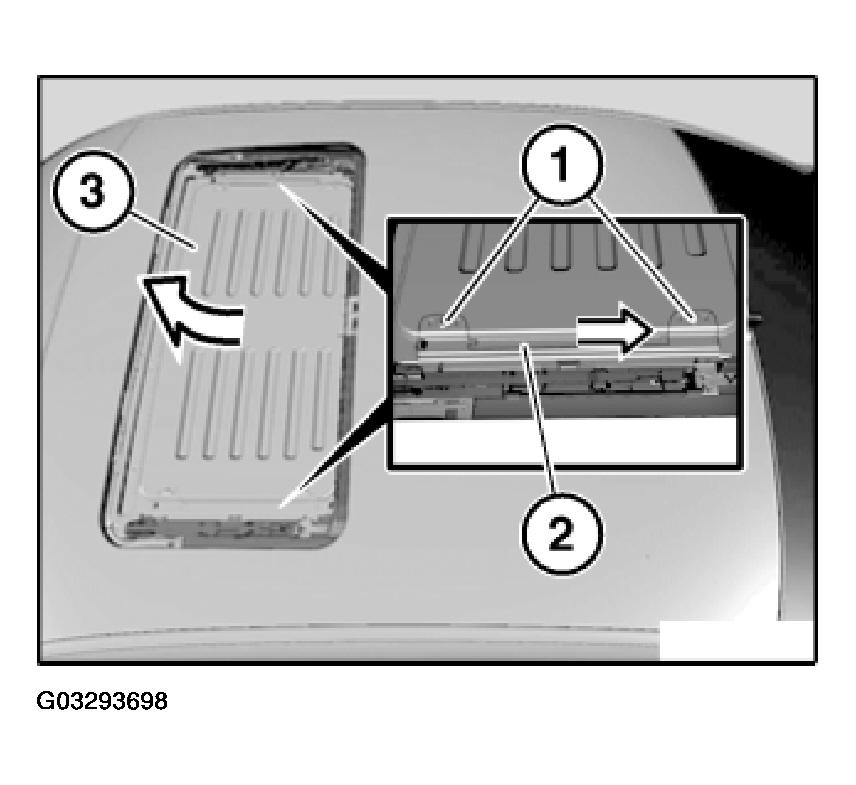

Fig 2: Spring Slider, Screws, Headliner And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.
