54 12 ... Replacing Complete Seal For Glass Slide/Tilt Sunroof (Frame)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove complete glass slide/tilt sunroof (frame). Refer to 54 12 211 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF (FRAME) .
Mark one end point (marker pen on outside).

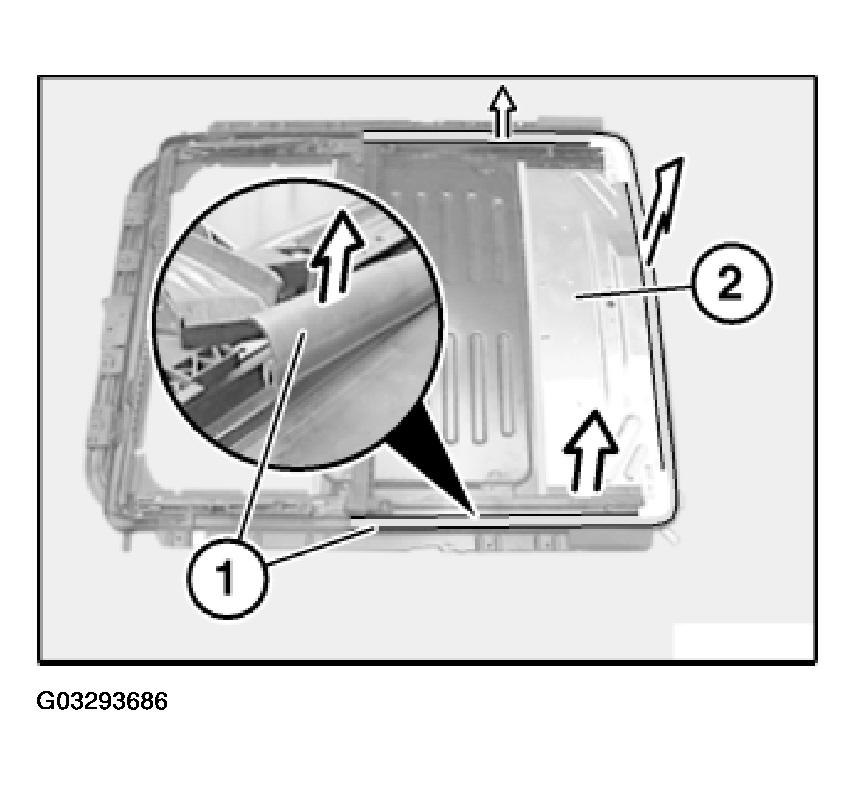

Detach seal (1) from sunroof (2).
Installation:
Start fitting new seal on marking.
Position seal gently only and align end points parallel to each other.
Press seal (1) firmly on frame (2) and ensure correct seating.
