52 25 532 Replacing Lower Armrest Section For Rear Seat Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Drive through pin (1) to center.

Fold up upper armrest section (4) and remove towards top.

Installation:

Feed spring (2) into opening.

Unclip wiring harness (3).

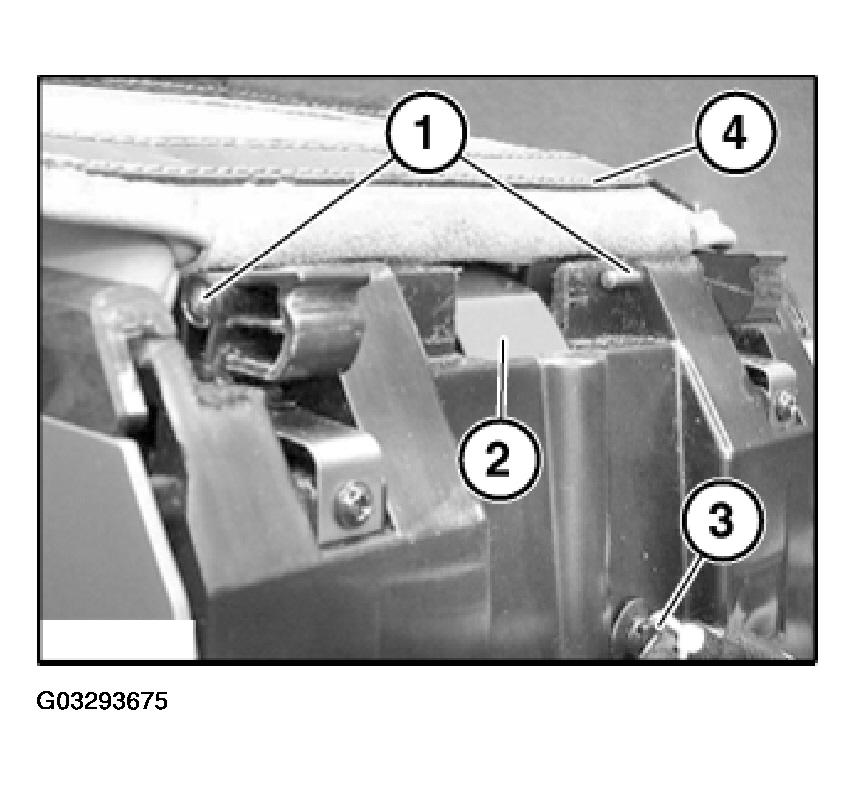

Fig 1: Upper Armrest Section, Pin, Wiring Harness And Spring
G03293675Courtesy of BMW OF NORTH AMERICA, INC.

Release retainer (1).

Remove shaft (2).

Bend open holder (3) on left and right and remove.

Installation:

When installing holder (3), do not damage lower armrest section.

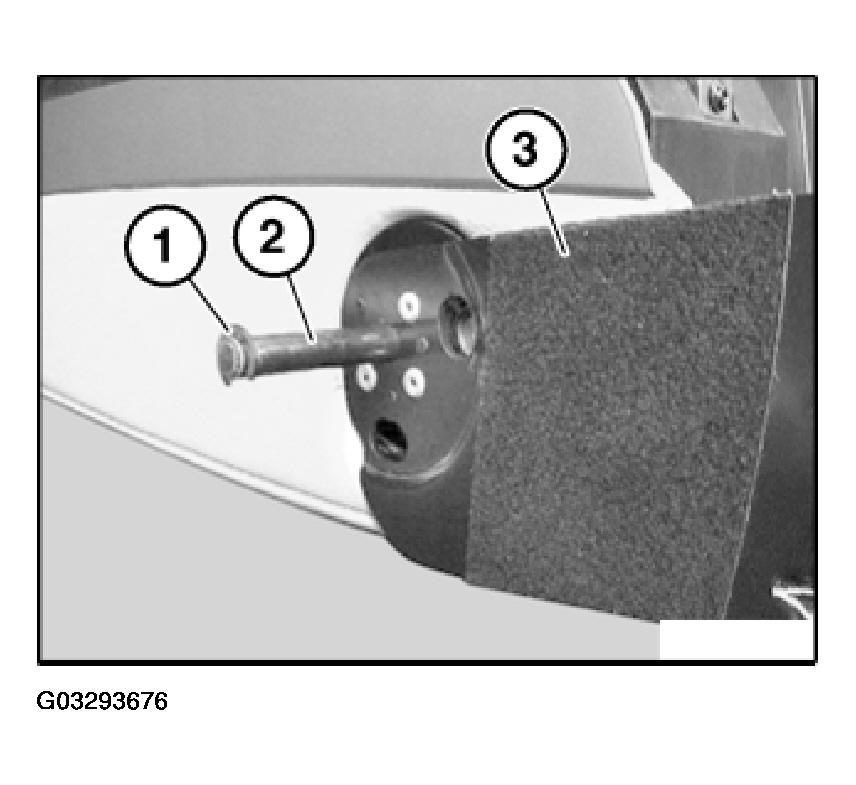

Fig 2: Shaft, Holder And Retainer
G03293676Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim (1) with assembly wedge (2) and remove.

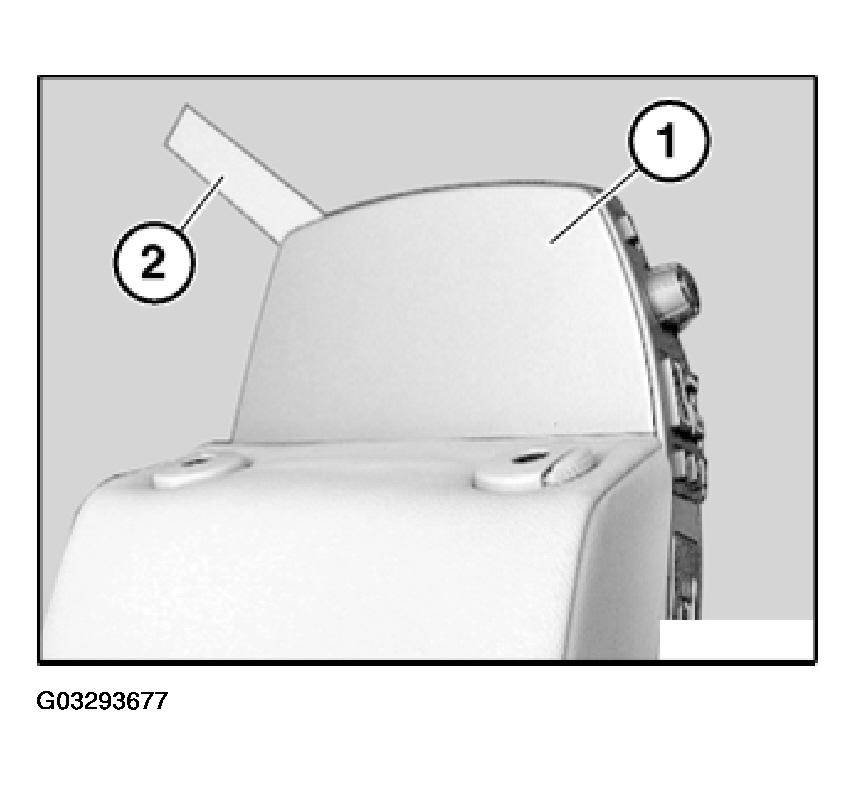

Fig 3: Trim And Assembly Wedge
G03293677Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Remove control unit in rear center armrest. Refer to 61 31 156 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT IN CENTER ARMREST AT REAR .

Release screws (1).

Unclip switch unit (2) on left and right with assembly wedge (4) and remove.

Slide side trim (3) on left and right in direction of arrow as far as it will go and remove.

Unclip front trim (5) with assembly wedge (4) and remove towards front.

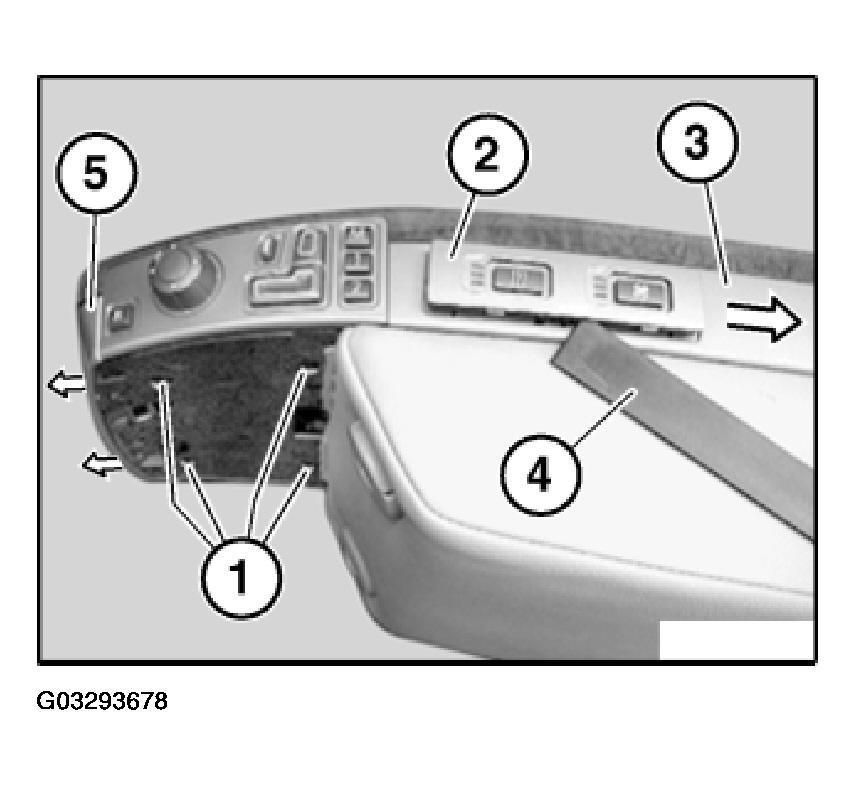

Fig 4: Switch Unit, Screws, Assembly Wedge, Side Trim, Front Trim And Removal Directions
G03293678Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Remove trim (2).

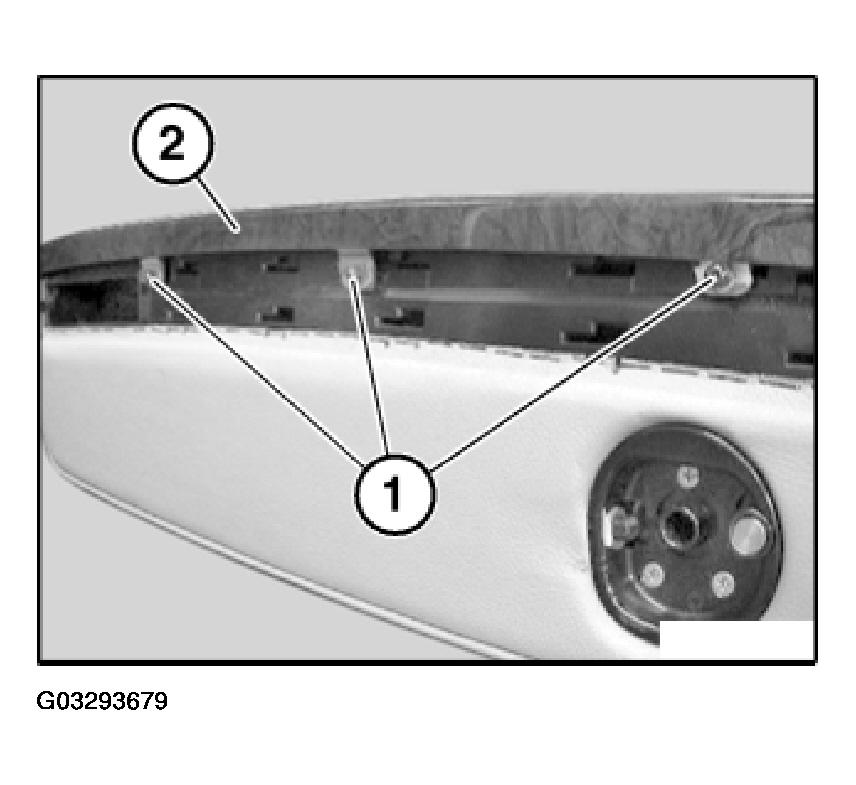

Fig 5: Trim And Retaining Screws
G03293679Courtesy of BMW OF NORTH AMERICA, INC.

When replacing trim:

Release screw (1) and remove lock (2).

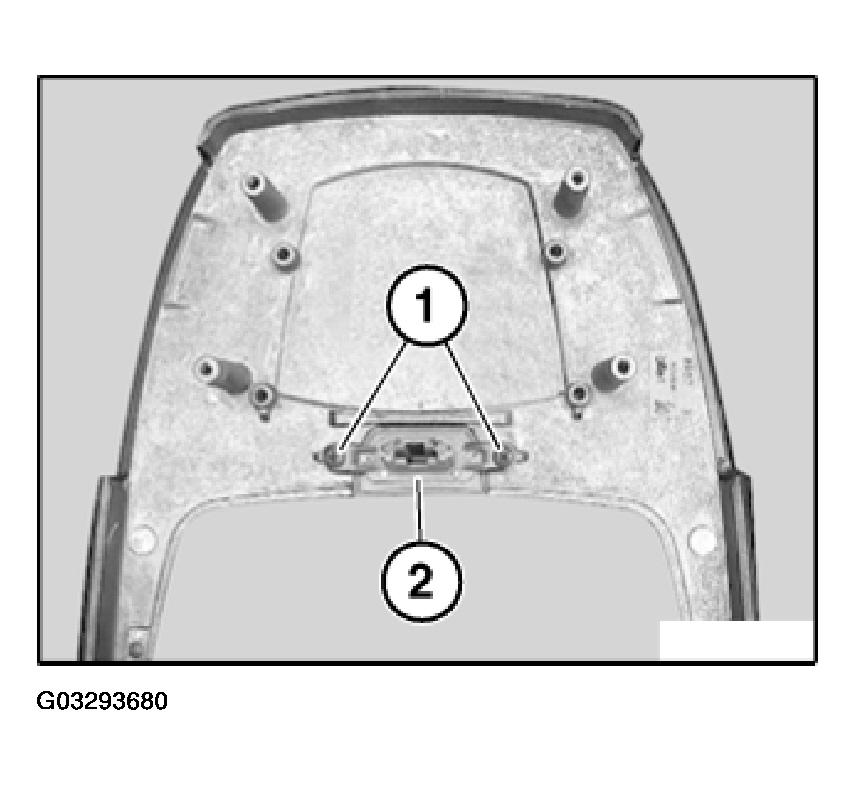

Fig 6: Lock And Retaining Screws
G03293680Courtesy of BMW OF NORTH AMERICA, INC.

Remove switch unit (1) on left and right towards top.

Installation:

Slide switch unit (1) on left and right into guide.

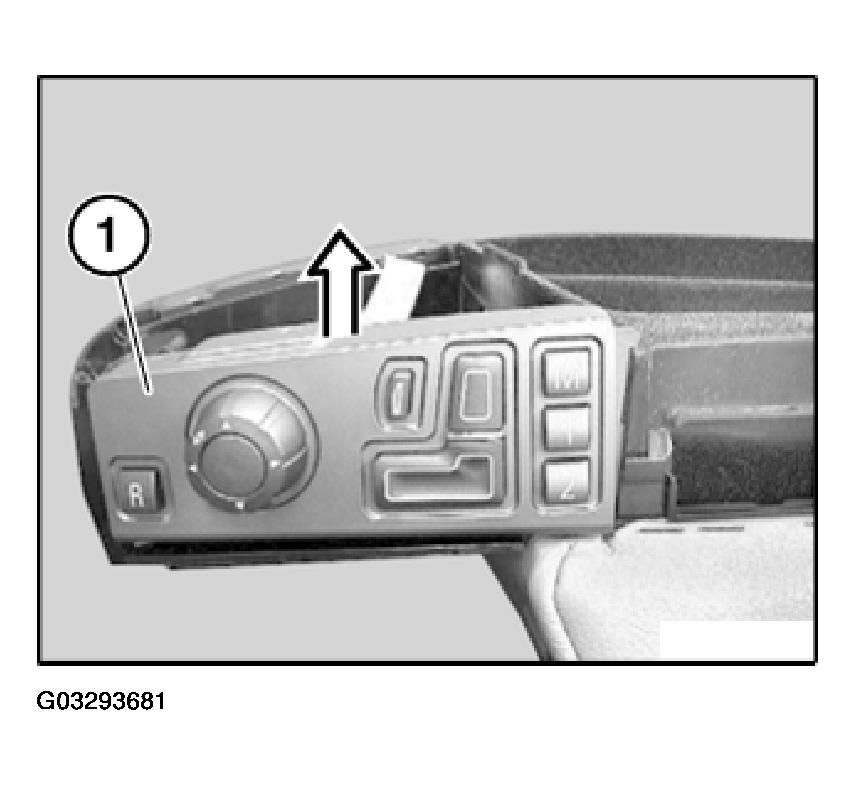

Fig 7: Switch Unit And Removal Direction
G03293681Courtesy of BMW OF NORTH AMERICA, INC.

Unclip storage tray (1) with assembly wedge (2) and remove towards top.

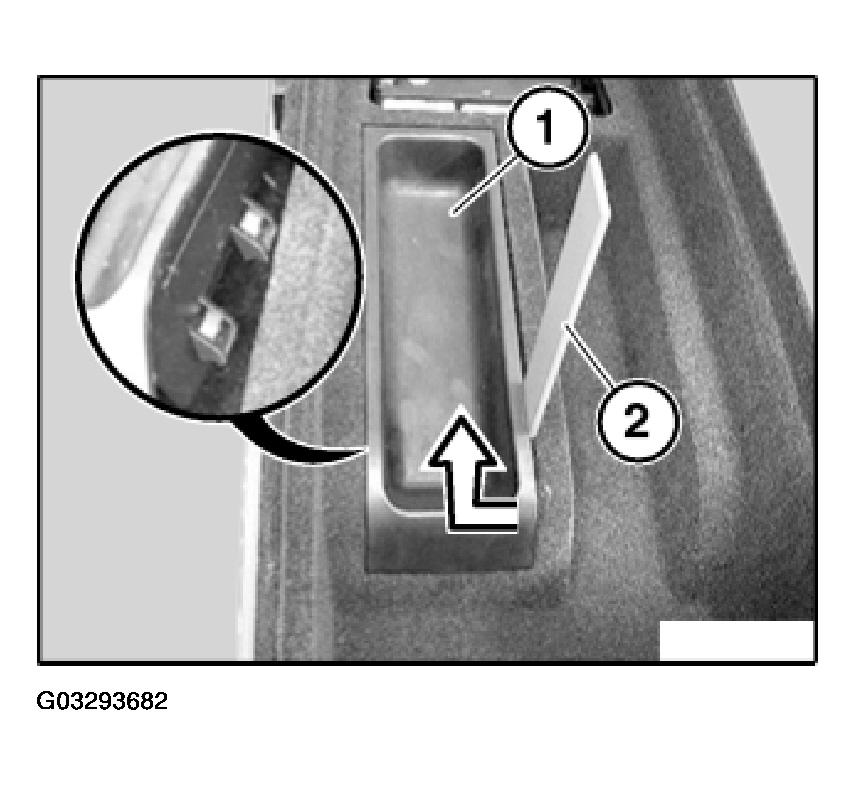

Fig 8: Storage Tray, Assembly Wedge And Removal Direction
G03293682Courtesy of BMW OF NORTH AMERICA, INC.

Unlock head restraint guide (1) from inside of front storage tray (3).

Lever out head restraint guide (1) with assembly wedge (2) at side and remove towards top.

Installation:

Head restraint guides on left and right must not be mixed up.

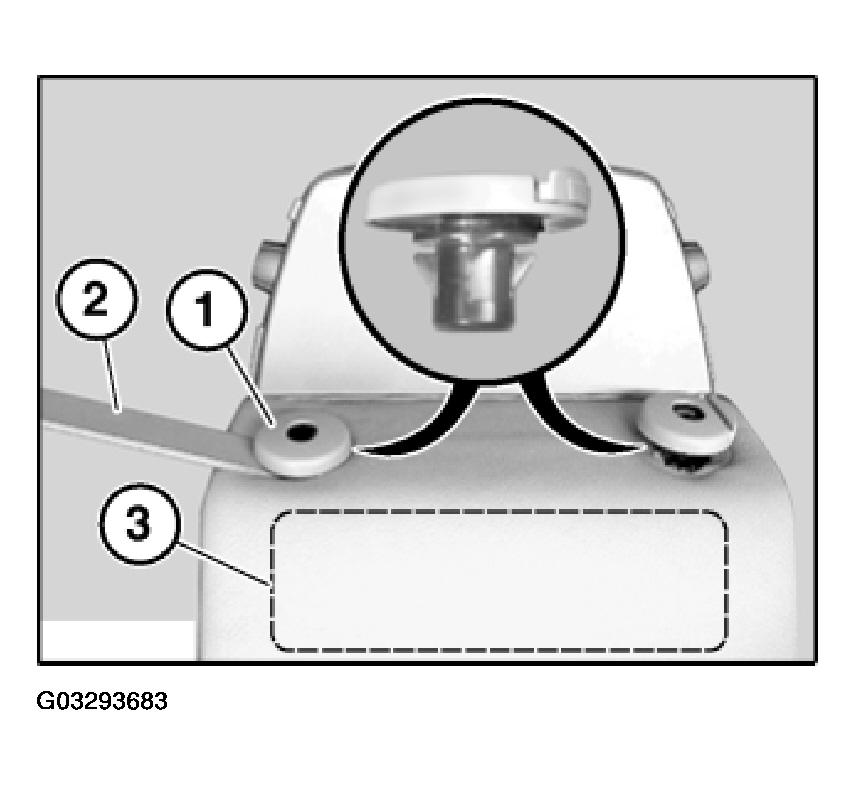

Fig 9: Head Restraint Guides, Front Storage Tray And Assembly Wedge
G03293683Courtesy of BMW OF NORTH AMERICA, INC.
