52 25 410 Replacing Backrest Cover For Left Or Right Rear Seat

Special Tools Required:

• 00 9 317
• 52 0 050

Necessary Preliminary Tasks:

• Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .
• Remove rear panel on rear seat backrest. Refer to 52 25 ... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .

Detach retainers in areas (1).

Remove remnants of retainers from backrest cover and/or padding.

Installation:

Bend new retainers closed with pliers 52 0 050.

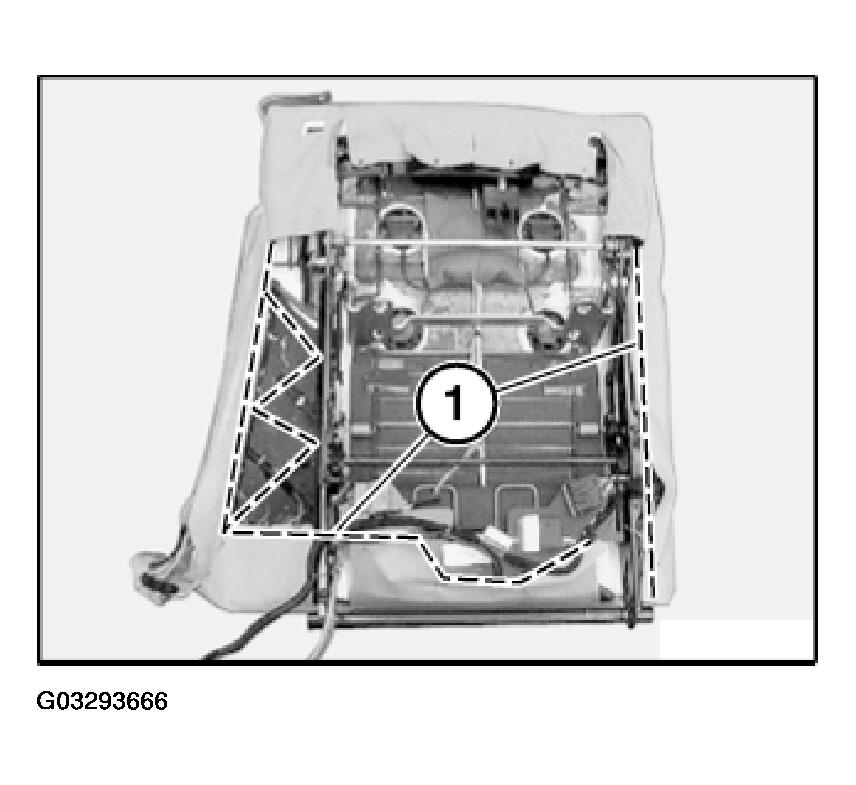

Fig 1: Retainer Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook backrest cover (1) at top.

Release retainers on cover (2).

Remove cover (2).

Disconnect plug connections (3).

Remove backrest cover (1) complete with padding.

Remove lumbar cushion.

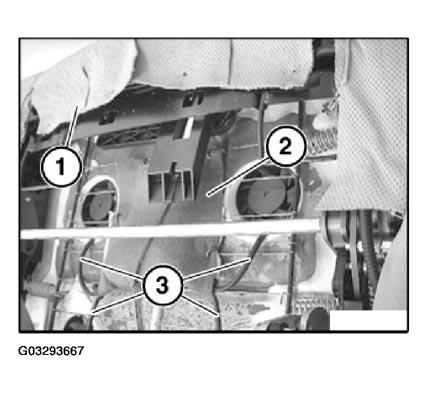

Fig 2: Backrest Cover, Plug Connection And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers in area (1).

Remove backrest cover from padding.

Remove remnants of retainers from backrest cover and/or padding.

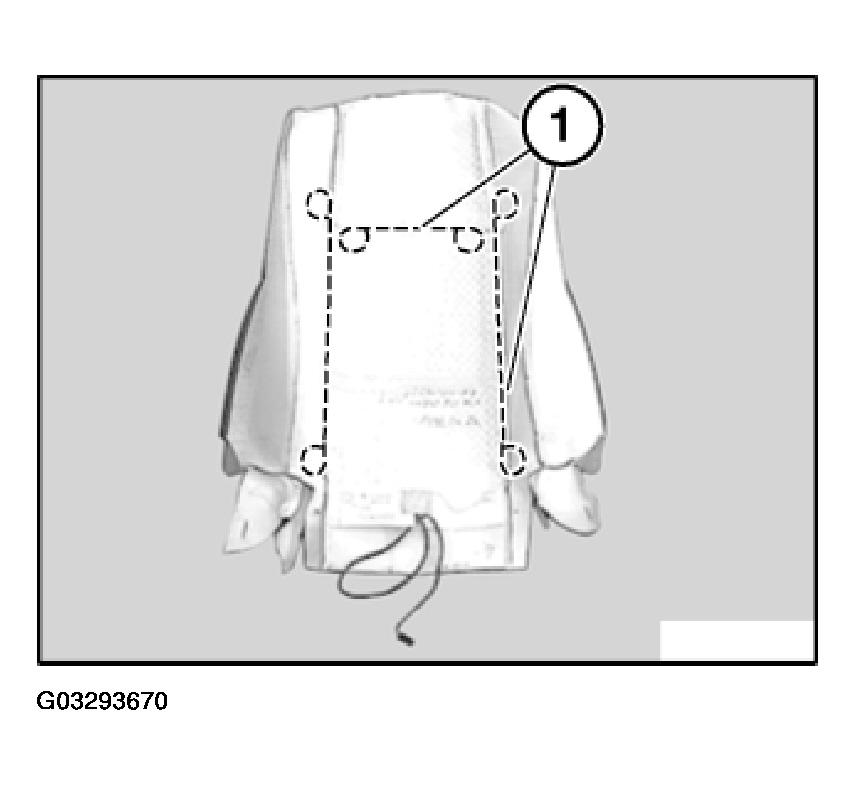

Fig 3: Backrest Cover Retainer Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new retainer (2) closed with pliers 52 0 050.

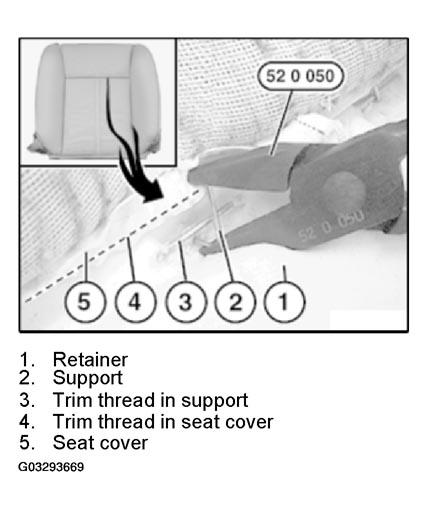

Fig 4: Closing Retainer With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim threads (1) out of seat cover.

Installation:

Slide trim threads (1) into new seat cover. If necessary, cut mounting for trim threads.

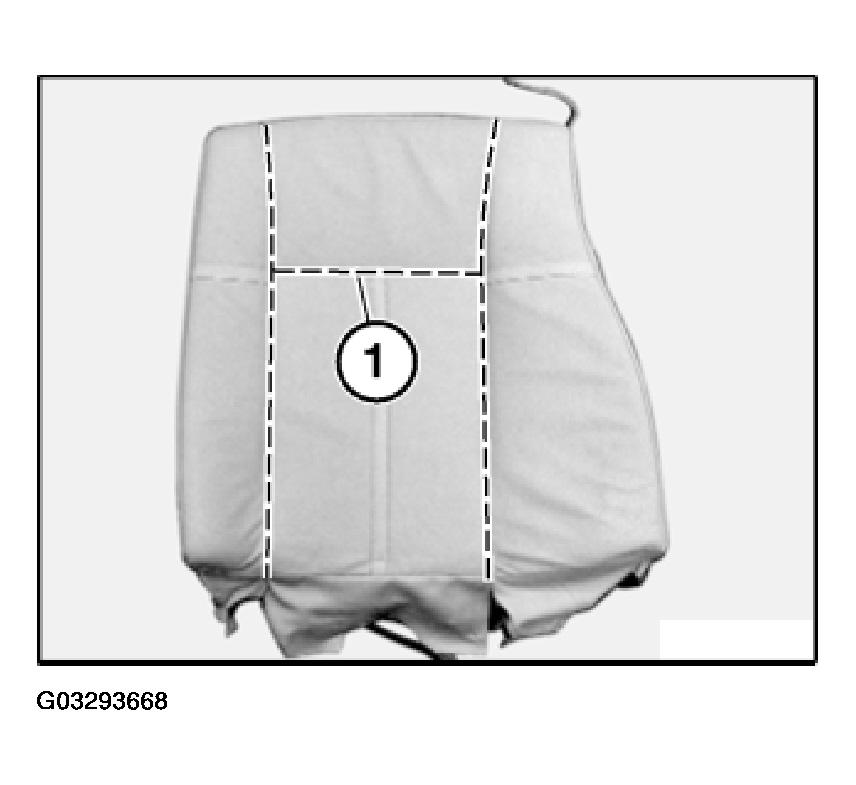

Fig 5: Seat Cover Trim Threads

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out locking strip of head restraint guide with trim panel wedge 00 9 317.

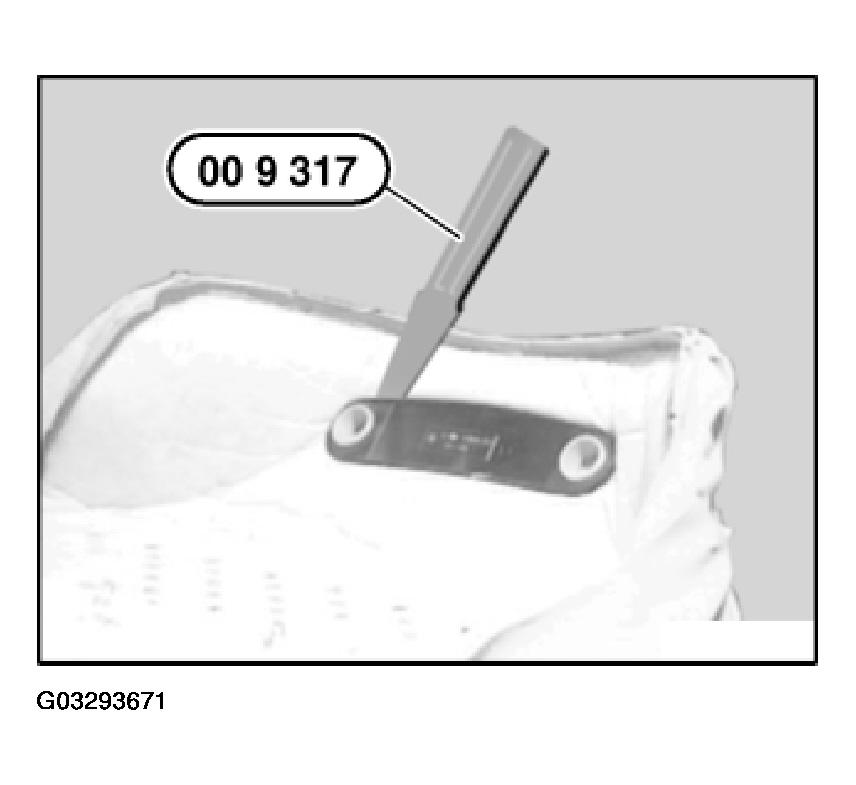

Fig 6: Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount straight front face of head restraint guide towards front.
