61 31 166 Removing And Installing/Replacing Rear Left Or Right Switch Combination (Seat Heating, Seat A/C For Comfort Seat In Rear Compartment)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 341

Remove control unit in rear center armrest. Refer to 61 31 156 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT IN CENTER ARMREST AT REAR .

Using special tool 00 9 341, depress catches (1) and press out rear switch combination (2) in direction of arrow.

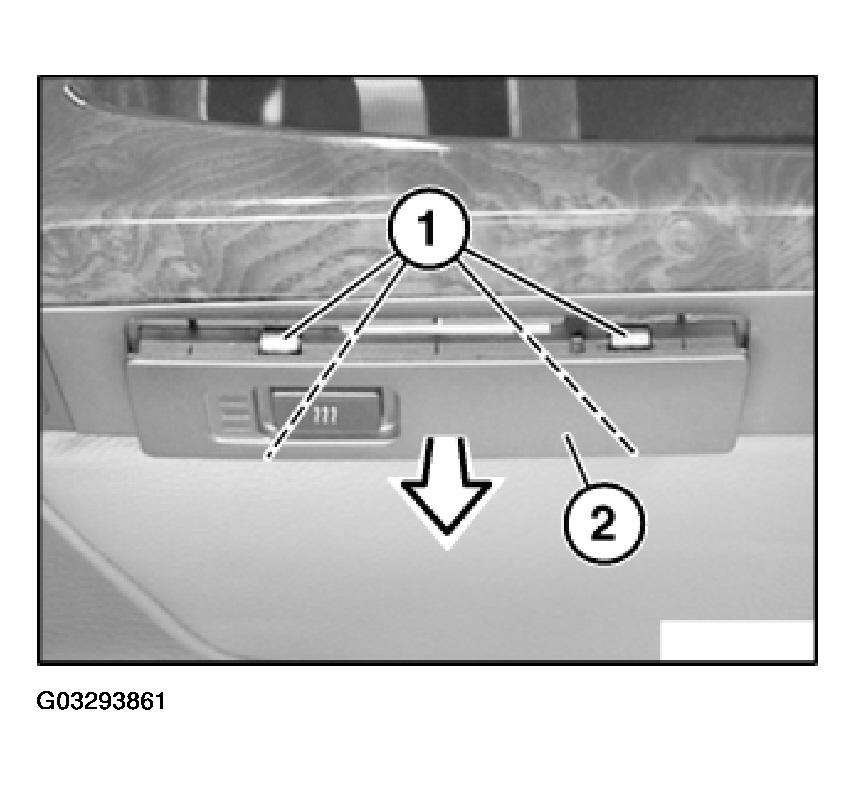

Fig 1: Catches, Rear Switch Combination And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
