52 24 532 Replacing Lower Armrest Section For Rear Seat Backrest (Normal)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear center head restraint. Refer to 52 24 388 REMOVING AND INSTALLING/REPLACING REAR MIDDLE HEAD RESTRAINT (NORMAL) .
Remove armrest for rear seat backrest. Refer to 52 24 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

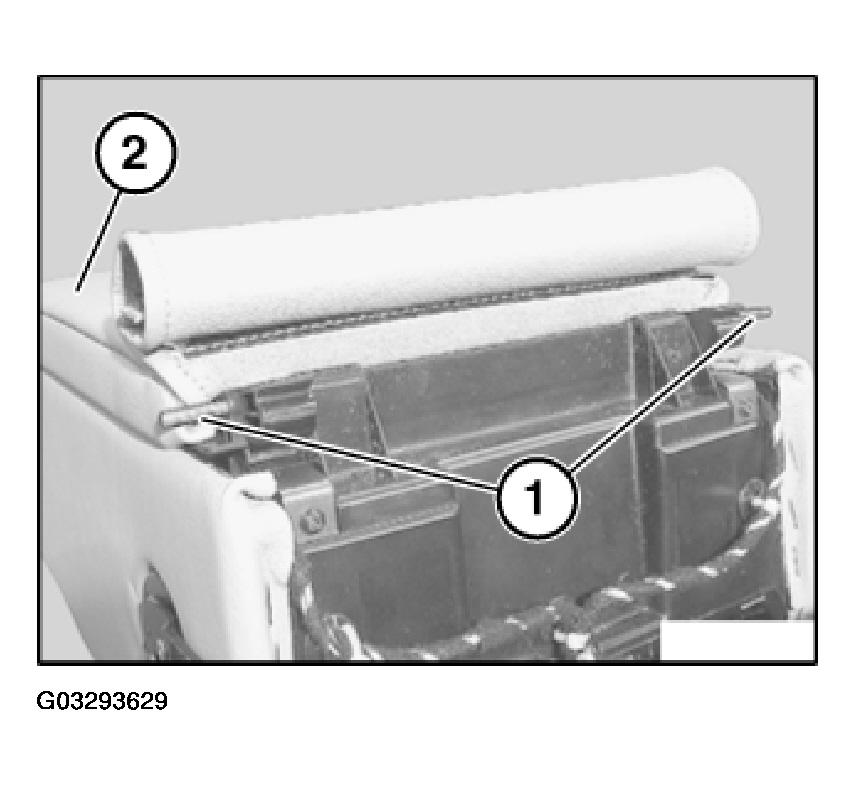

Drive through pin (1) towards outside.

Fold up upper armrest section (2) and remove towards top.

Fig 1: Armrest Pin And Upper Armrest Section

G03293629

Courtesy of BMW OF NORTH AMERICA, INC.

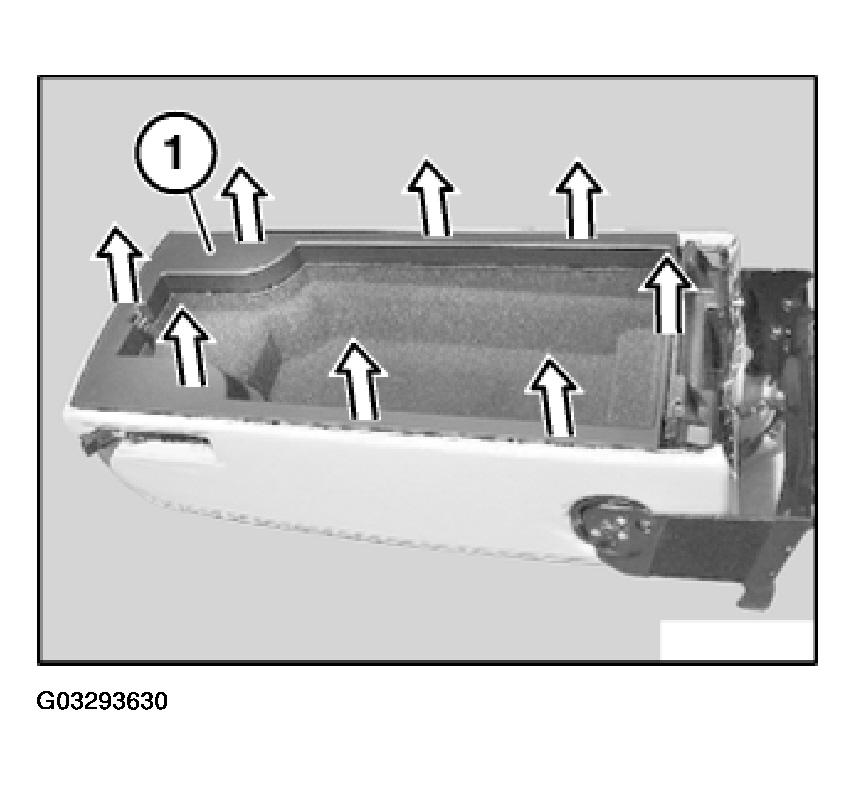

Unclip cover (1) towards top and remove.

Fig 2: Cover And Removal Direction

G03293630

Courtesy of BMW OF NORTH AMERICA, INC.

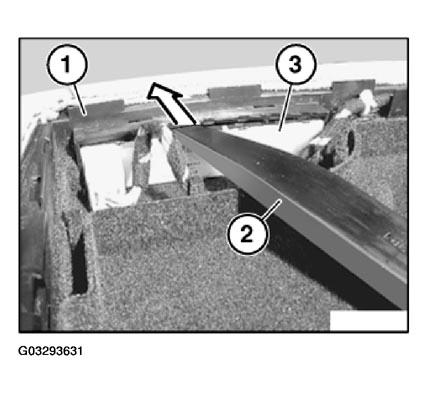

Gently raise frame (1) on left and right with assembly wedge (2).

Press switch unit (3) on left and right from inside of center armrest outwards.

Disconnect plug connection behind and remove switch unit (3) on left and right.

Fig 3: Frame, Assembly Wedge, Switch Unit And Removal Direction

G03293631

Courtesy of BMW OF NORTH AMERICA, INC.

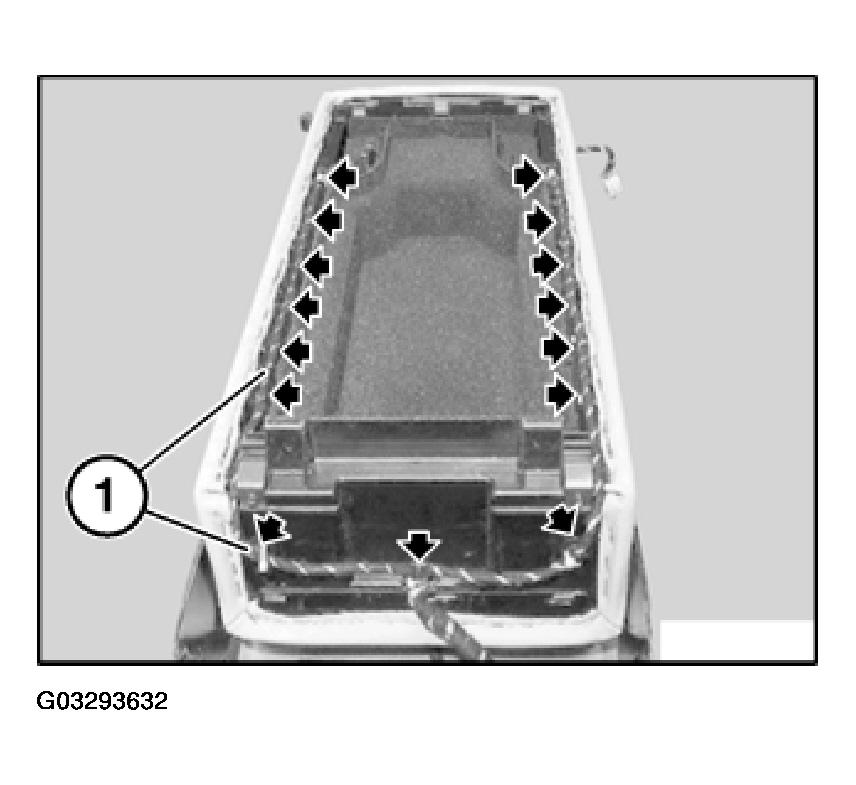

Unclip wiring harness (1) at designated areas, feed out and remove.

Fig 4: Wiring Harness And Clips

G03293632

Courtesy of BMW OF NORTH AMERICA, INC.

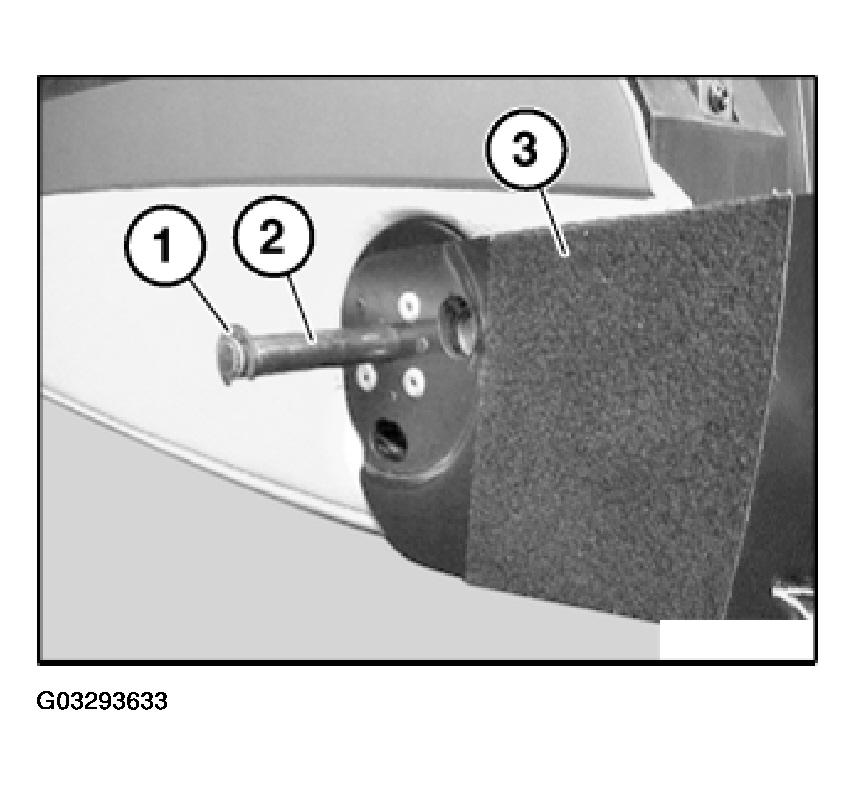

Release retainer (1).

Remove shaft (2).

Bend open holder (3) on left and right and remove.

Installation:

When installing holder (3), do not damage lower armrest section.

Fig 5: Shaft, Holder And Retainer

G03293633
