52 17 420 Replacing Padding For Left Or Right Front Seat Backrest (Comfort)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This task is identical to replacing backrest cover. Refer to 52 17 405 REPLACING BACKREST COVER FOR LEFT OR RIGHT FRONT SEAT (COMFORT) .

Remove dividing net (1) towards top.

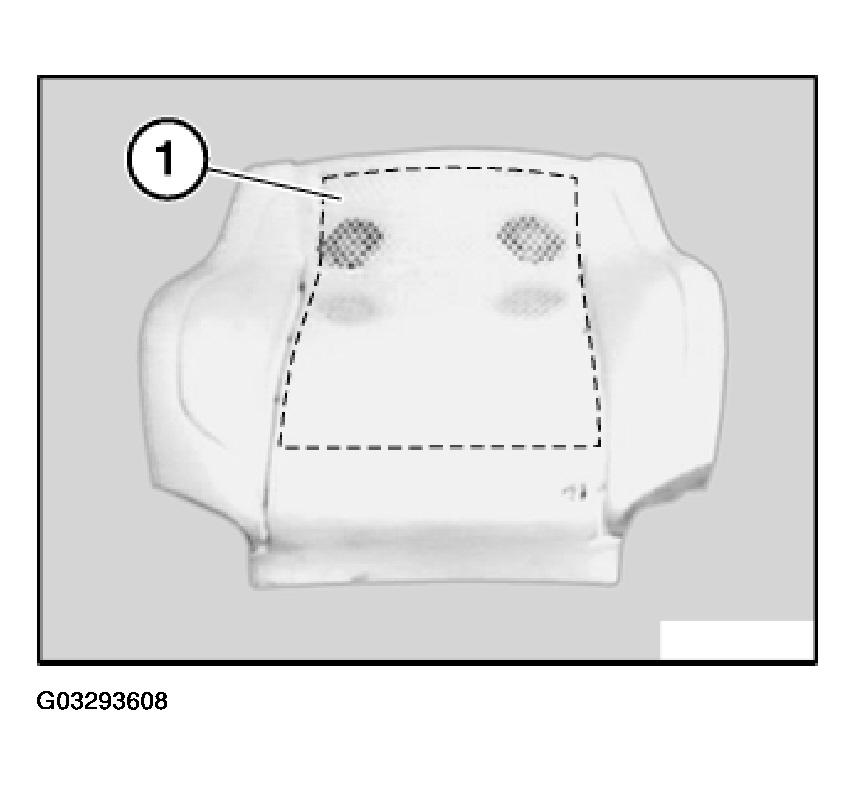

Fig 1: Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

Fig 2: Fan And Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
