52 17 405 Replacing Backrest Cover For Left Or Right Front Seat (Comfort)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS and MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317
52 0 050

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove both rear panels on front seat backrest. Refer to 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .
Remove inner cover on front seat. Refer to 52 14 041 REMOVING AND INSTALLING INNER COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

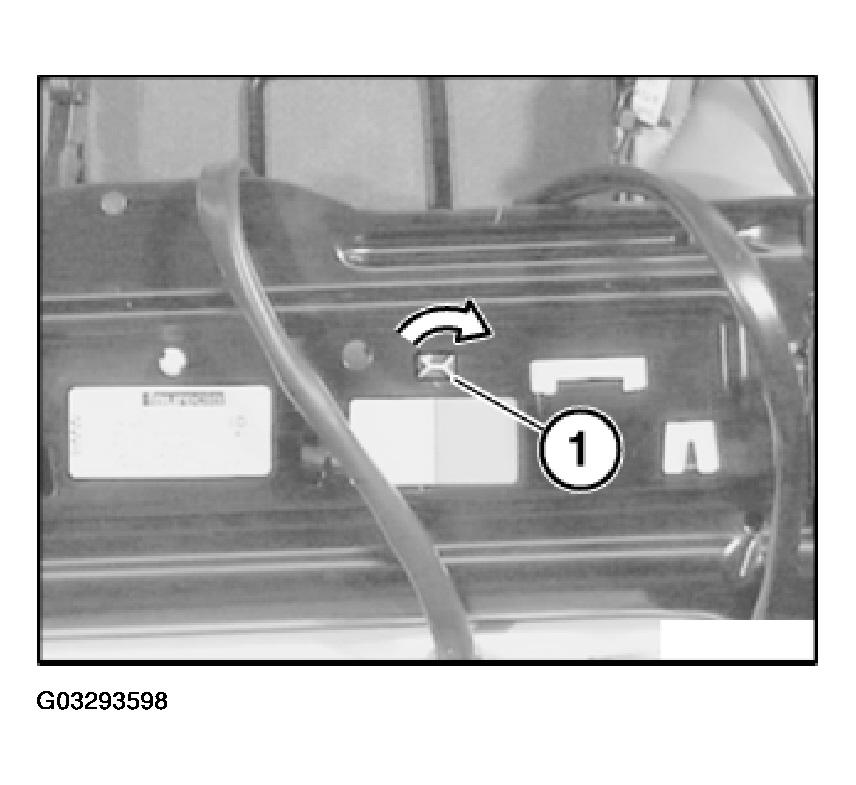

Detach plug connection (1) by twisting from backrest frame.

Disconnect plug connection (1).

Fig 1: Plug Connection And Removal Direction

G03293598

Courtesy of BMW OF NORTH AMERICA, INC.

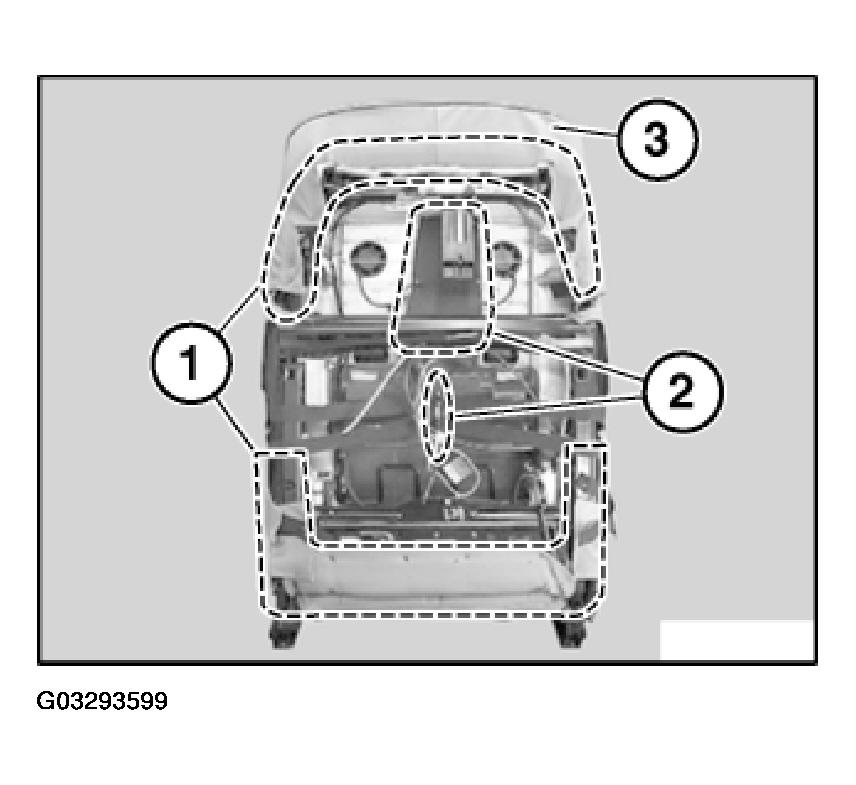

Unhook backrest cover (3) in areas (1).

Detach all retainers in areas (2).

Installation:

Bend new retainers closed with pliers 52 0 050.

Fig 2: Backrest Cover, Retainer Areas And Back Rest Cover Areas

G03293599

Courtesy of BMW OF NORTH AMERICA, INC.

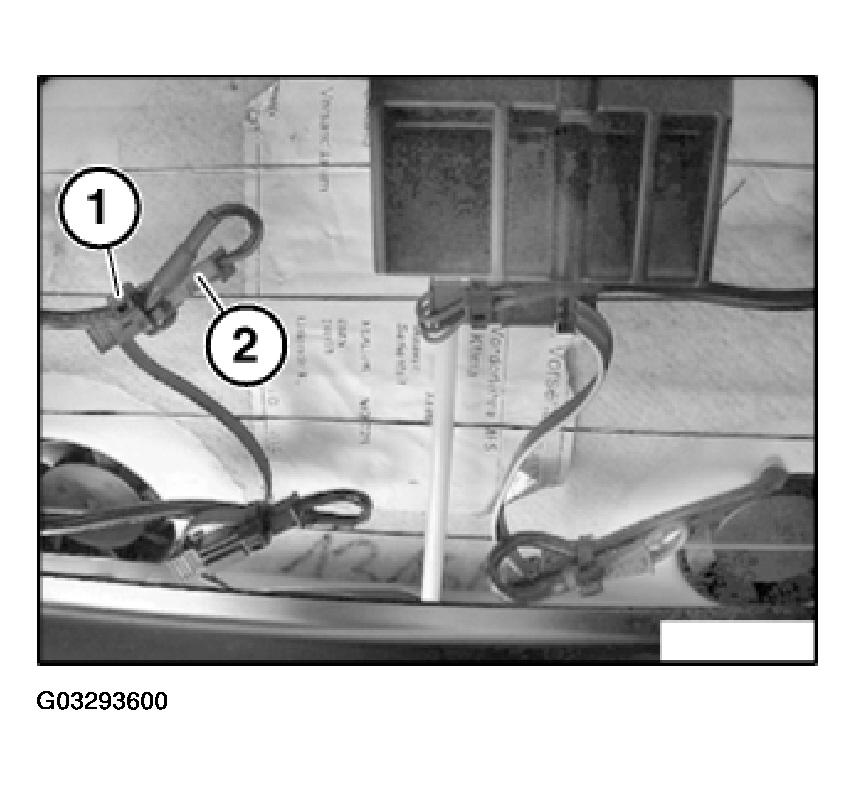

Release all cable ties (1).

Disconnect all plug connections (2).

Fig 3: Cable Ties And Plug Connections

G03293600

Courtesy of BMW OF NORTH AMERICA, INC.

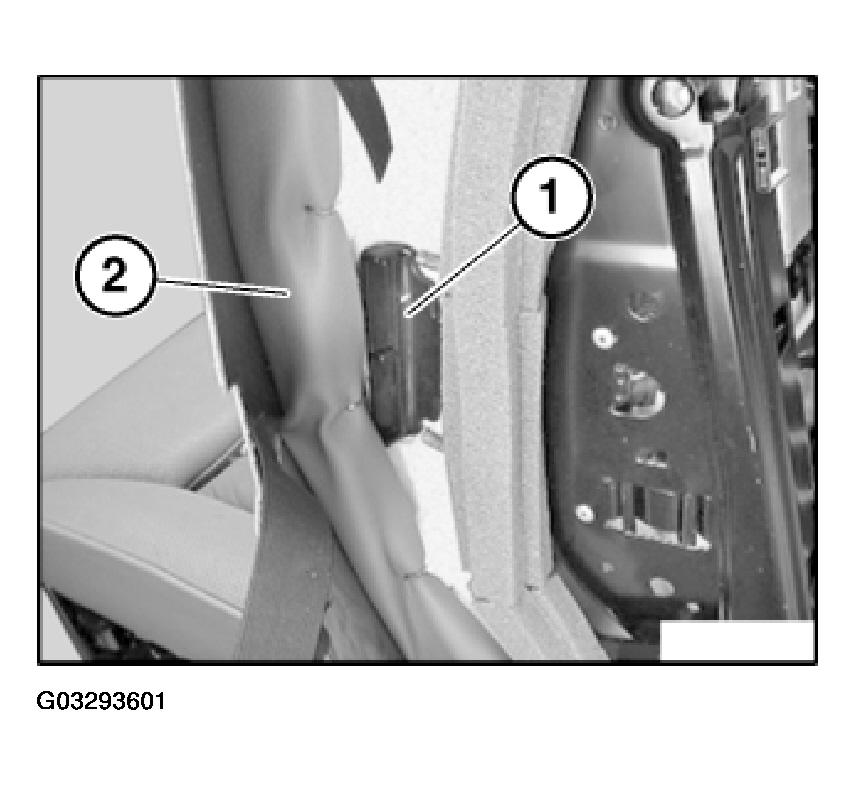

Remove backrest cover (2) complete with padding towards front.

Installation:

Adjusting unit (1) must be secured on left and right in opening of padding.

Fig 4: Adjusting Unit And Backrest Cover

G03293601

Courtesy of BMW OF NORTH AMERICA, INC.

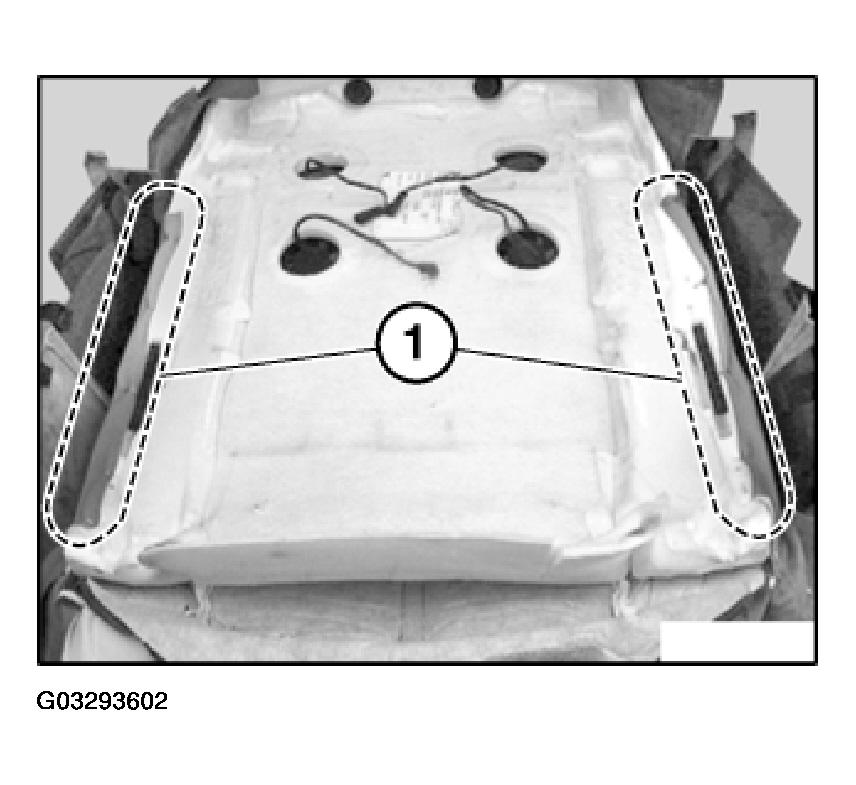

Detach all retainers in areas (1).

Fig 5: Side Retainers

G03293602

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers.

Installation:

Bend new retainers closed with pliers 52 0 050.

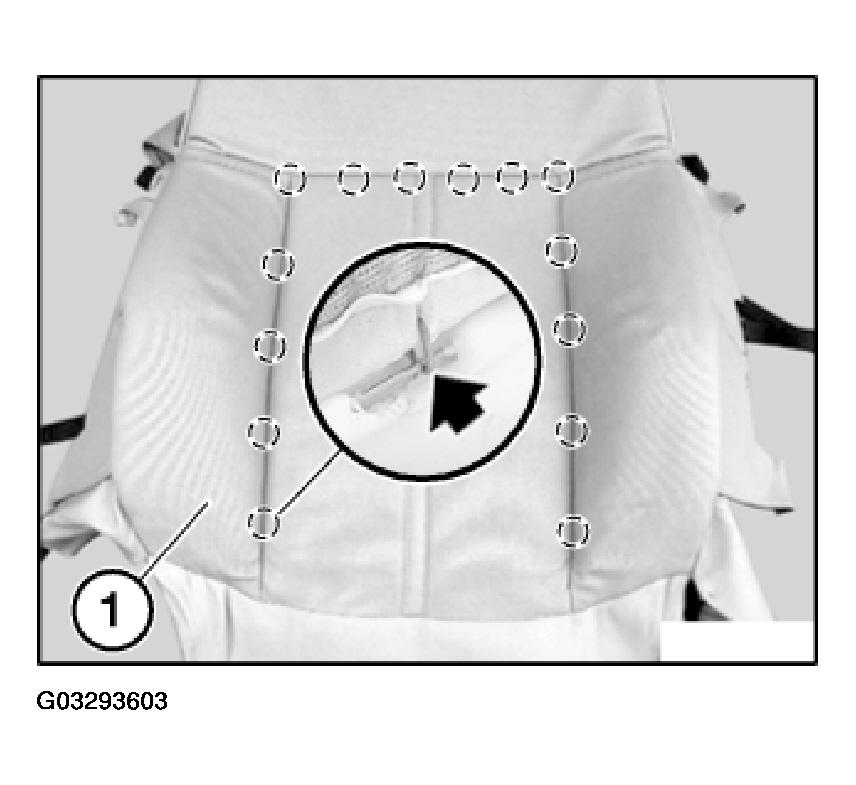

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

Fig 6: Backrest Cover And Clips

G03293603

Courtesy of BMW OF NORTH AMERICA, INC.

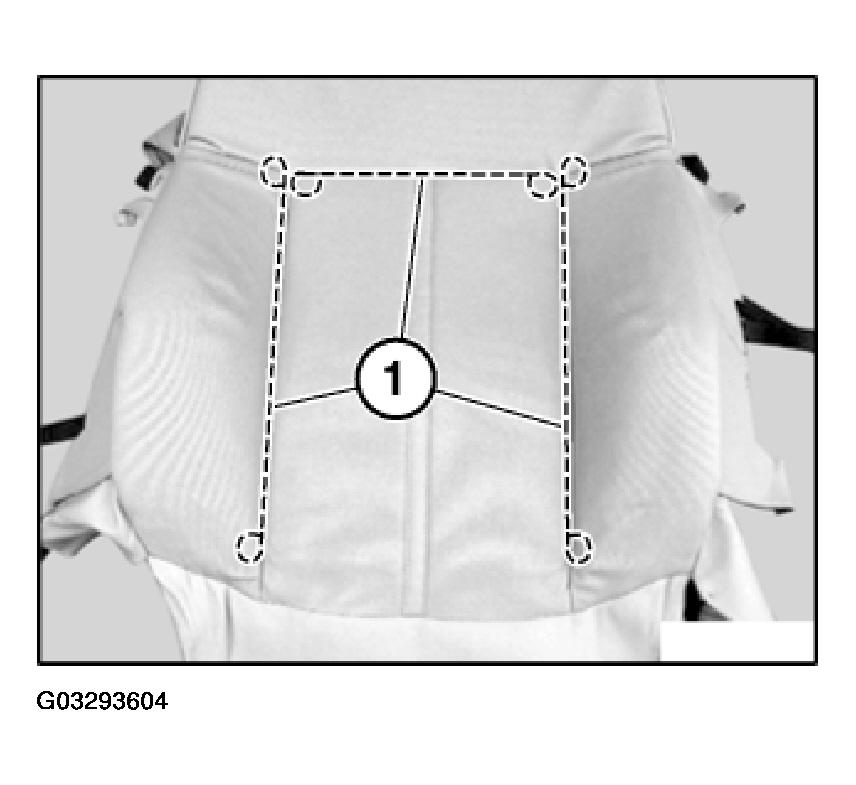

Pull trim threads (1) out of backrest cover.

Installation:

Slide trim threads (1) into new backrest cover; if necessary, cut new part.

Fig 7: Backrest Cover Trim Threads

G03293604

Courtesy of BMW OF NORTH AMERICA, INC.

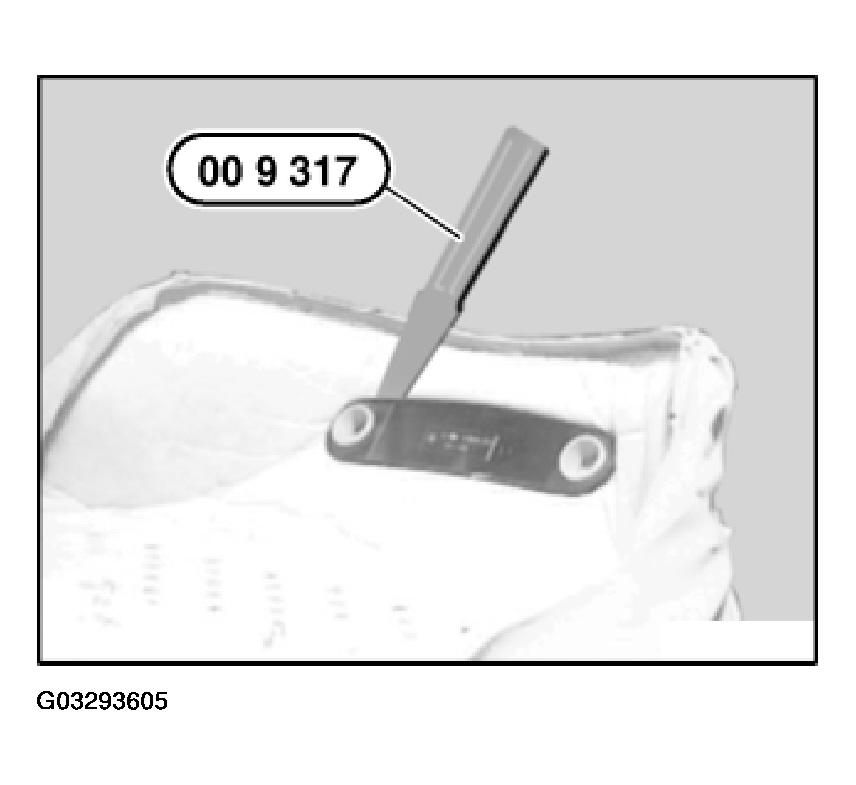

Lever out locking strip of head restraint guide with trim panel wedge 00 9 317.

Installation:

Mount straight front face of head restraint guide towards front.

Fig 8: Special Tool (00 9 317)

G03293605

Courtesy of BMW OF NORTH AMERICA, INC.
