67 31 500 Removing And Installing/Replacing Drive Unit For Longitudinal Seat Adjustment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim in upper rail at front (1) in direction of arrow and remove.

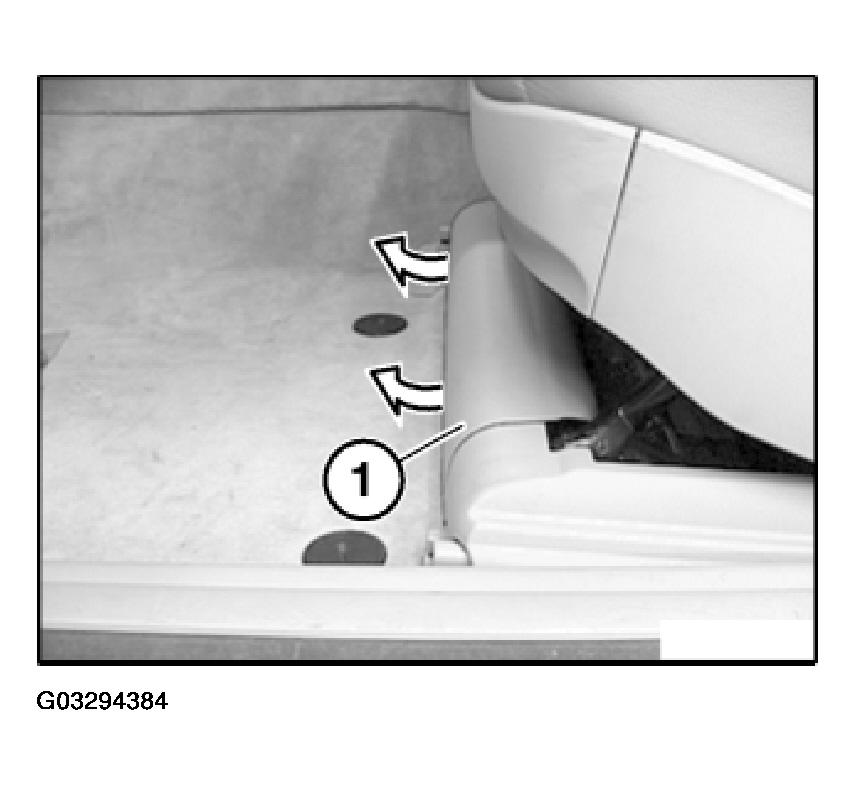

Fig 1: Removing Trim From Upper Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip outer trim on upper rail (1) at front in direction of arrow and feed out towards rear.

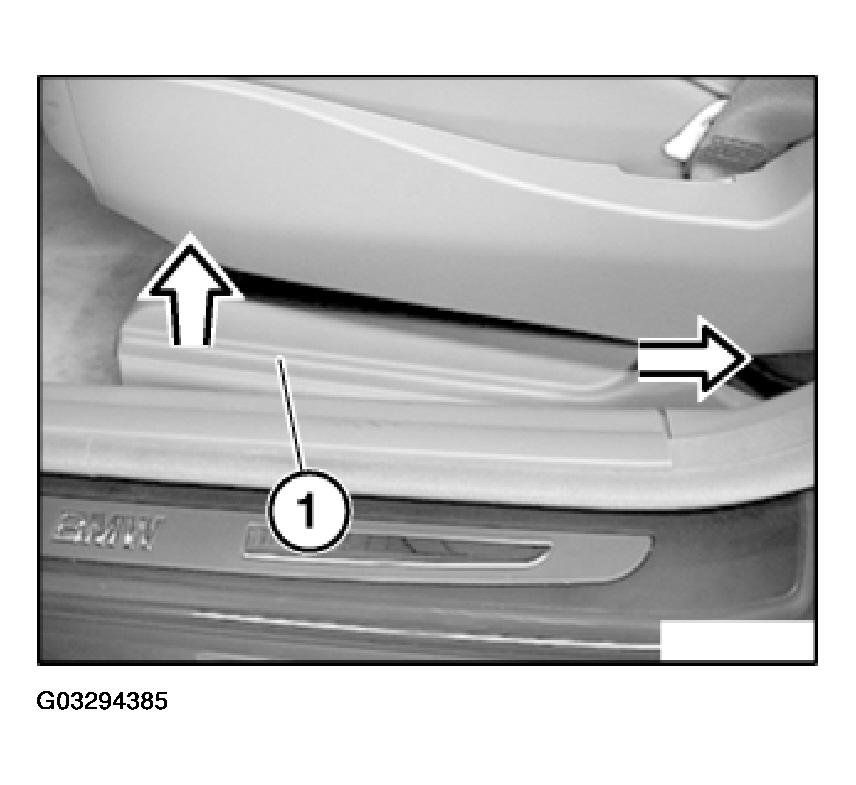

Fig 2: Unclipping Outer Trim On Upper Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Version Up To 03/2003:

Cut through cable tie (1).

Disconnect plug connection (2).

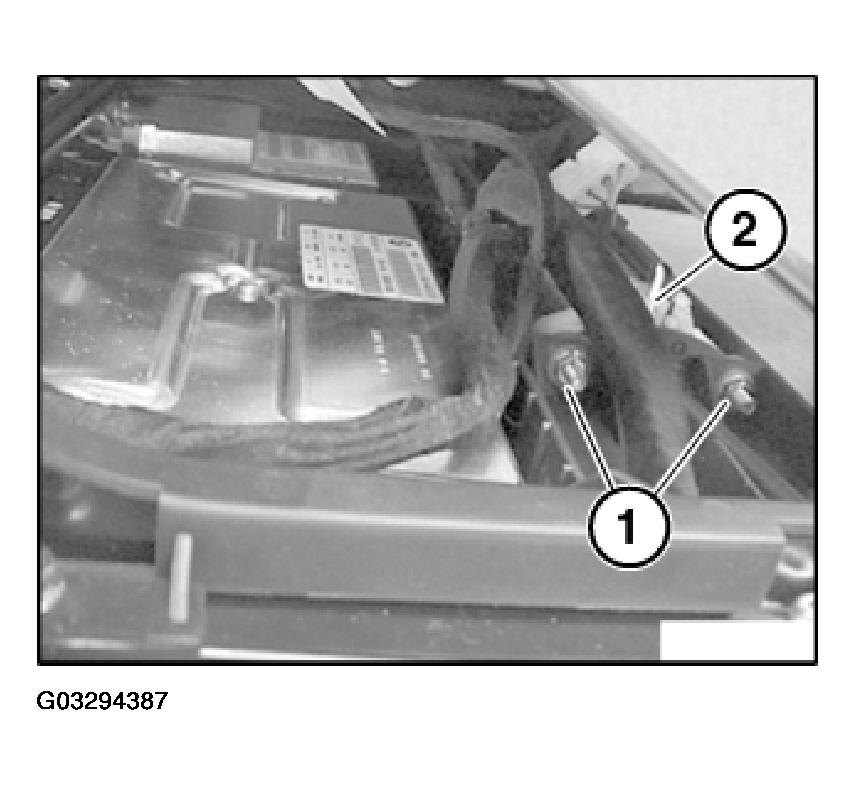

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1). If necessary, grip screws and remove from drive unit for longitudinal seat adjustment (2).

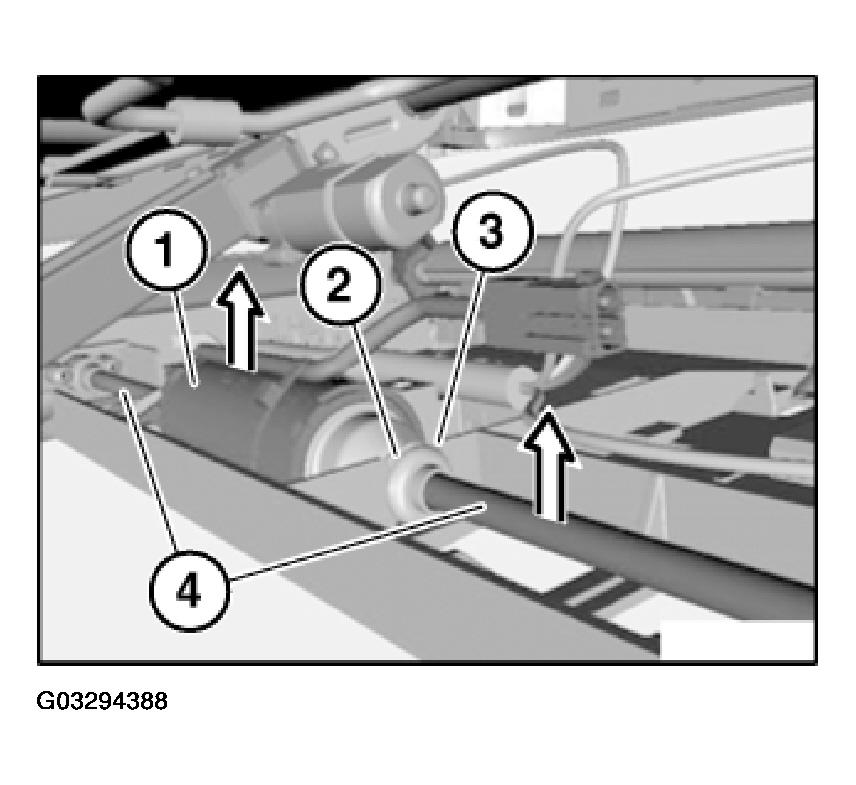

Fig 4: Removing From Drive Unit For Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Lever drive unit for longitudinal seat adjustment (1) with rubber grommet (2) upwards out of guide (3).

Disconnect both drive shafts (4) from drive unit for longitudinal seat adjustment (1).

Installation:

Make sure rubber grommet (2) is correctly seated in guide (3).

Make sure both drive shafts (4) are correctly seated.

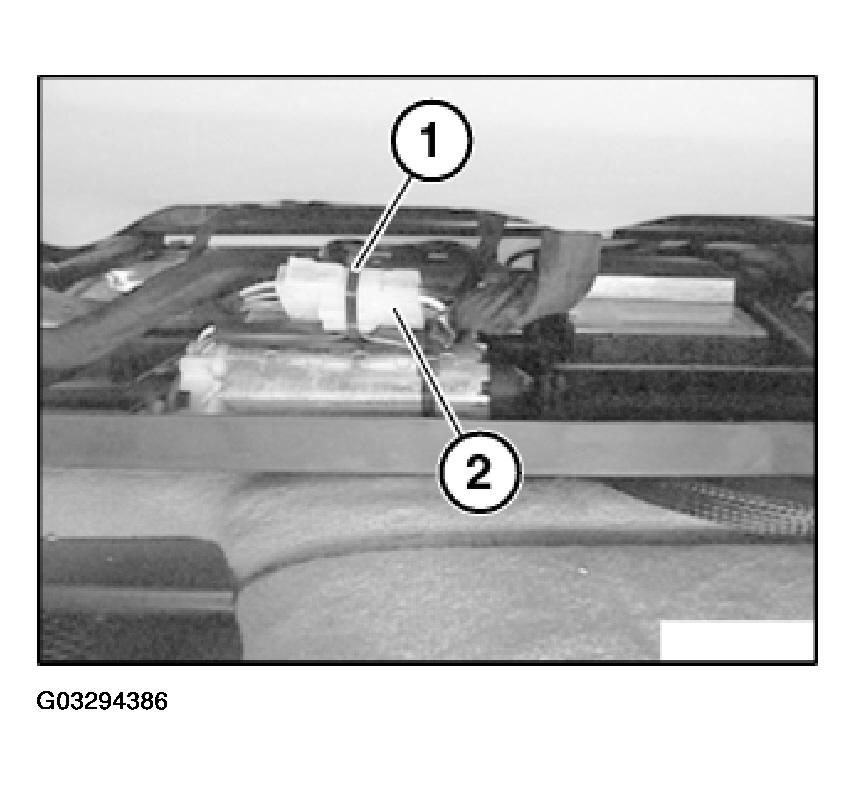

Fig 5: Locating Drive Unit For Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Build Date From 03/2003:

Disconnect plug connections (1).

Release expander rivets (2), replace if necessary.

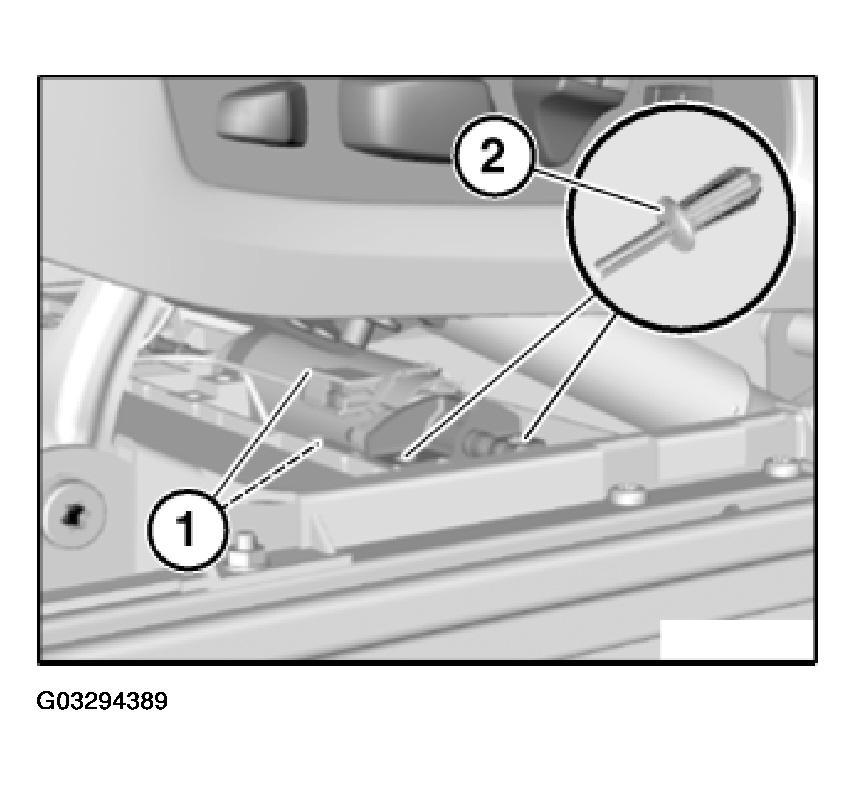

Fig 6: Identifying Expander Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not kink drive shafts (4).

Raise flange (1) with drive unit for longitudinal seat adjustment (2) slightly and detach from left drive shaft.

Feed out drive unit for longitudinal seat adjustment (2) in direction of arrow and detach from right drive shaft.

NOTE: To facilitate installation/removal, lever out guide clip (3) if necessary.

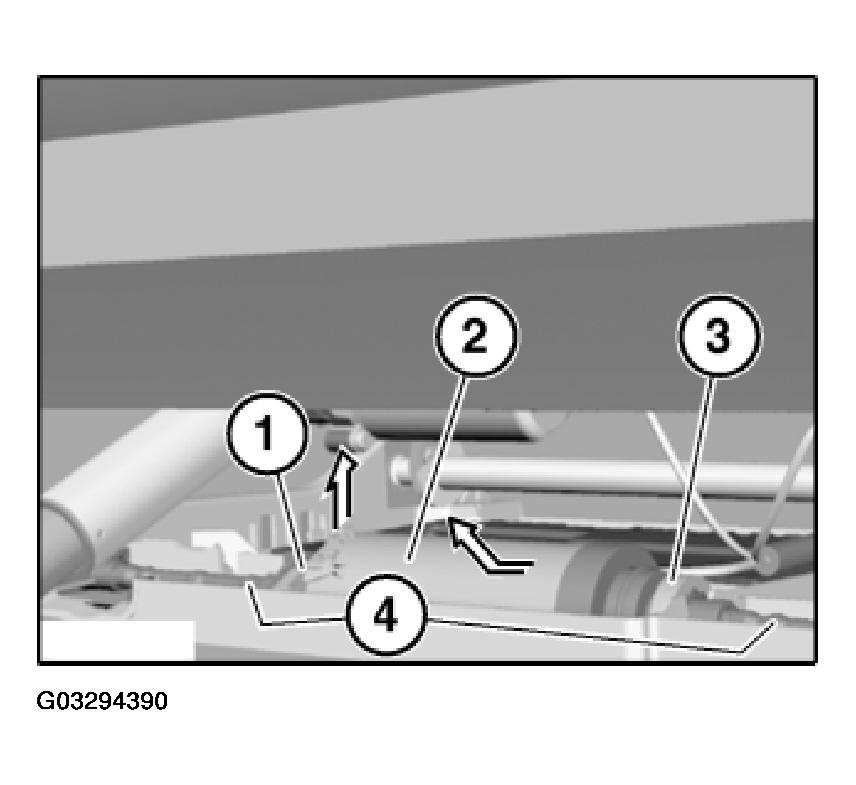

Fig 7: View Of Drive Unit For Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guide clips (3) and both drive shafts (4) are correctly seated.

Comfort Seat, All Build Dates:

Replacement:

Initialize drive unit for longitudinal seat adjustment. Refer to 67 31 ... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
