52 14 ... Removing And Installing/Replacing Guide For Front Left Or Right Head Restraint (Up To 03/03)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove head restraint mounting on front seat. Refer to 52 14 380 REMOVING AND INSTALLING/REPLACING HEAD RESTRAINT MOUNT ON LEFT OR RIGHT FRONT SEAT .

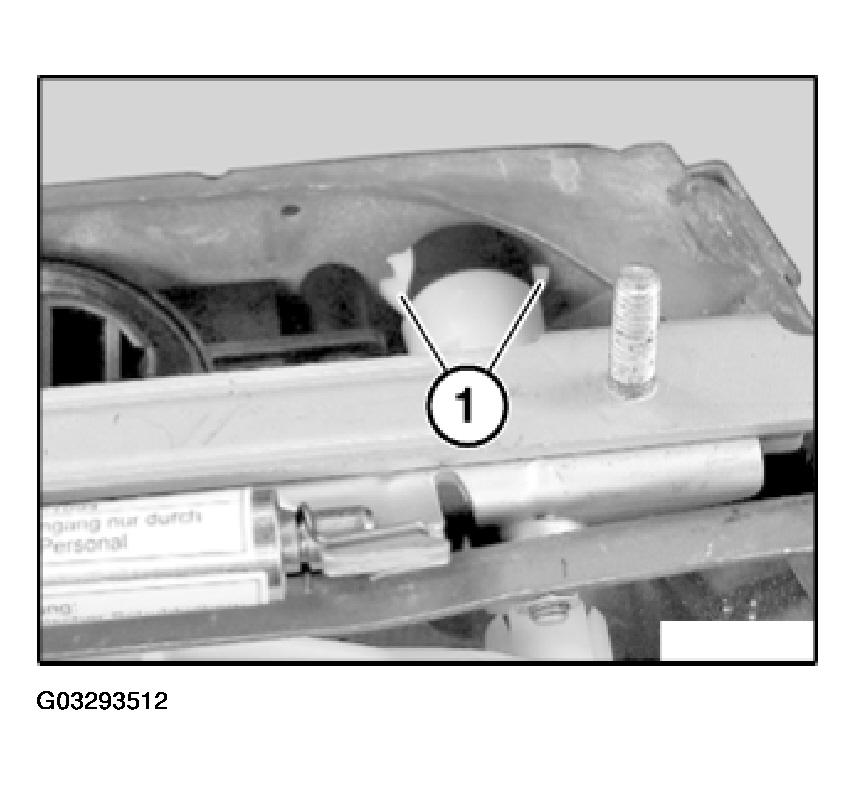

Unlock catches (1) and remove guide towards top.
