51 24... Removing And Installing/Replacing Bowden Cable For Rear Lid Lock (Up To 03/2005)

Necessary Preliminary Tasks:

• Remove lock element (lock cylinder) for rear lid. Refer to 51 24 050 REMOVING AND INSTALLING/REPLACING LOCK ELEMENT (LOCK CYLINDER) FOR REAR LID (UP TO 03/2005) .

Lever out securing plugs (1).

Lever out catches (2) and remove Bowden cable guide (3).

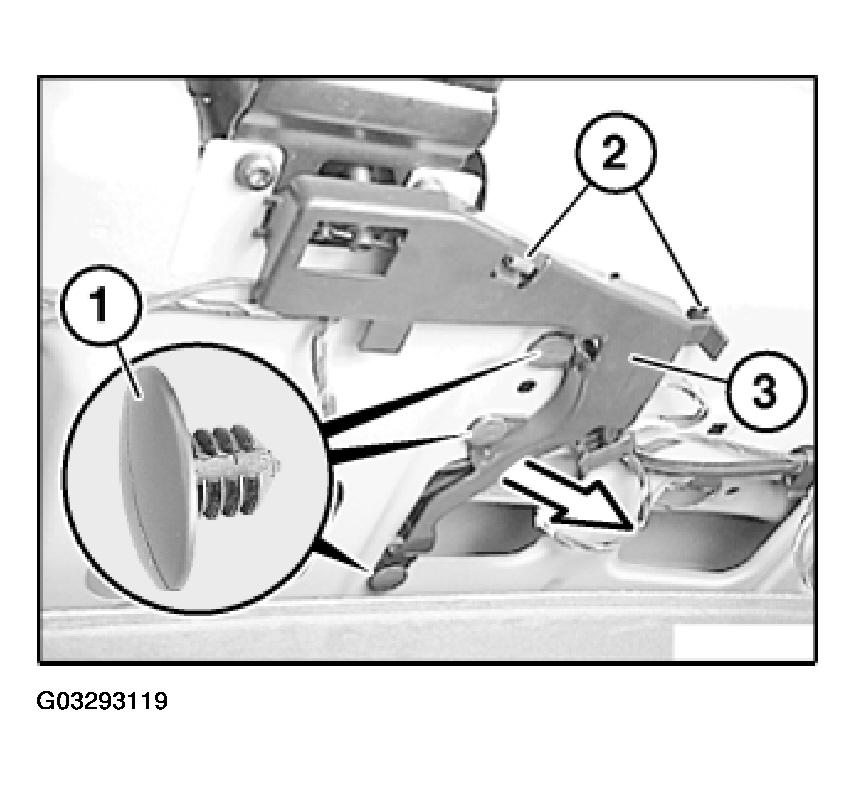

Fig 1: View Of Securing Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (1) and detach Bowden cables (2 and 3) from rear lid lock upper section (6).

Lever out expanding wedge (4) and detach guide (5).

Version With Manual Unlocking:

Installation:

Bowden cable (2) must be correctly positioned in guide (5).

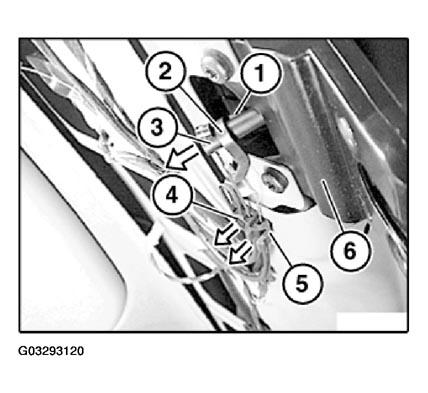

Fig 2: Locating Bowden Cables In Rear Lid Lock Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

Release lock (1) from Bowden cable (2) and remove clip (3).

Feed out Bowden cable (2) from rear lid.

Installation:

Lock (1) must be correctly fitted.

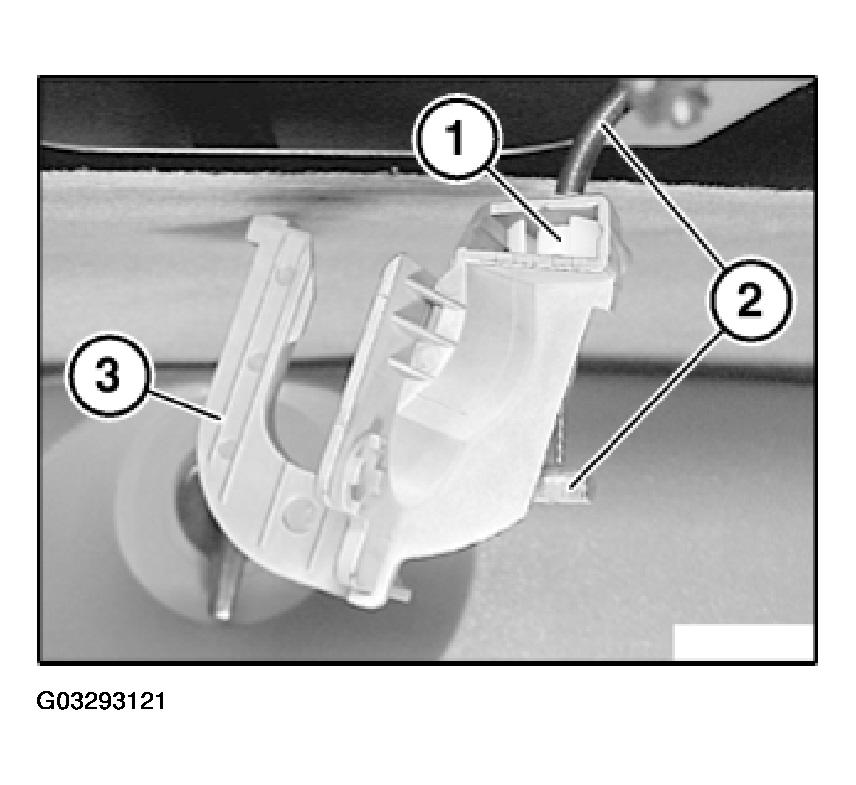

Fig 3: Releasing Lock From Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Routing Of Bowden Cables For Rear Lid Lock:

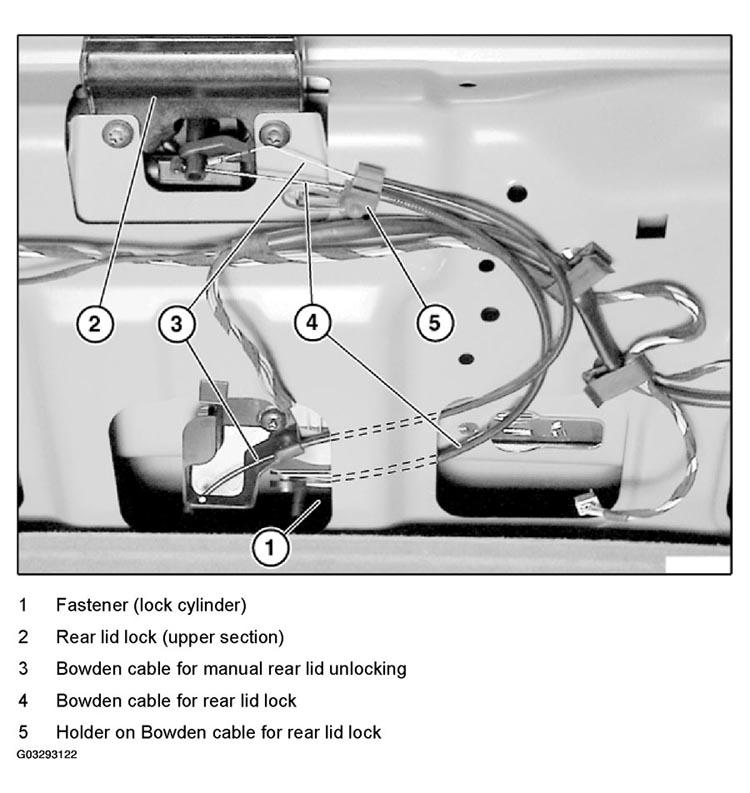

Fig 4: Identifying Routing Of Bowden Cables For Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.
