51 24 050 Removing And Installing/Replacing Lock Element (Lock Cylinder) For Rear Lid (Up To 03/2005)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear center trim. Refer to 51 13 400 REMOVING AND INSTALLING/REPLACING REAR CENTER TRIM (FROM 03/2005) .

Detach cover (1) from lock element (2).

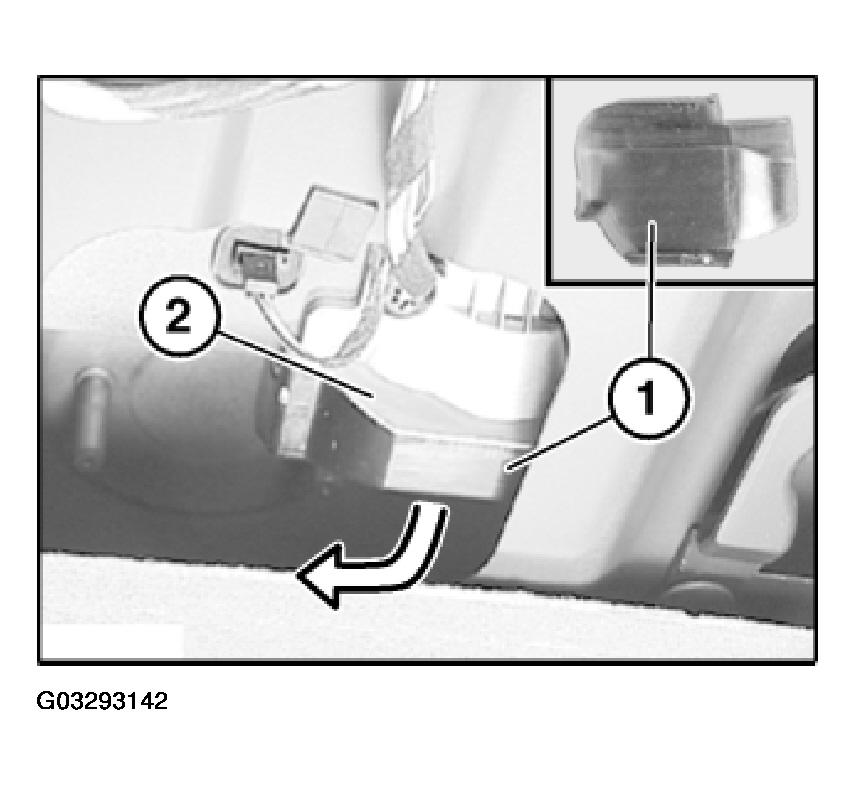

Fig 1: Detaching Cover From Lock Element

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Bowden cable (3) from element (4).

Installation:

Retainer (5) must be correctly fitted.

Version With Manual Unlocking:

Release screw (1).

Slide Bowden cable with holder (2) to one side.

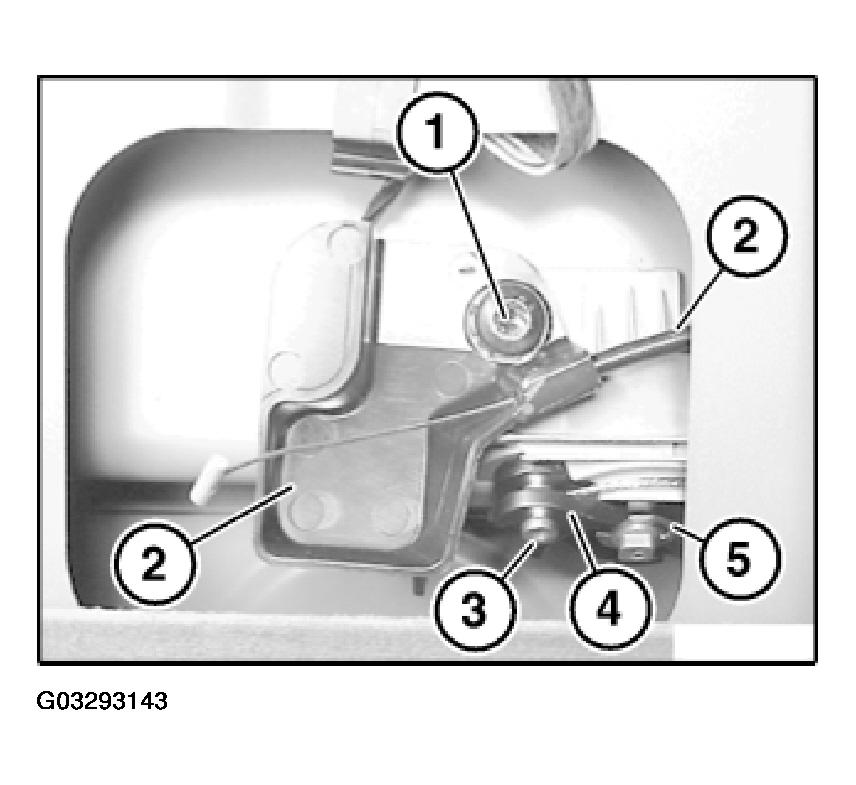

Fig 2: Disconnecting Bowden Cable From Element

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unscrew lock element (2) in direction of arrow from rear lid (3).

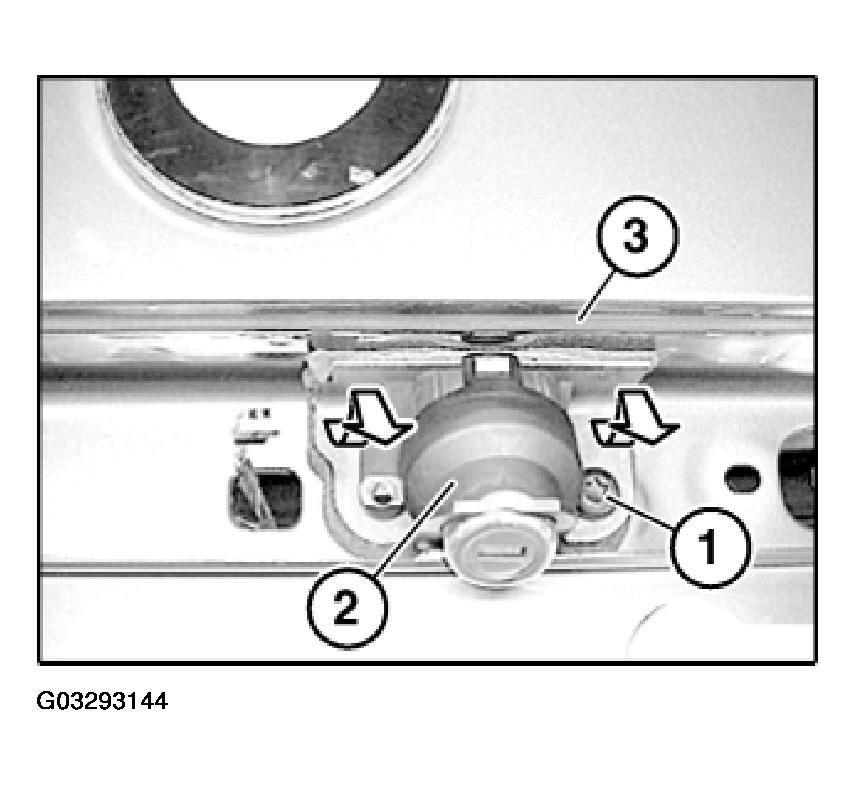

Fig 3: Removing Lock Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.

Installation:

Following parts of lock element (5) must not be damaged or missing:

Foam.
Bowden cable mounting.
Retainer.
Cap.

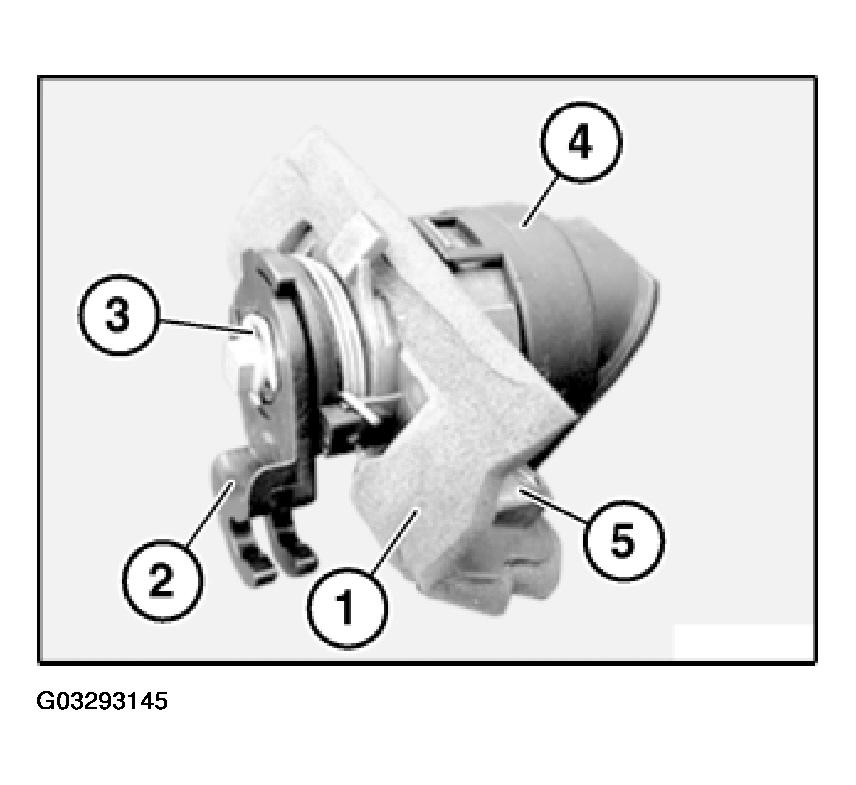

Fig 4: Identifying Lock Element Components
