51 24... Removing And Installing/Replacing Angle Transmitter For Rear Lid Actuation (Electrohydraulic-Fully Automatic)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove right luggage compartment wheel arch trim. Refer to 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .
Remove panel for rear window shelf. Refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF .

Lever out cable holder (1).

Lever out cover (2) and remove.

3) Luggage compartment lid.

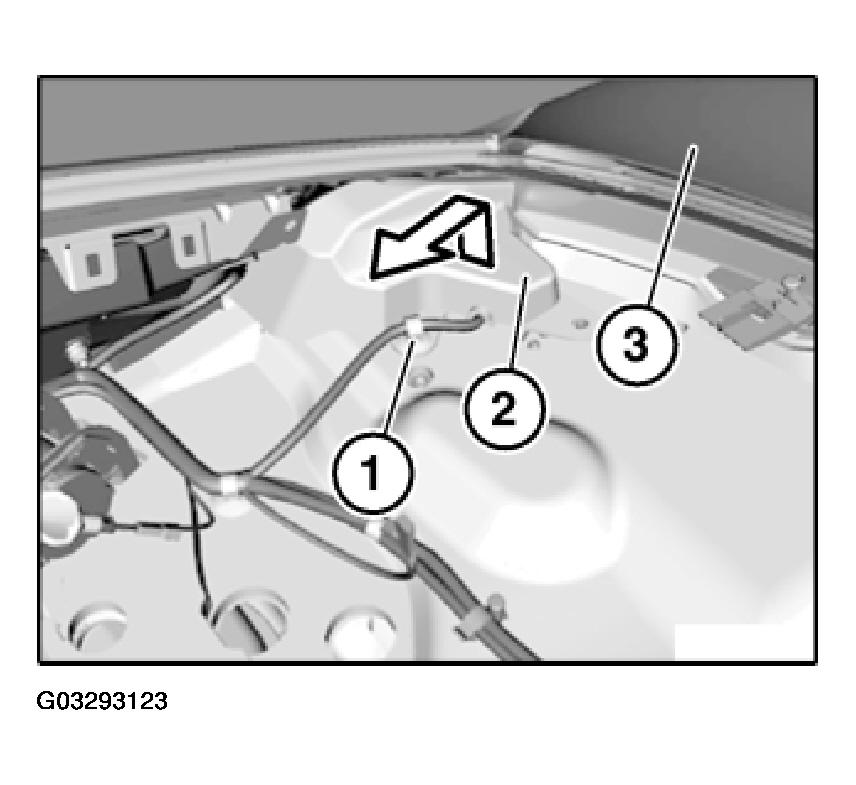

Fig 1: Removing Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

NOTE: Before nuts (3) are released, a 2nd person must open rear lid and hold angle transmitter (2).

Unscrew nuts (3).

Tightening torque, refer to 51 24 7AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

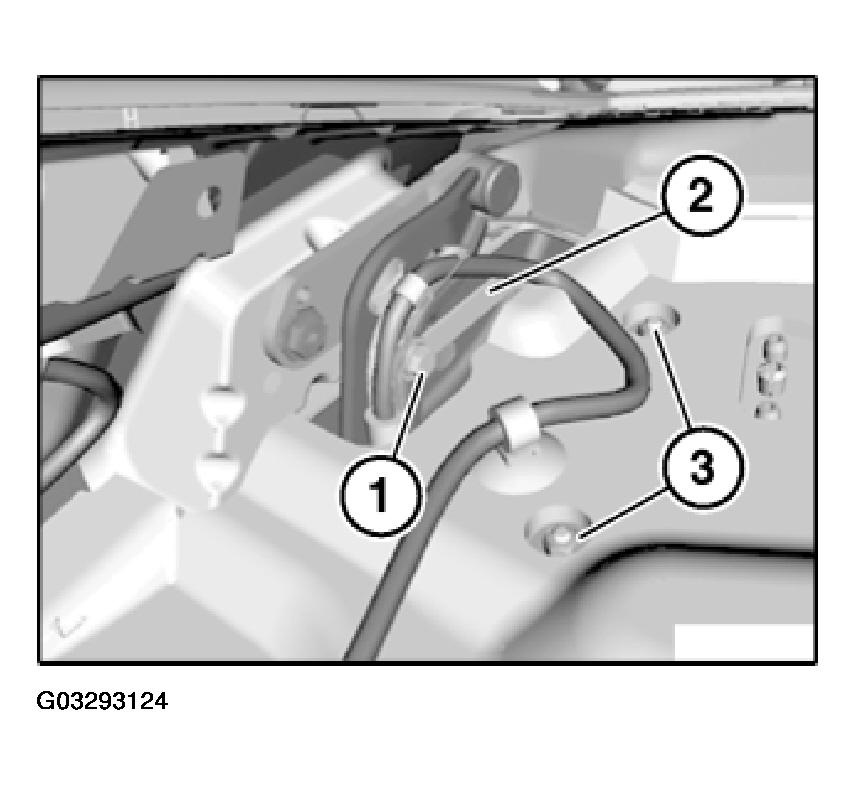

Fig 2: Locating Angle Transmitter Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove angle transmitter (2) with retaining bracket (3).

4) Right rear lid hinge.

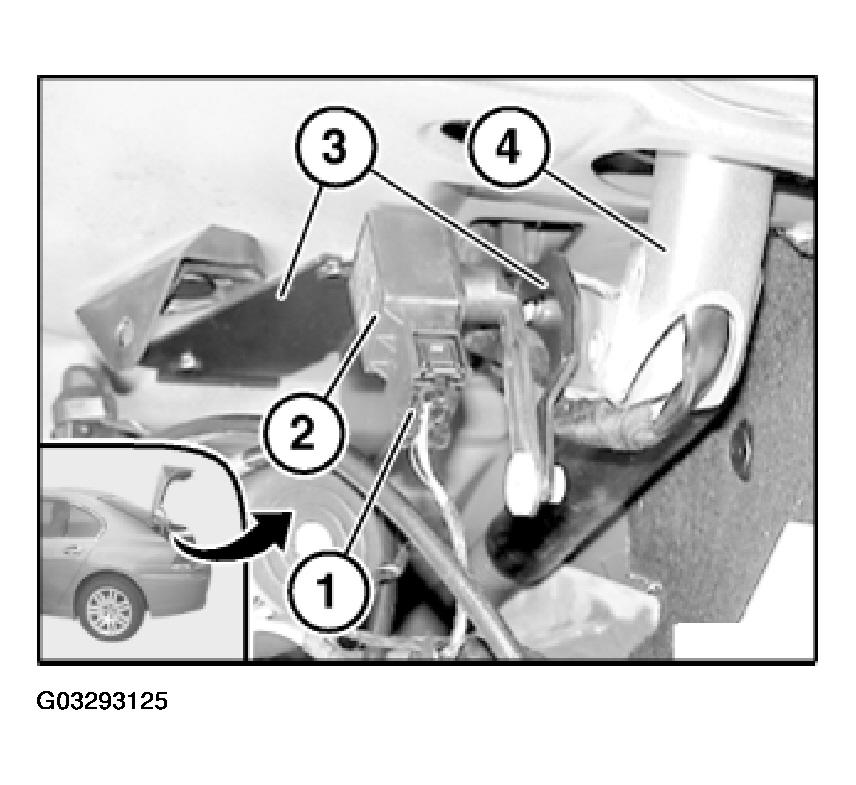

Fig 3: View Of Angle Transmitter With Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
