51 24 300 Removing And Installing Or Replacing Left Or Right Gas Strut For Rear Lid

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove luggage compartment wheel arch trim. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM and 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Left side only:

If necessary, remove transmit-receive unit incl. holder. Refer to 84 11 627 REMOVING AND INSTALLING (REPLACING) .

WARNING: Support rear lid with suitable equipment (danger of injury).

Left Side Only On Version With Automatic Rear Lid Actuation:

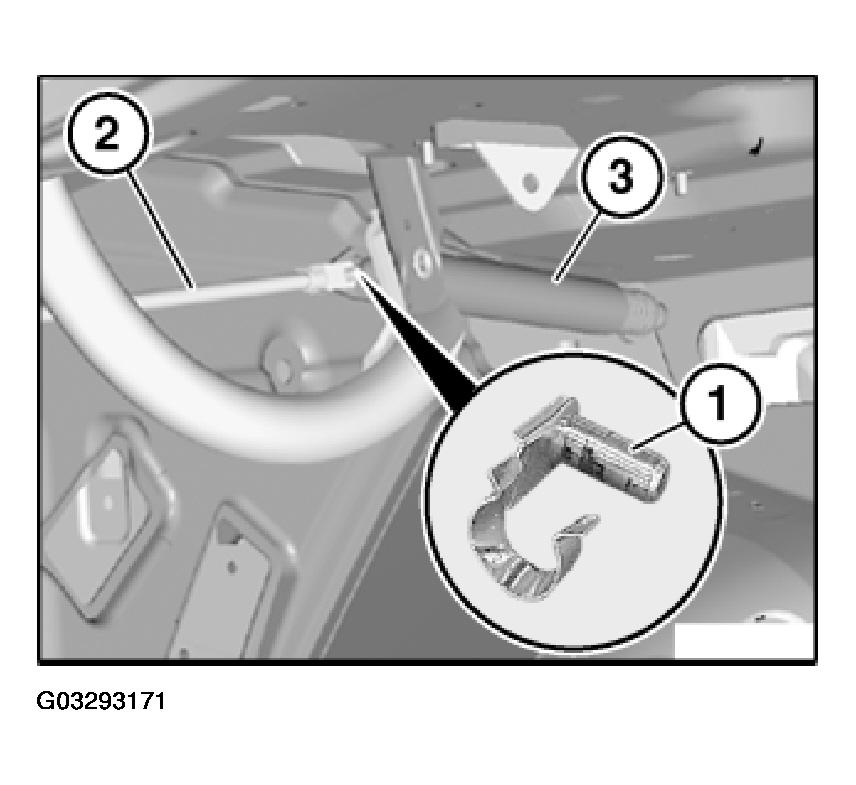

Release retainer (1) and remove hydraulic cylinder (2) from gas strut (3).

Fig 1: Removing Hydraulic Cylinder Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

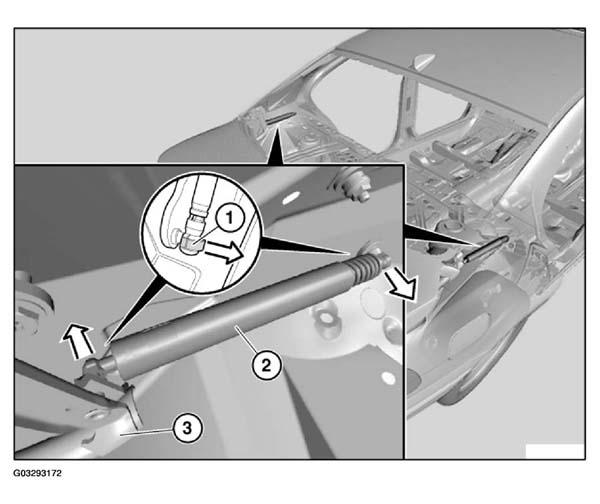

Lever out both retaining springs (1).

Lever out gas strut (2) from ball pins of side panel and rear lid hinge (3) and remove.

Fig 2: Removing Gas Strut

Courtesy of BMW OF NORTH AMERICA, INC.
