51 24 100 Removing And Installing/Replacing Rear Lid Lock (Upper Section)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove panel for rear lid. Refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .

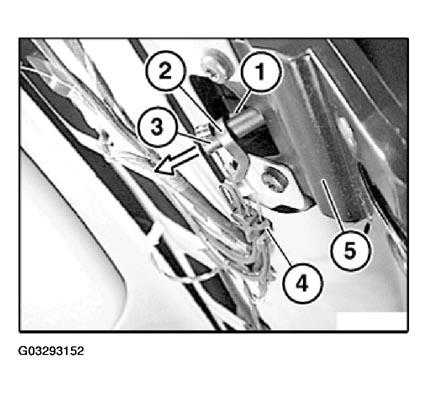

Unlock catch (1) and detach Bowden cables (2 and 3) from rear lid lock upper section (5).

Version With Manual Unlocking:

Installation:

Bowden cable (2) must be correctly positioned in guide (4).

Fig 1: Detaching Bowden Cables From Rear Lid Lock Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

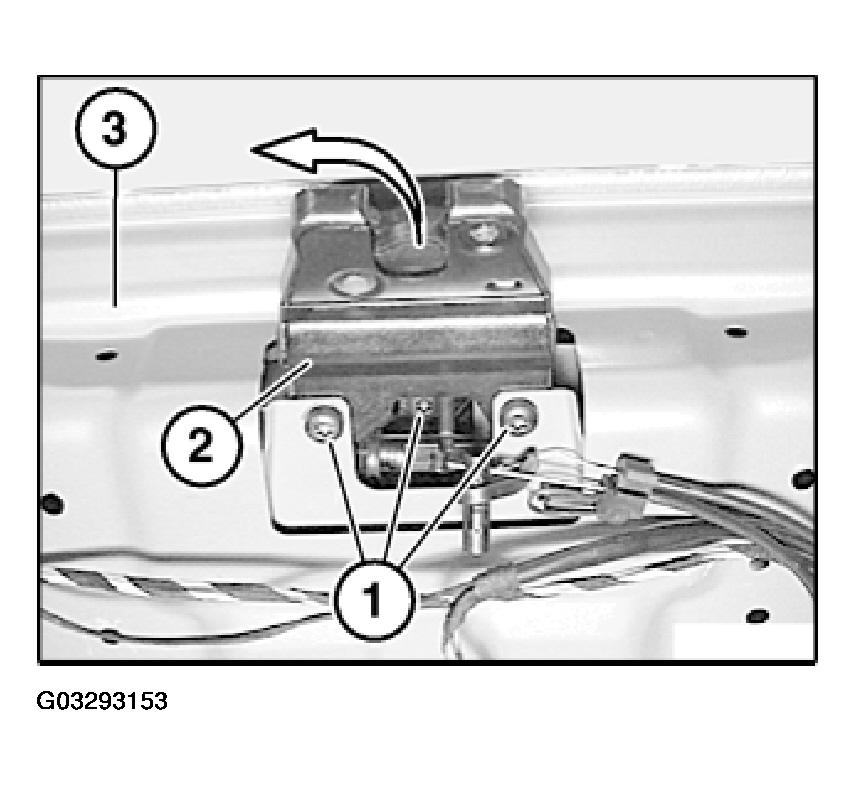

Release screws (1).

Unscrew rear lid lock upper section (2), disconnect plug connection and remove.

Tightening torque, refer to 51 24 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.

Adjust rear lid lock. Refer to 51 24 004 ADJUSTING REAR LID LOCK (LOWER SECTION OF REAR LID LOCK) .

Replacement:

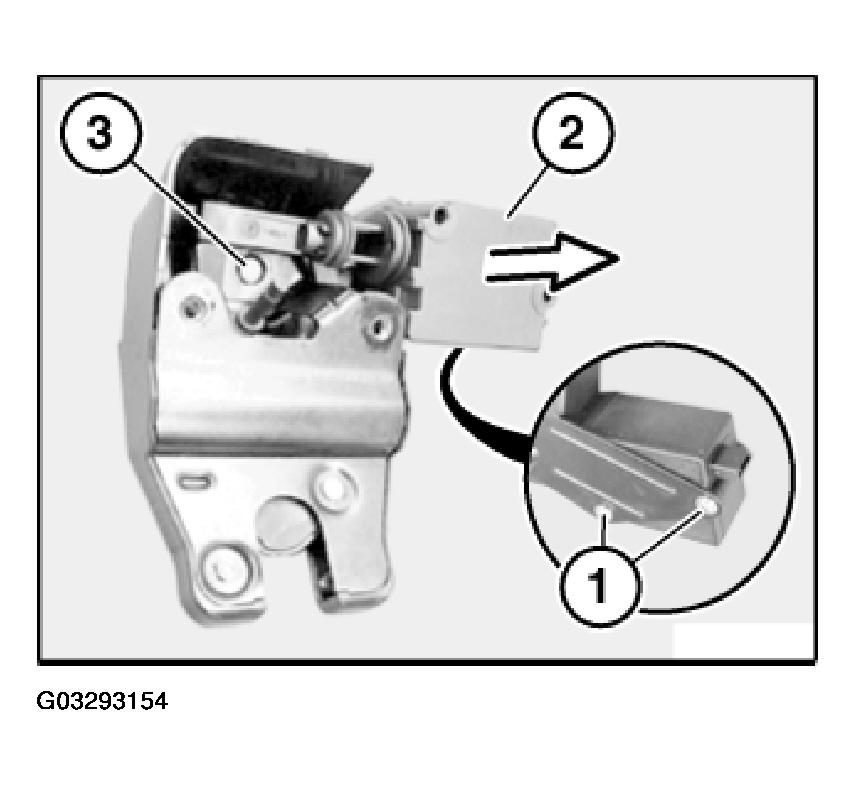

Release screws (1).

Detach servodrive (2) from rear lid lock upper section (3) in direction of arrow.

Fig 3: Detaching Servodrive From Rear Lid Lock Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.
