51 24 065 Removing And Installing/Replacing Bowden Cable For Manual Rear Lid Unlocking (Up To 03/2005)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear light. Refer to 63 21 186 REMOVING AND INSTALLING/REPLACING REAR LIGHT (ON CENTER OF REAR LID) .
Remove panel for rear lid at bottom. Refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .

Detach cover (1) from lock element (2).

NOTE: Illustration shows version without manual rear lid unlocking. See Fig 1.

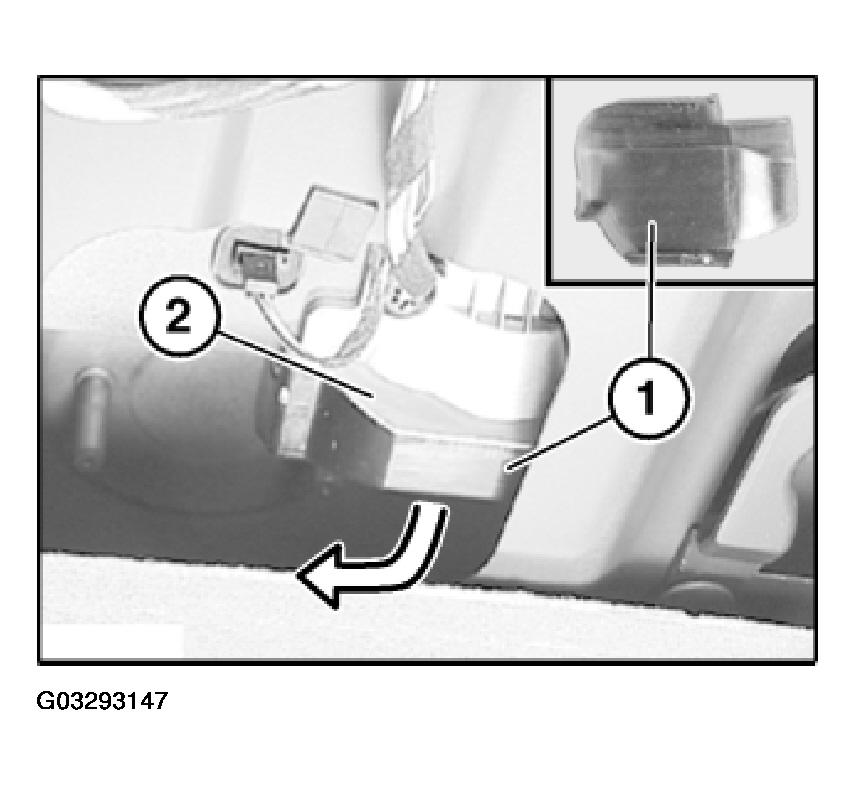

Fig 1: Detaching Cover From Lock Element

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out securing plugs (1).

Lever out catches (2) and remove Bowden cable guide (3).

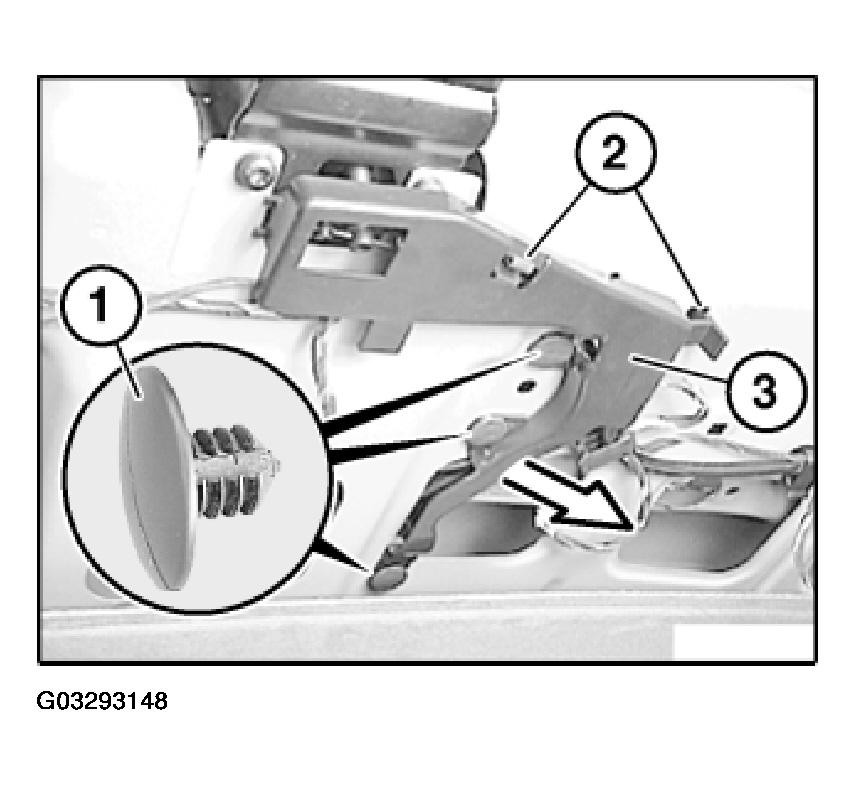

Fig 2: View Of Securing Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (1) and detach Bowden cables (2 and 3) from rear lid lock upper section (5).

Lever Bowden cable (2) out of guide (4).

Installation:

Bowden cable (2) must be correctly positioned in guide (4).

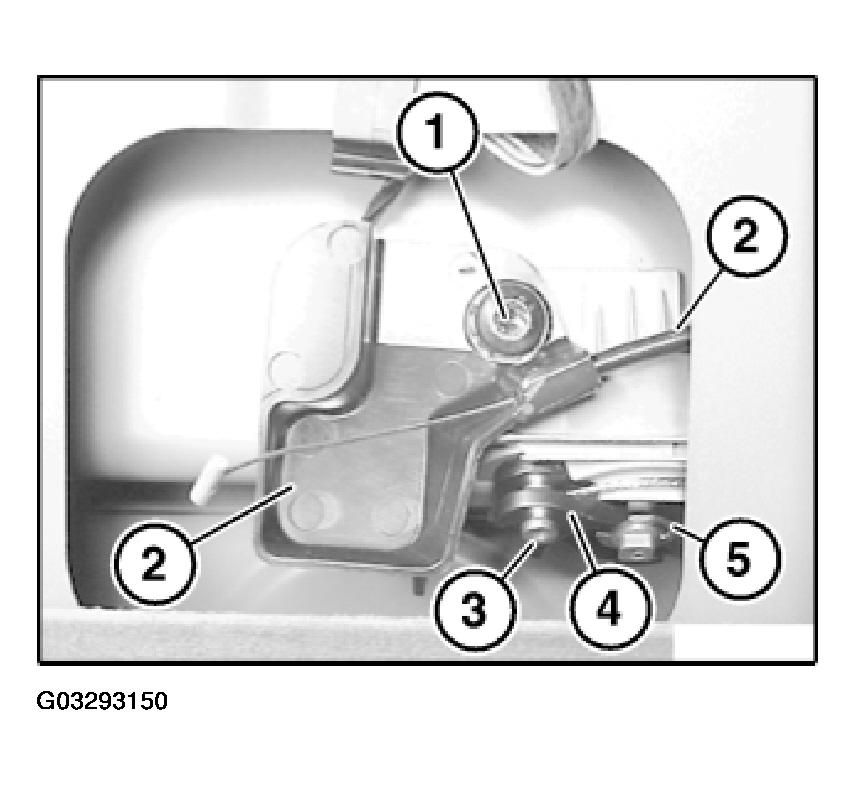

Fig 3: Detaching Bowden Cables From Rear Lid Lock Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Feed out Bowden cable with holder (2) from rear lid.

Installation:

Retainer (5) must be correctly fitted.

Bowden cable (3) and retainer (5) must be correctly fitted on lock element (4).

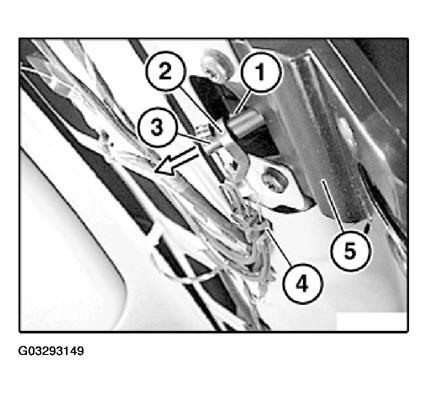

Fig 4: Removing Bowden Cable With Holder From Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Overview Of Bowden Cables On Rear Lid Lock:

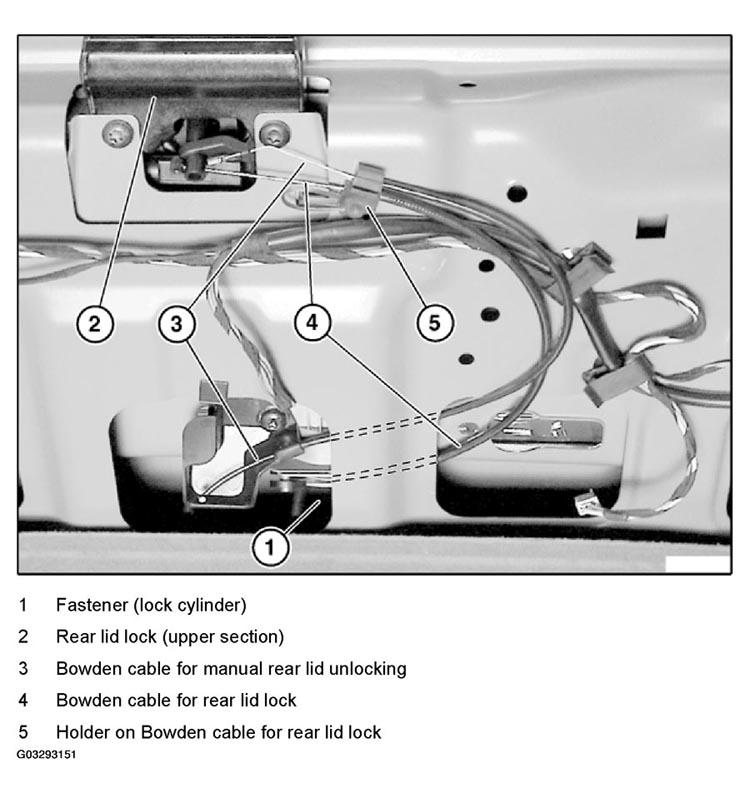

Fig 5: Identifying Bowden Cables On Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.
