51 13... Removing And Installing/Replacing Trim On Front Grille Center Section

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove decorative frame from front grille. Refer to 51 13 007 REMOVING AND INSTALLING/REPLACING TRIM RING FOR FRONT GRILLE CENTER SECTION .

Release catches (1 and 2) and remove trim.

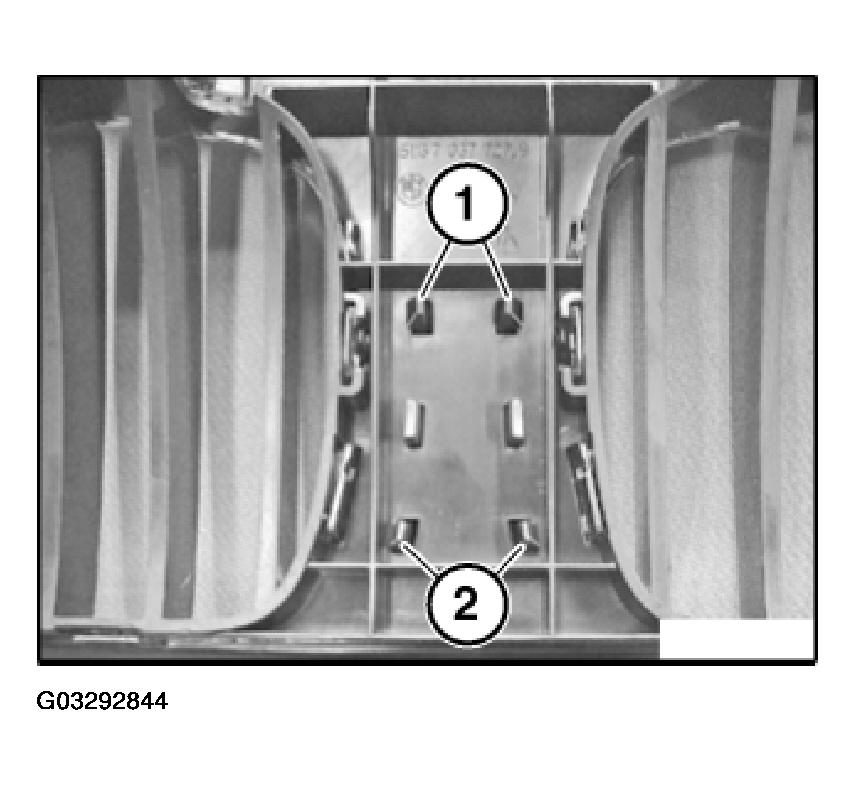

Fig 1: Locating Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guides (2) on trim (3) must not be damaged.

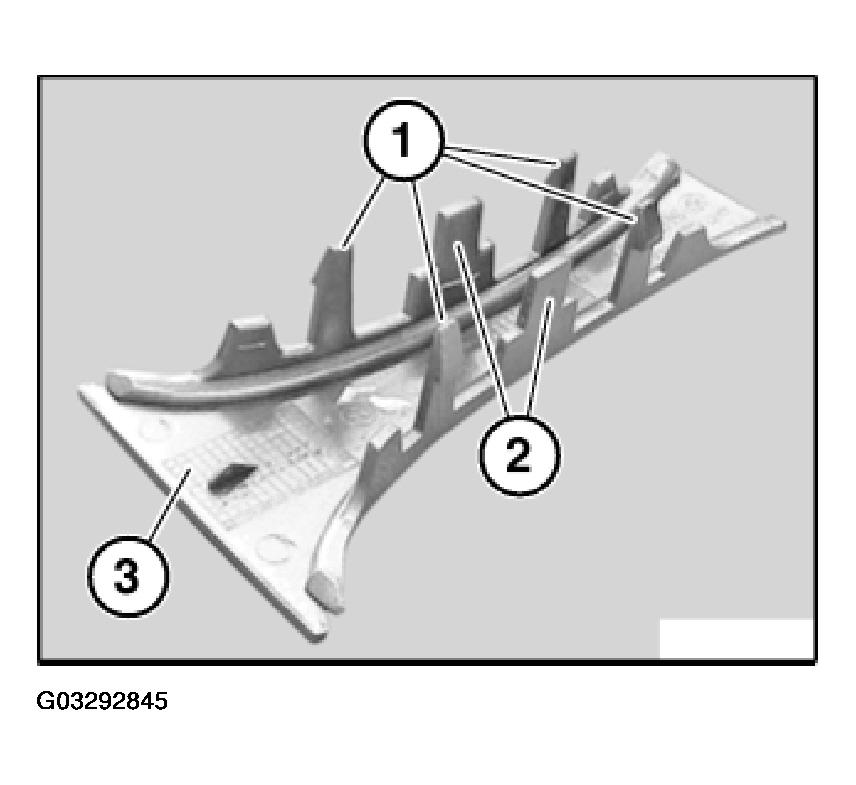

Fig 2: View Of Catches And Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
