51 13 007 Removing And Installing/Replacing Trim Ring For Front Grille Center Section

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front grille center section. Refer to 51 13 000 REMOVING AND INSTALLING/REPLACING FRONT GRILLE CENTER SECTION .

Lever out catches (1 and 2) and remove trim ring.

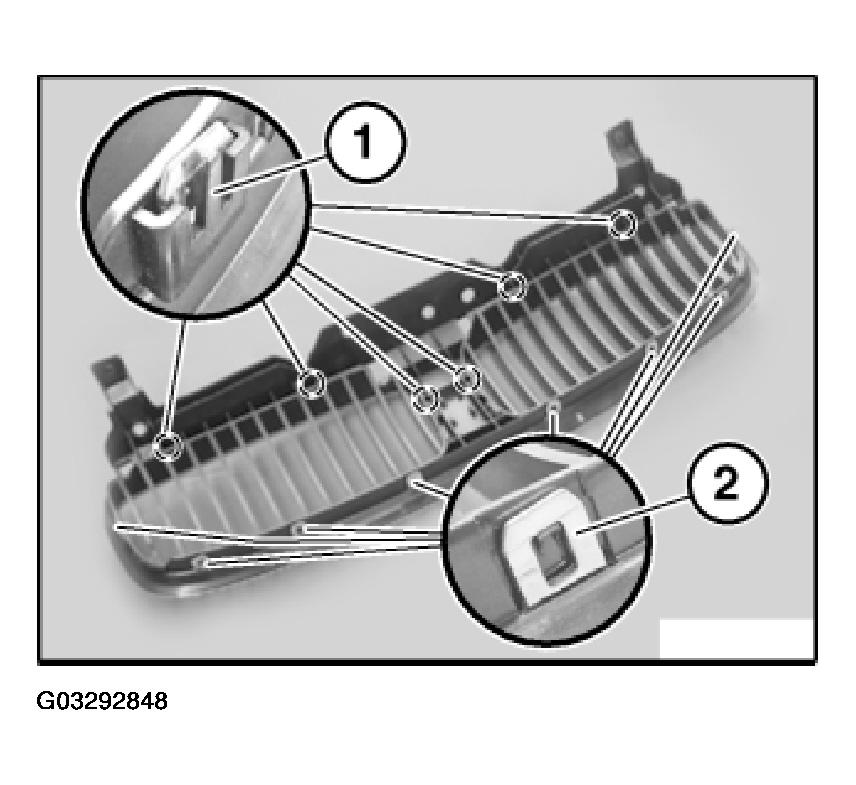

Fig 1: View Of Catches And Trim Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guides on trim ring (2) must not be damaged.

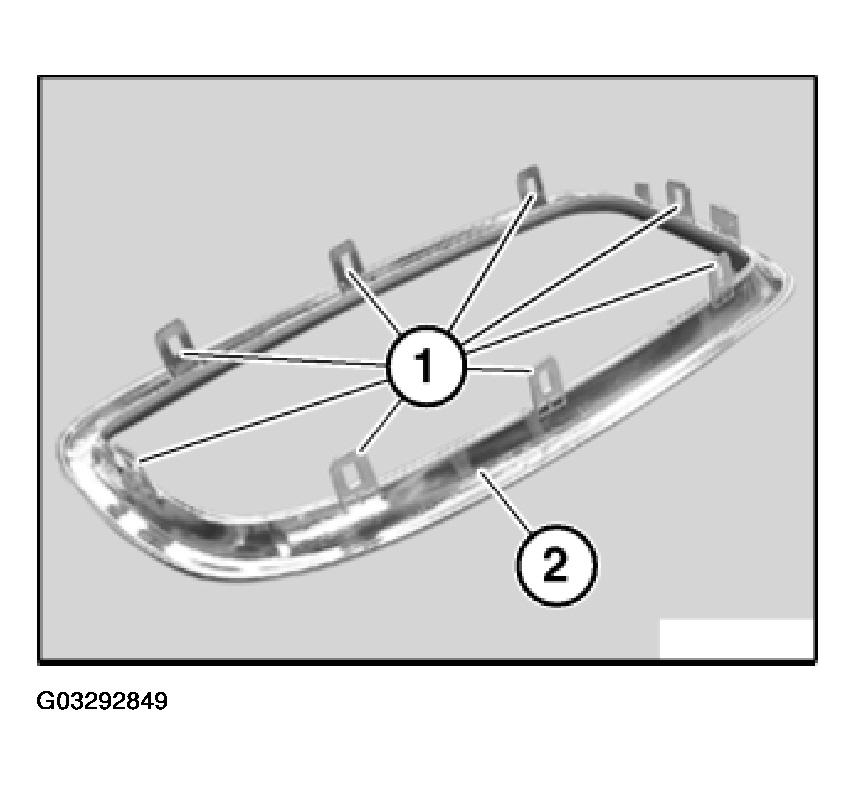

Fig 2: Locating Catches And Guides On Trim Ring

Courtesy of BMW OF NORTH AMERICA, INC.
