51 13 401 Removing And Installing/Replacing Handle Strip (On Rear Lid)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove both rear lights in rear lid. Refer to 63 21 183 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (UP TO 03/2005) (ON REAR LID) .

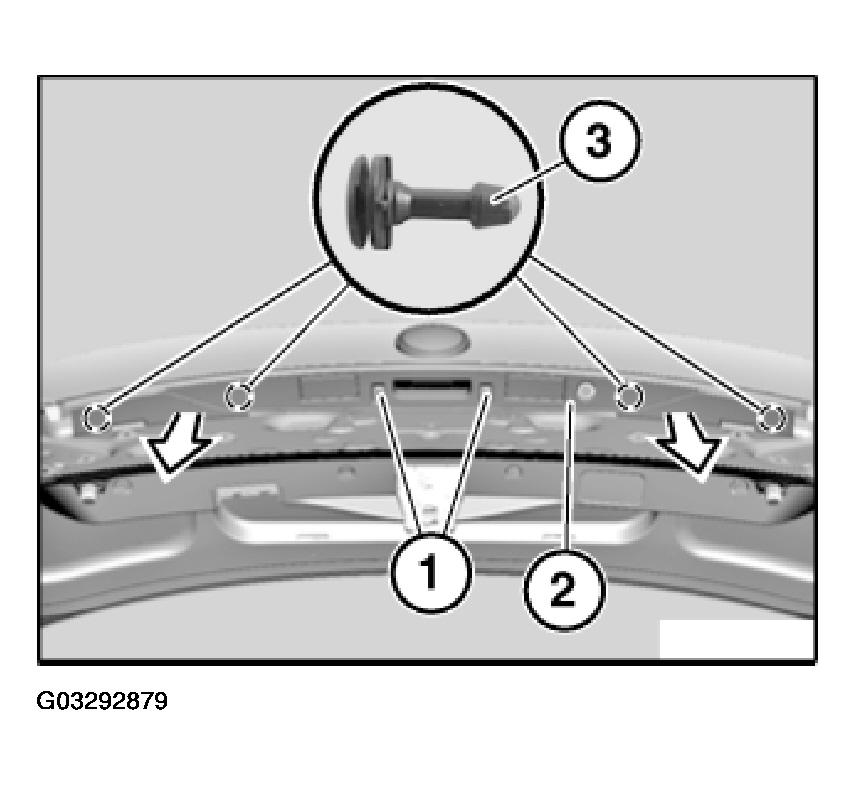

Release screws (1).

Snap handle strip (2) in direction of arrow out of clips (3) and remove.

Fig 1: Locating Handle Strip Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

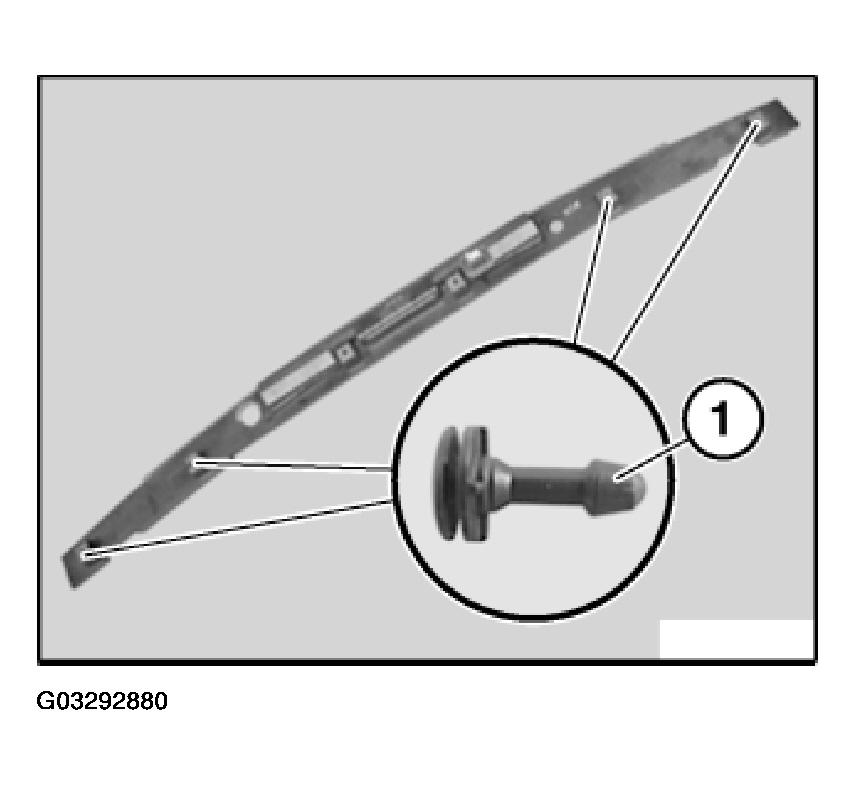

If necessary, replace faulty clips (1).

Replacement:

Remove both bulbs for number/licence plate light. Refer to 63 99 401 REPLACING BULB FOR LEFT OR RIGHT LICENSE PLATE LIGHT .

Fig 2: Removing Trim Clips

Courtesy of BMW OF NORTH AMERICA, INC.
