51 34... Removing And Installing/Replacing Trim On Window Frame On Left Or Right Rear Door (Rear/Outer)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Specification without roller sun blind:

Remove cover on door window frame. Refer to 51 34 160 REMOVING AND INSTALLING/REPLACING COVER ON DOOR WINDOW FRAME (REAR DOOR) AT INSIDE LEFT OR RIGHT .

Specification with roller sun blind:

Remove roller sun blind from fixed side window. Refer to 51 16 400 REMOVING AND INSTALLING OR REPLACING ROLLER SUN BLIND AT FIXED SIDE WINDOW OF LEFT OR RIGHT REAR DOOR .

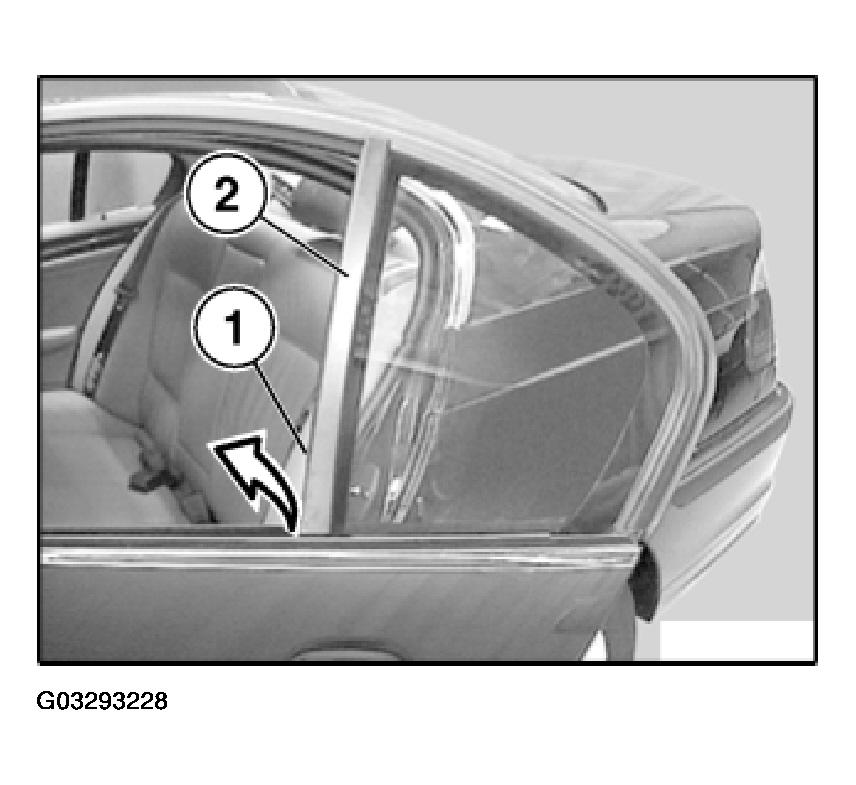

Pull rubber guide (1) out of trim (2).

Fig 1: View Of Rubber Guide In Trim

Courtesy of BMW OF NORTH AMERICA, INC.

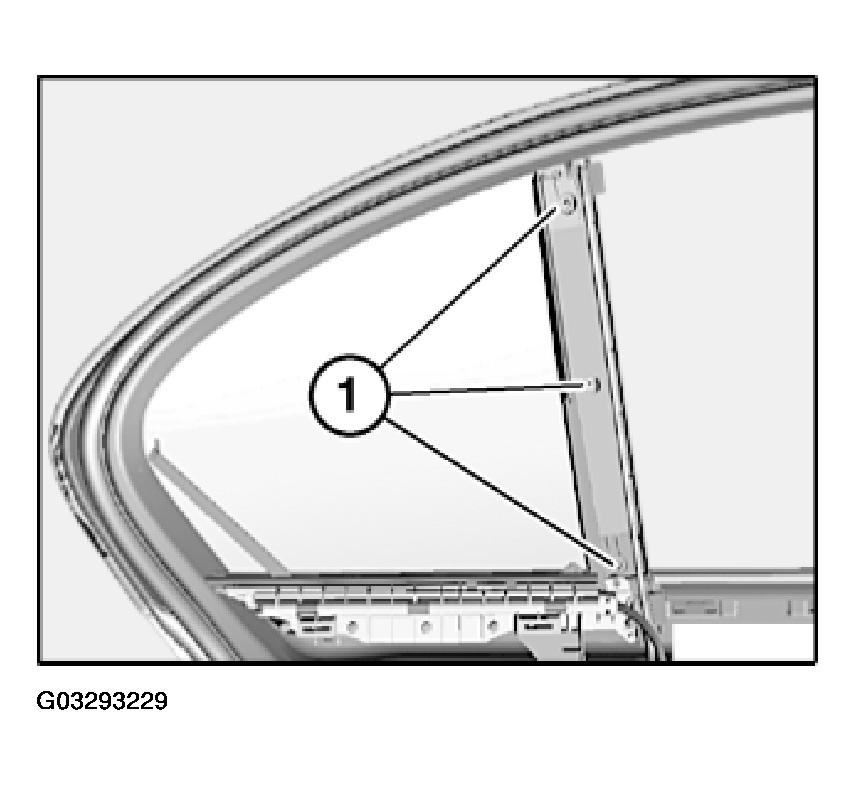

Grip trim firmly and release screws (1).

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

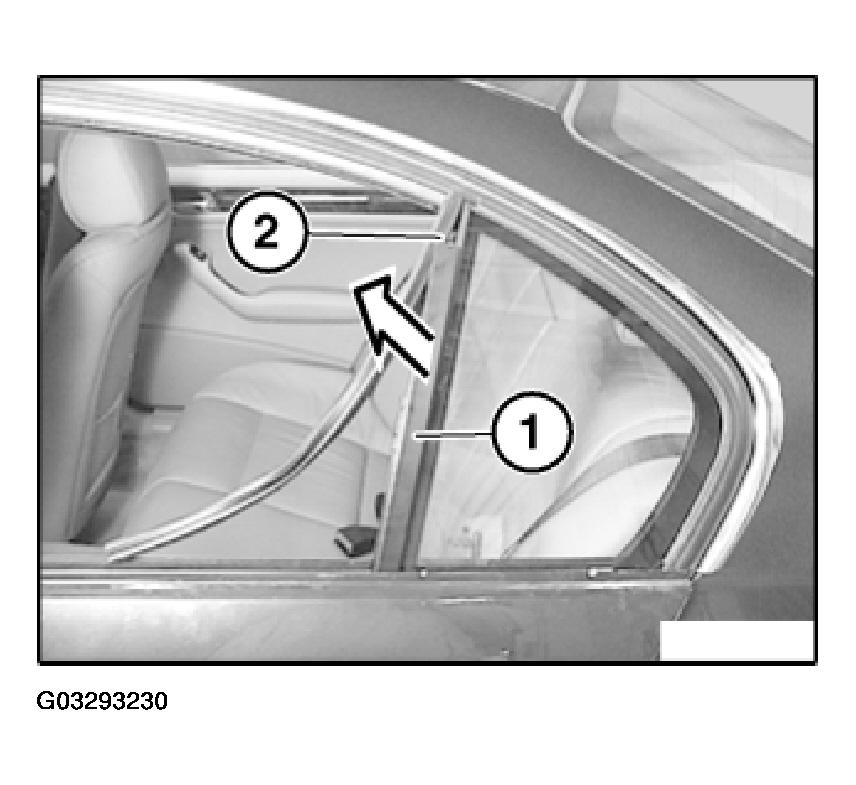

Push trim (1) downwards from rubber guide (2) and remove towards top.

Fig 3: Removing Trim From Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

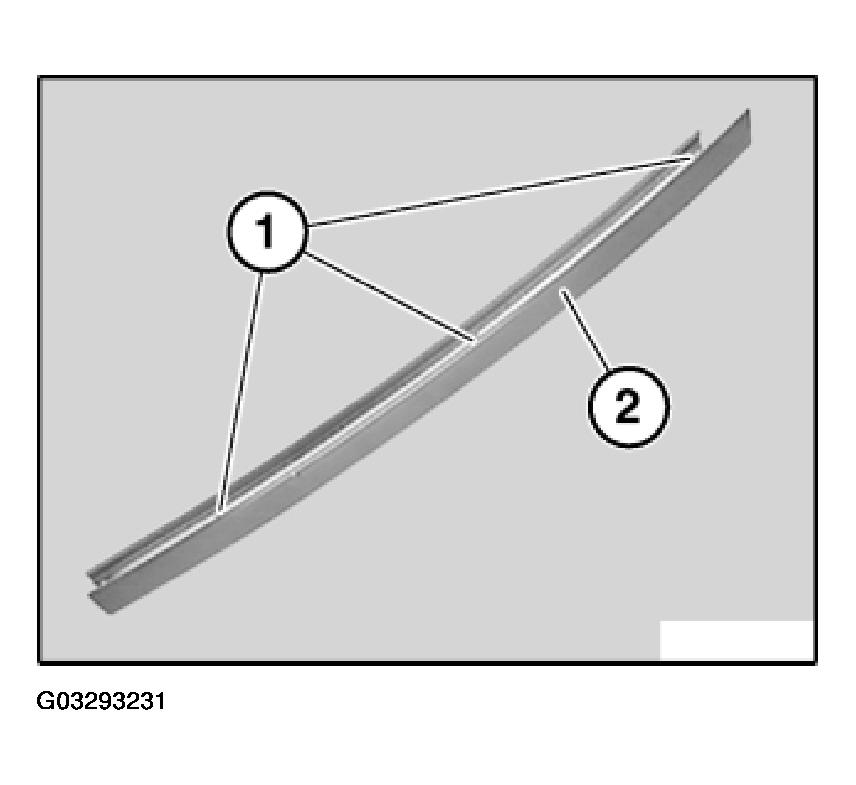

Threads (1) of trim (2) must not be damaged.

Fig 4: Locating Threads Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
