51 34 160 Removing And Installing/Replacing Cover On Door Window Frame (Rear Door) At Inside Left Or Right
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .
Version with roller sun blind only:
- Remove adapter for roller sun blind. Refer to 51 16... REMOVING AND INSTALLING/REPLACING ADAPTER FOR ROLLER SUN BLIND ON LEFT OR RIGHT REAR DOOR .

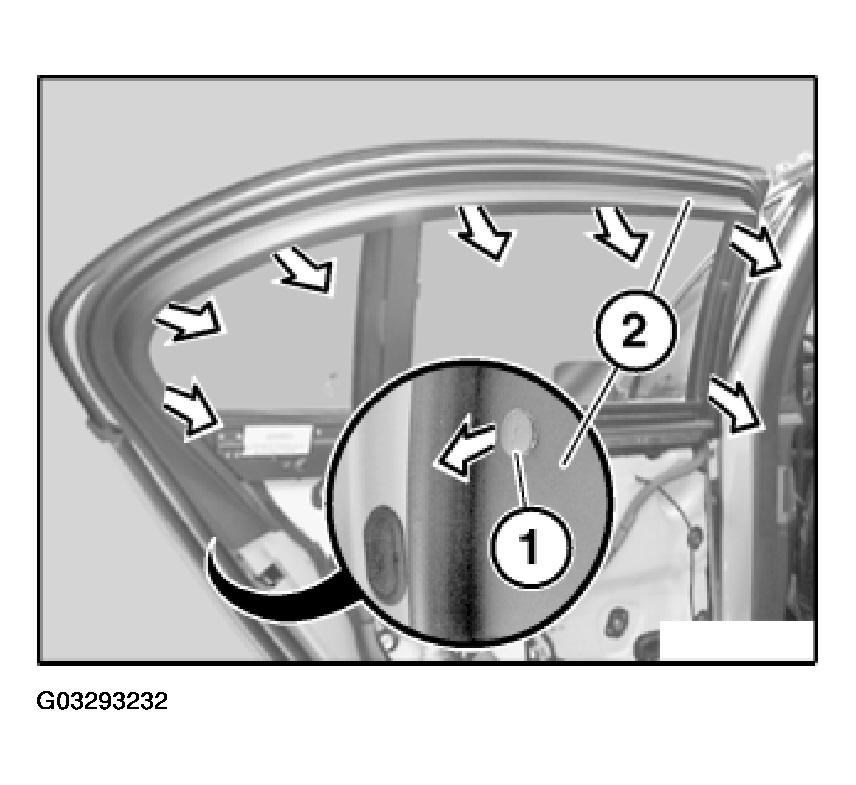

Remove rivet (1) from cover (2).
Detach cover (2) in direction of arrow from rear door.
Installation:
Make sure cover (2) is correctly seated on door seal.
