51 34 211 Replacing Rubber Guide For Rear Left Or Right Door Window

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

Necessary Preliminary Tasks:

Remove decorative strip on window frame of rear door. Refer to 51 34 380 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP ON WINDOW FRAME OF REAR DOOR (OUTER) ON LEFT OR RIGHT .

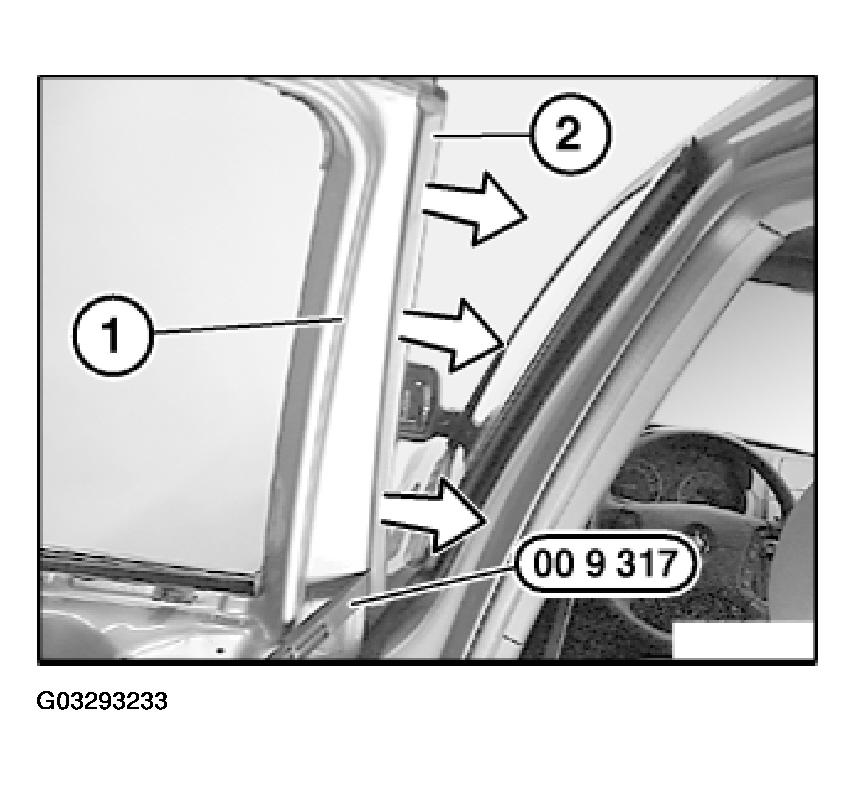

Lever out rubber guide (2) on door window frame (1) with special tool 00 9 317.

Fig 1: Removing Rubber Guide From Door Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

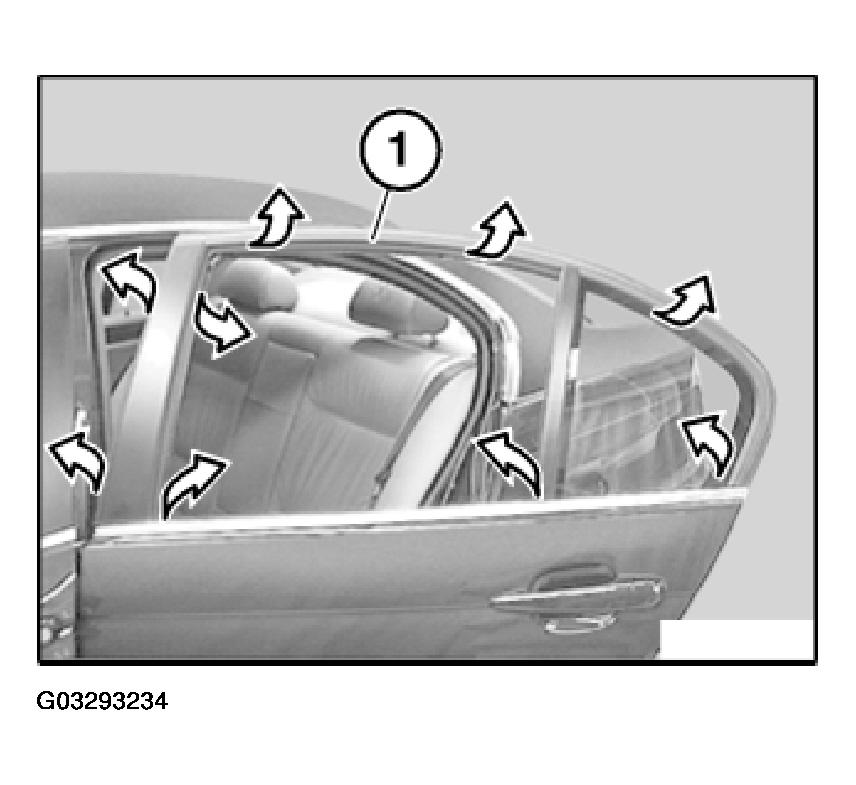

Pull rubber guide (1) out of window guide at front and rear.

Pull rubber guide (1) off door window frame and remove.

Installation:

Prior to installation, coat rubber guide (1) with soapy solution (washing-up liquid).

Ensure rubber guide (1) is correctly seated in rubber guide.

Fig 2: Removing Rubber Guide From Door Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.
