51 34 380 Removing And Installing/Replacing Decorative Strip On Window Frame Of Rear Door (Outer) On Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear window cavity cover strip. Refer to 51 22 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP, REAR LEFT OR RIGHT .

Pull off decorative strip (1) in outwards direction.

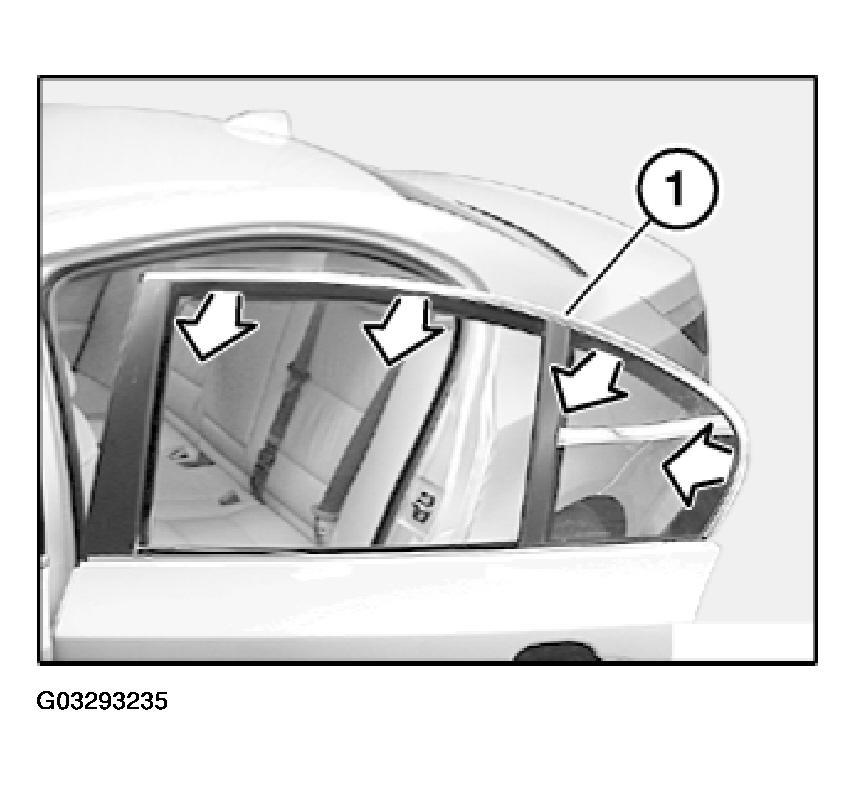

Fig 1: Removing Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

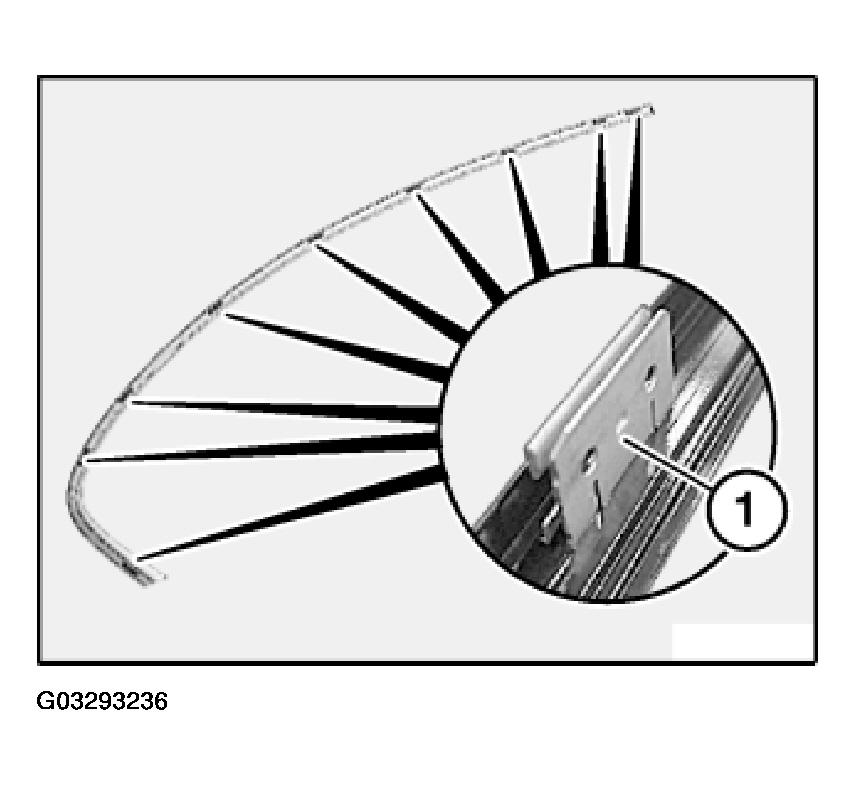

Fig 2: Locating Decorative Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
