51 12 825 Removing And Installing/Replacing Guide For Rear Center Bumper

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove both brackets for bumper (on rear lights). Refer to 51 12 801 REPLACING BRACKET FOR REAR BUMPER AT LEFT OR RIGHT .

Release nuts (1) and remove guide (2).

NOTE: With build date up to 03/2005 nuts (1) are already released.

Guide (2) can be removed.

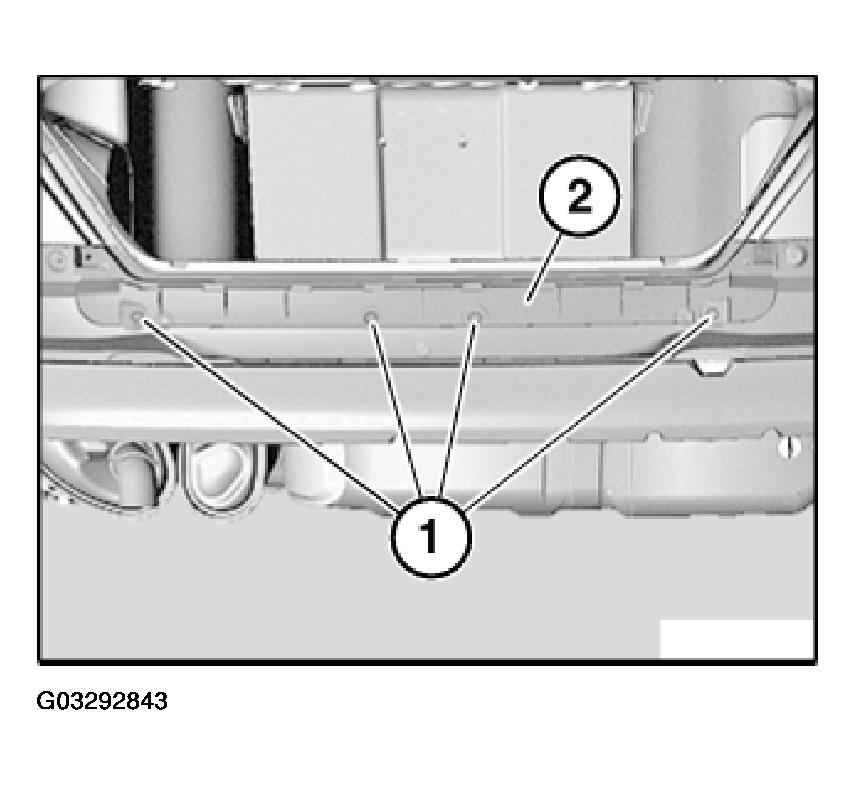

Fig 1: Locating Rear Center Bumper Nuts And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
