51 12 801 Replacing Bracket For Rear Bumper At Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove bumper trim. Refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

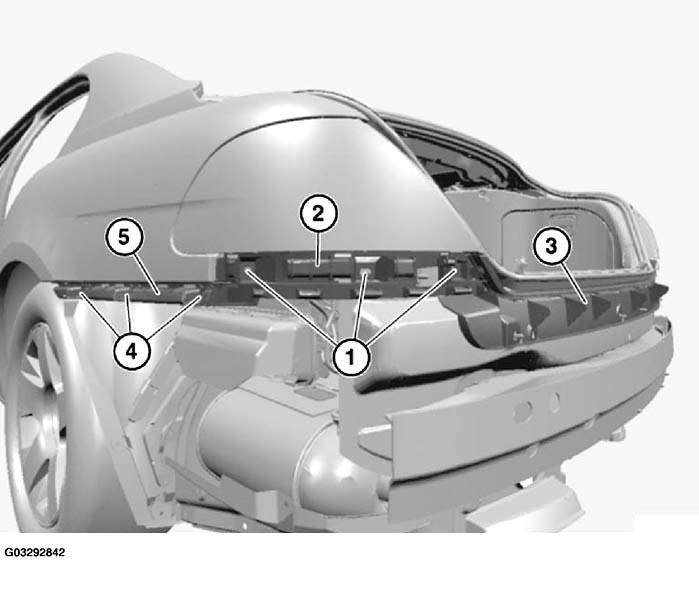

Fig 1: View Of Bumper Trim
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When removing guide (3), it is only necessary to remove bracket (2) on left/right.

Release nuts (1) on left/right.

Remove bracket (2) on left/right.

Release screws (4) on left/right.

Remove bracket (5) on left/right.
