51 12 157 Replacing Rear Bumper Trim

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove bumper trim. Refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .
Build date from 03/2005:
Remove all rear body moldings. Refer to 51 12 432 REPLACING CENTRAL BODY MOLDING ON REAR BUMPER and 51 12 435 REPLACING LEFT OR RIGHT BODY MOLDING FROM SIDES OF REAR BUMPER .

Release expander rivets (1 and 2).

Remove thermal insulation (3).

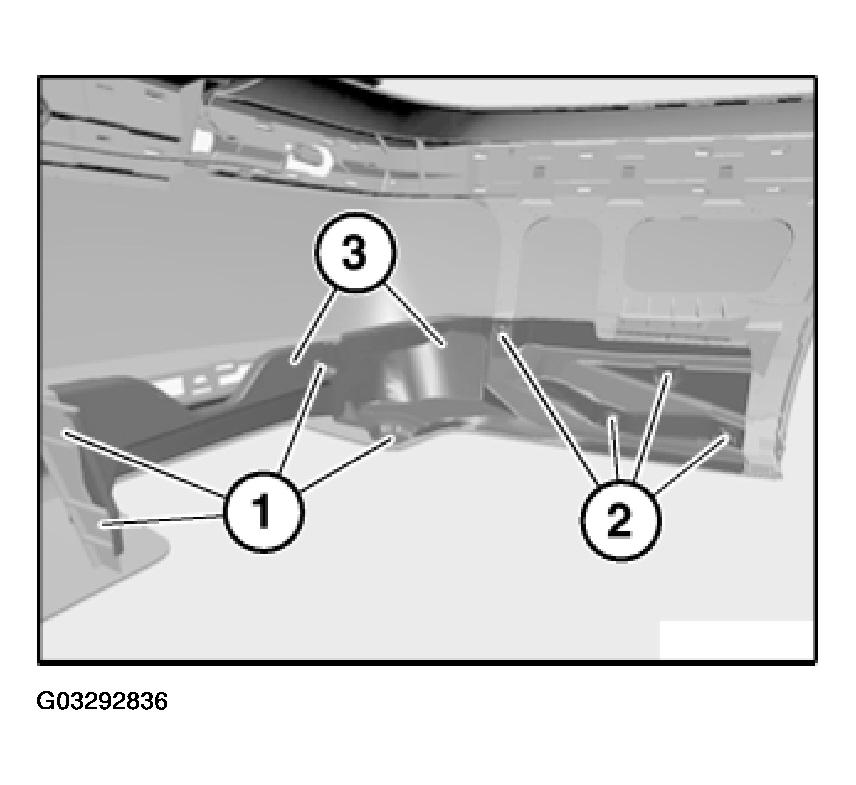

Fig 1: Locating Thermal Insulation Expander Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Remove flap (1) for towing lug.

If necessary, unclip PDC wiring harness (2) and antenna (3) and remove.

If necessary, remove flap and frame of trailer tow hitch.

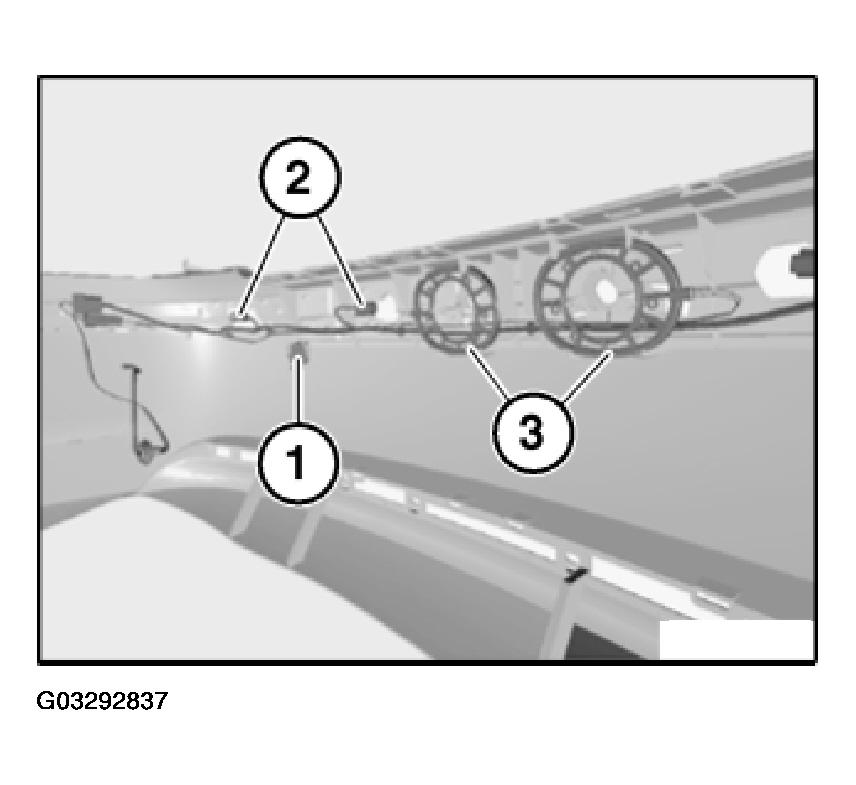

Fig 2: View Of PDC Wiring Harness And Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
