51 16 190 Removing And Installing/Replacing Lock Cylinder In Center Armrest

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove center armrest closing cover.

Refer to: Refer to 51 16 197 REMOVING AND INSTALLING/REPLACING DECORATIVE TRIM ON CENTER ARMREST .

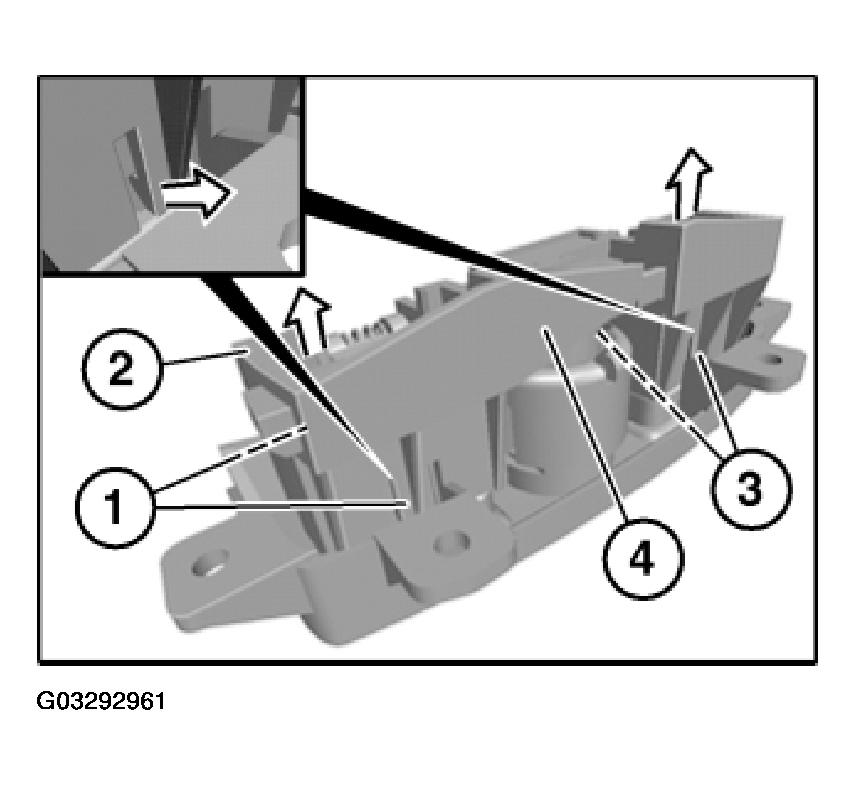

Actuate catches (1 and 3) gently in direction of arrow and detach housings (2 and 4) in direction of arrow.

Installation:

Make sure catches (1 and 3) engage correctly.

Fig 1: View Of Housings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

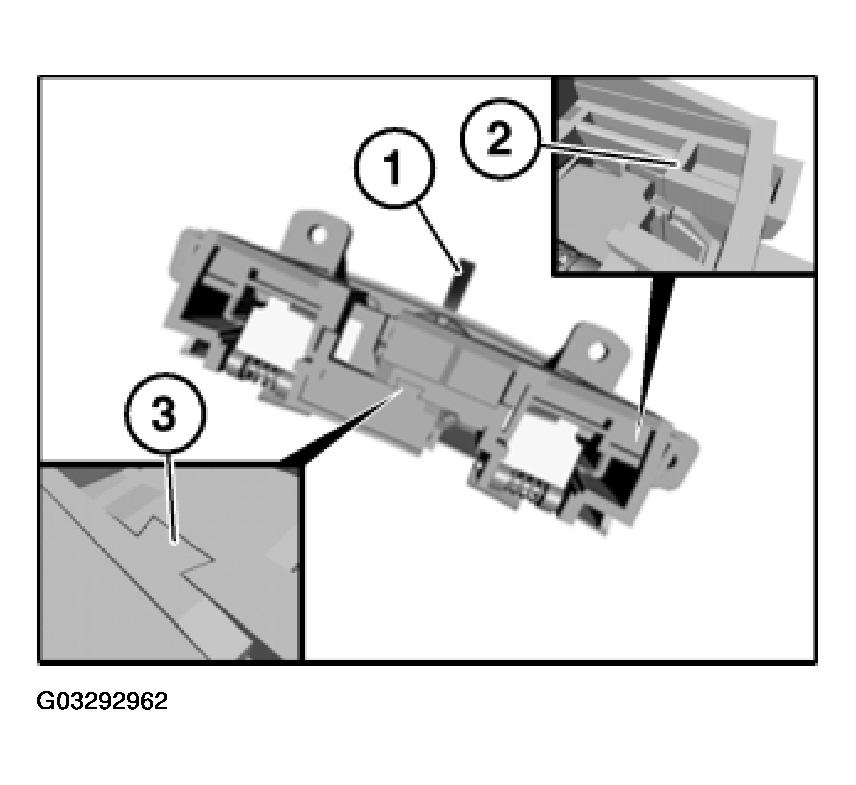

Move key (1) into illustrated (vertical) position.

Slide in lock (2) as far as it will go.

Guide (3) must be flush after housing halves have been fitted.

Fig 2: Joining Housing Halves

Courtesy of BMW OF NORTH AMERICA, INC.

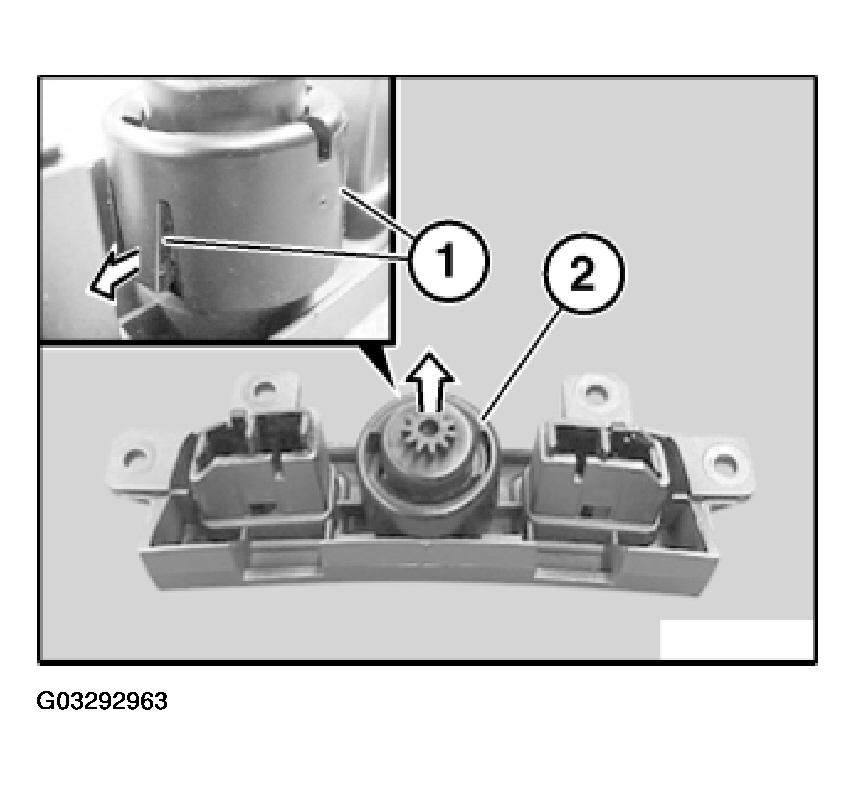

Actuate catches (1) gently in direction of arrow and detach housing (2) in direction of arrow.

Installation:

Make sure catches (1) engage correctly.

Fig 3: Locating Housing Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

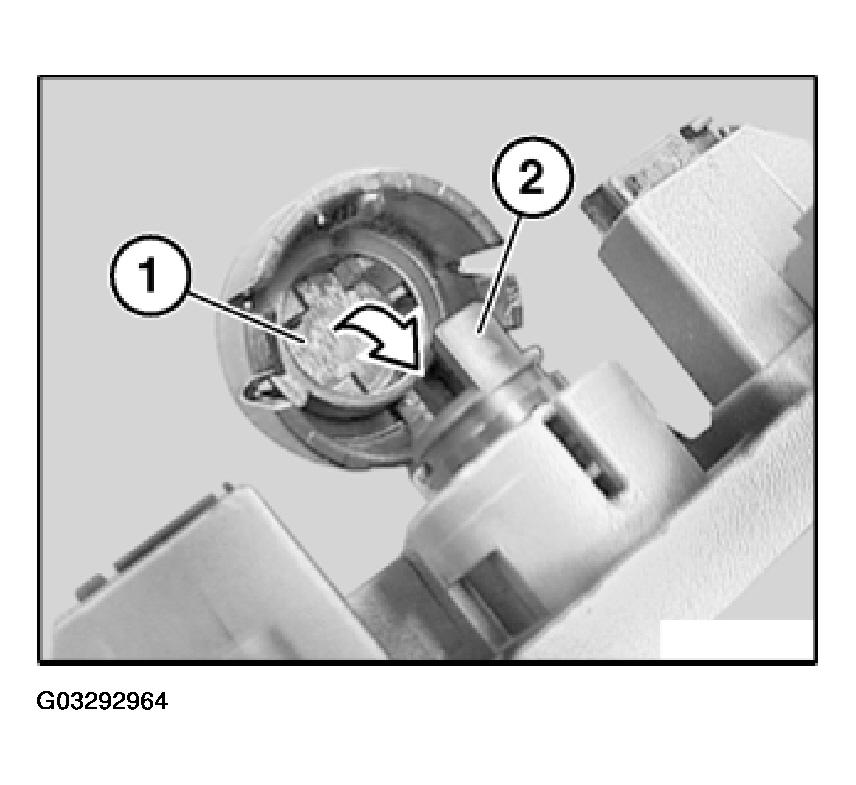

Insert (1) must be correctly seated on lock cylinder (2).

Fig 4: Installing Insert On Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

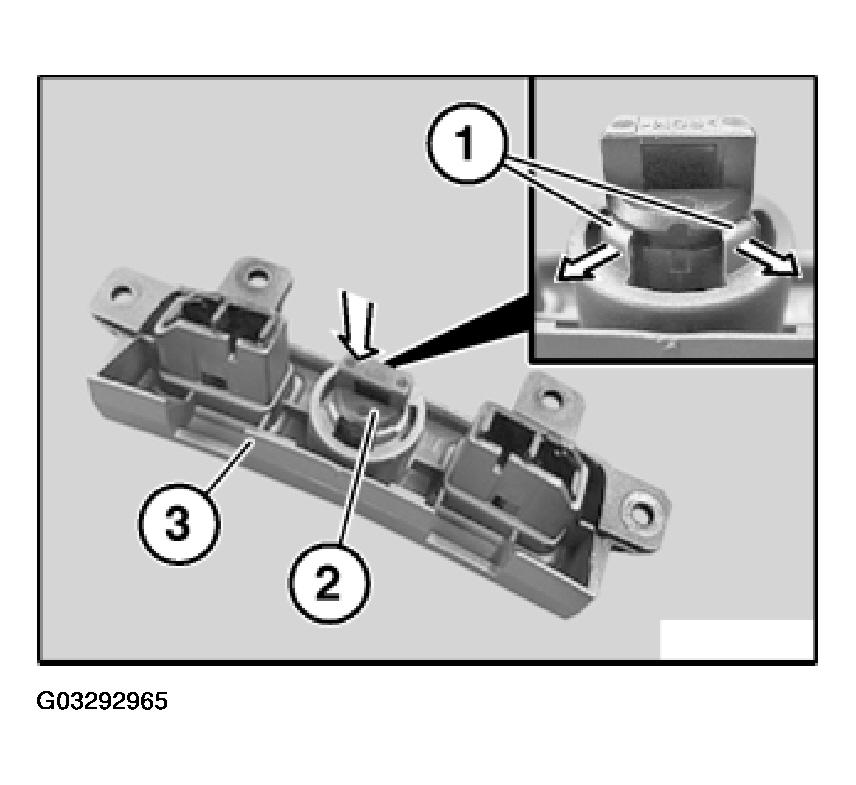

Actuate catches (1) gently in direction of arrow and press lock cylinder (2) in direction of arrow out of housing (3).

Installation:

Make sure catches (1) engage correctly.

Fig 5: View Of Lock Cylinder Catches

Courtesy of BMW OF NORTH AMERICA, INC.
