51 16 197 Removing And Installing/Replacing Decorative Trim On Center Armrest

Necessary Preliminary Tasks:

• Remove center armrest (front). Refer to 51 16 195 REMOVING AND INSTALLING CENTER ARMREST (FRONT) .
• Remove control unit in center armrest (front). Refer to 61 31 152 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT IN CENTER ARMREST AT FRONT .
• Remove switch combination for seat adjustment on left and right. Refer to 61 31 203 REPLACING SWITCH COMBINATION FOR SEAT ADJUSTMENT .

Version With Rear Compartment Monitor:

• Remove rear compartment monitor. Refer to 65 50 120 REMOVING AND INSTALLING/REPLACING REAR COMPARTMENT MONITOR .

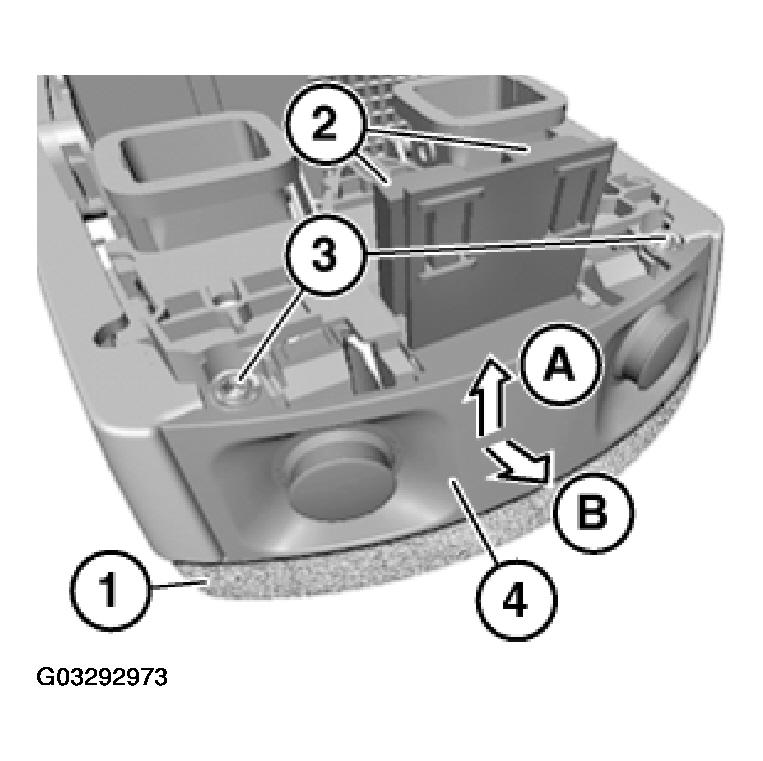

Unlock plug (2) and feed out towards bottom.

Release screws (3).

Press trim (4) in direction of arrow (A) and press out in direction of arrow (B) from inside outwards.

Fig 1: Removing Trim Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) are not damaged; if necessary, replace trim (2).

Fig 2: View Of Guides

Courtesy of BMW OF NORTH AMERICA, INC.

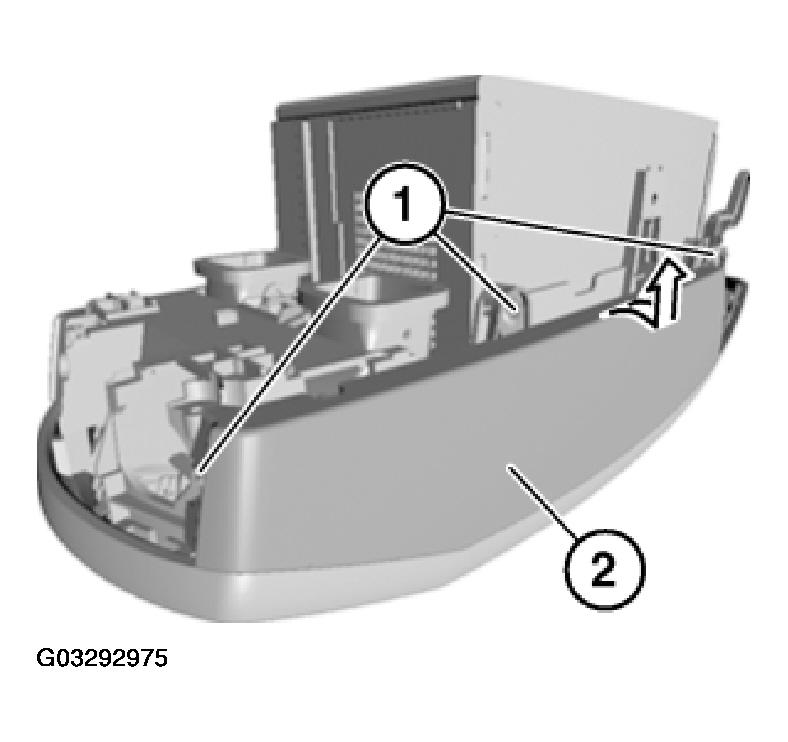

Release screws (1) on left/right.

Remove center armrest panel (2) on left/right in direction of arrow.

Fig 3: Locating Center Armrest Panel Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left/right.

Detach carrier (2) from decorative trim (3).

Fig 4: Identifying Carrier And Decorative Trim

Courtesy of BMW OF NORTH AMERICA, INC.

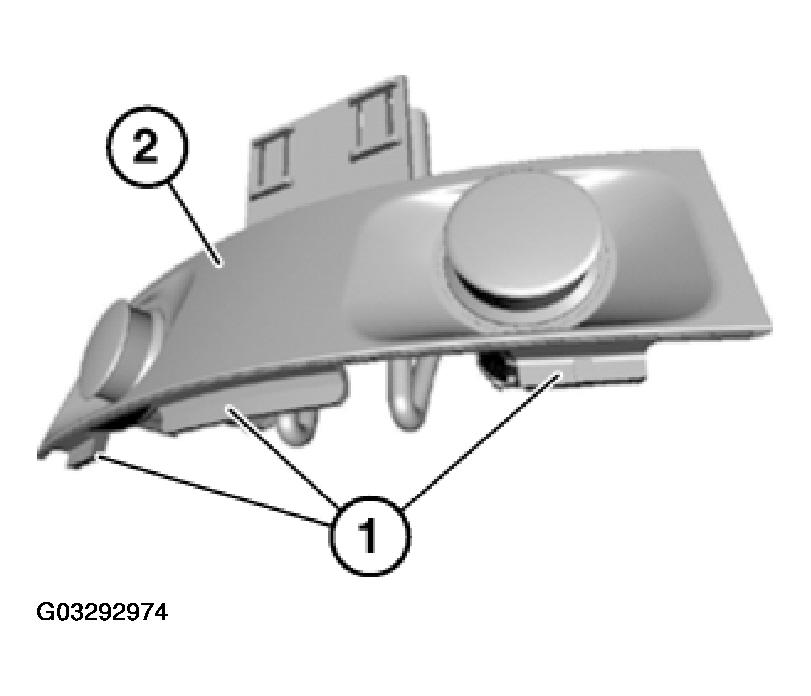

Release screws (1).

Remove controller (2) in direction of arrow.

Fig 5: Removing Controller And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

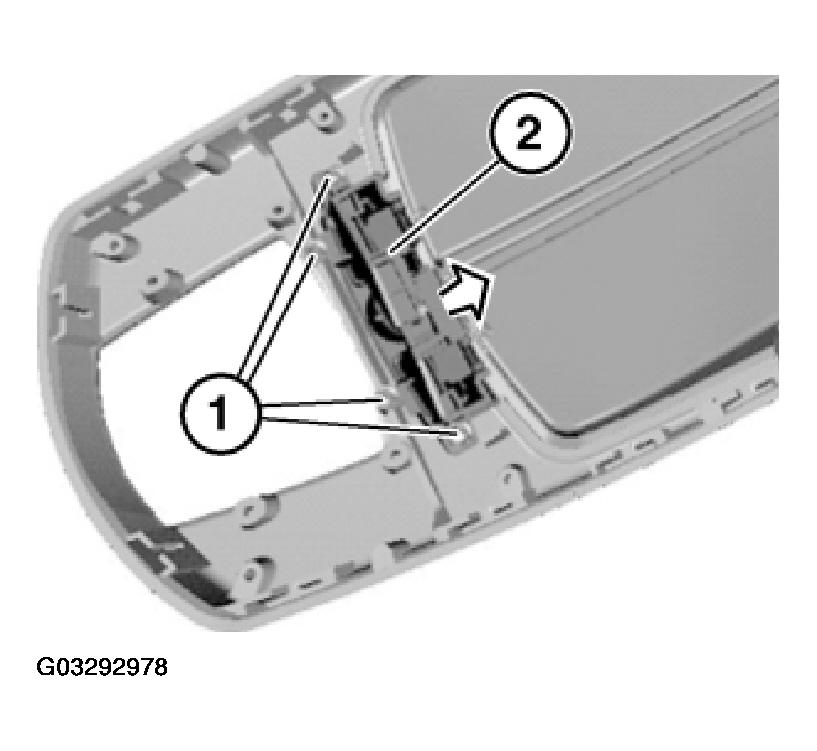

Release screws (1).

Remove fastener (2) for center armrest cover in direction of arrow.

Fig 6: View Of Center Armrest Closing Cover Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

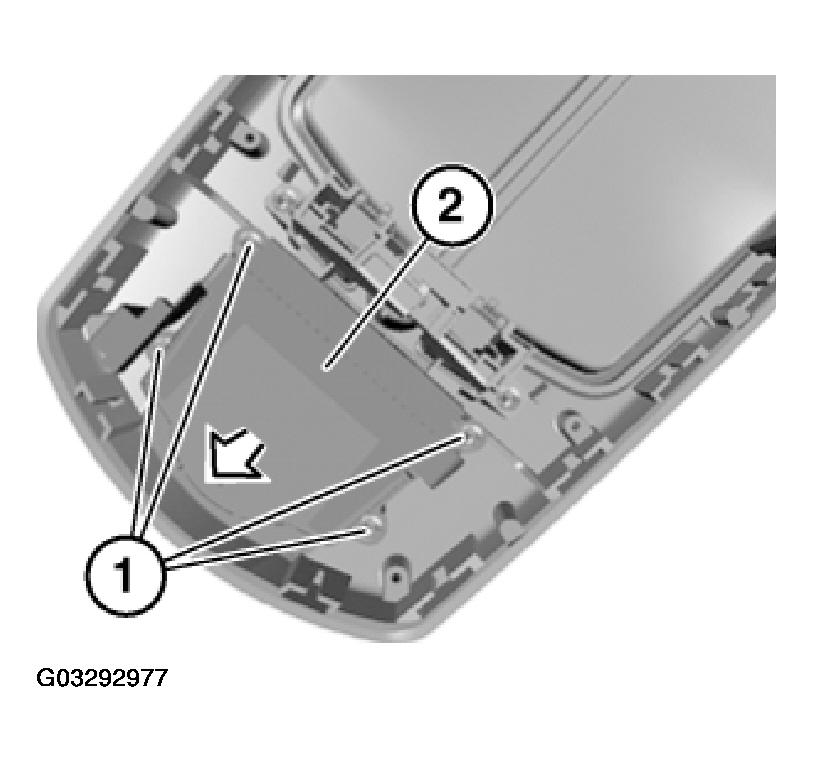

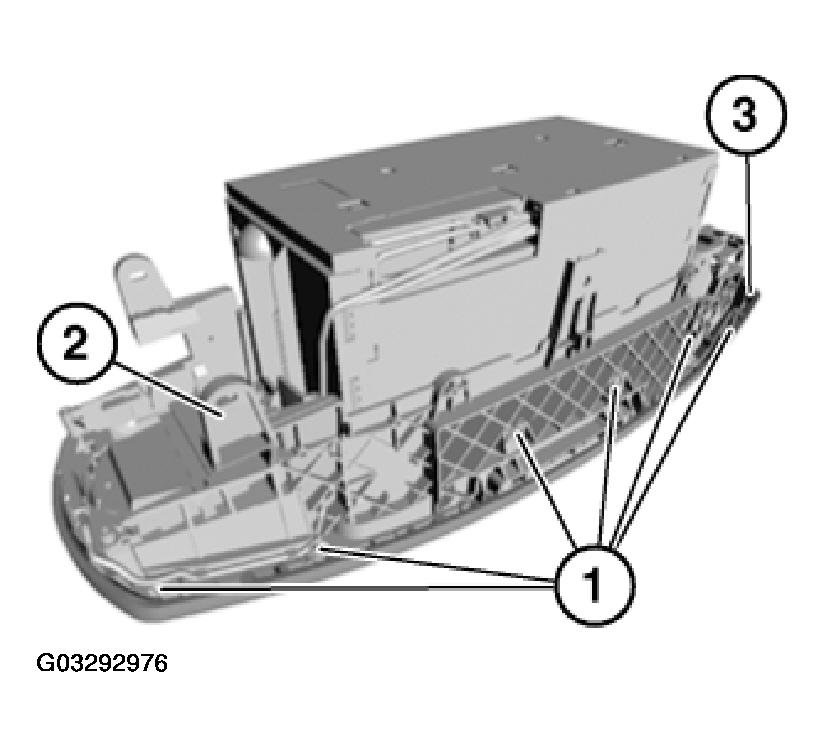

Release screws (1).

Remove center armrest cover (2).

Fig 7: Locating Center Armrest Cover Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
