51 16 188 Replacing Base For Center Console On Storage Tray

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove center console carrier section. Refer to 51 16 180 REMOVING AND INSTALLING CENTER CONSOLE CARRIER SECTION .

IMPORTANT: Set down center armrest on a suitable surface.

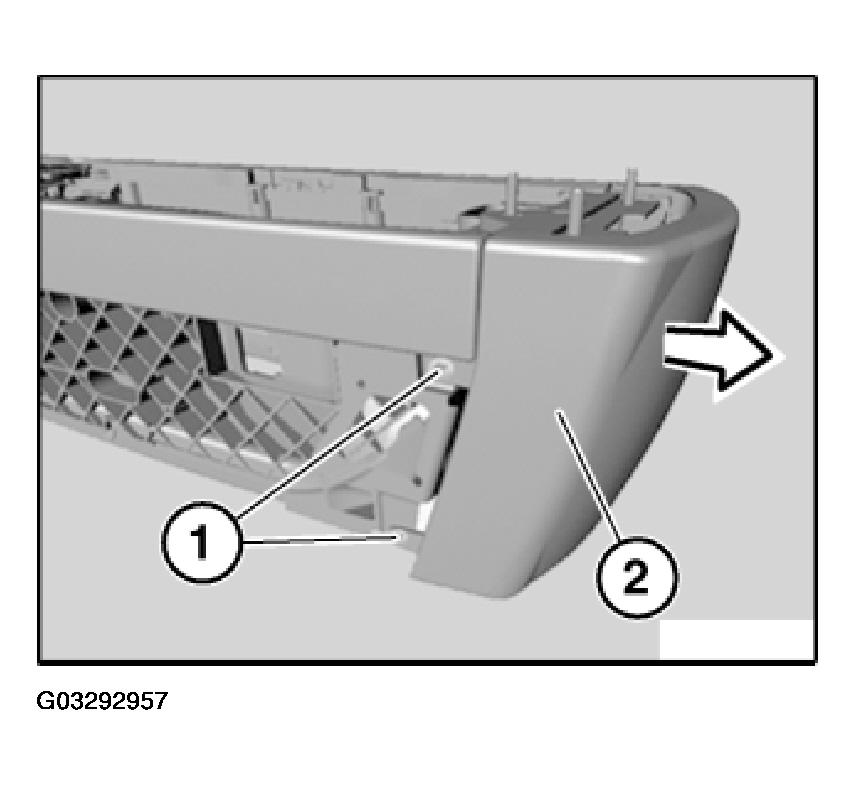

Release screws (1) on left/right.

Remove trim (2) in direction of arrow.

Fig 1: Removing Trim Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

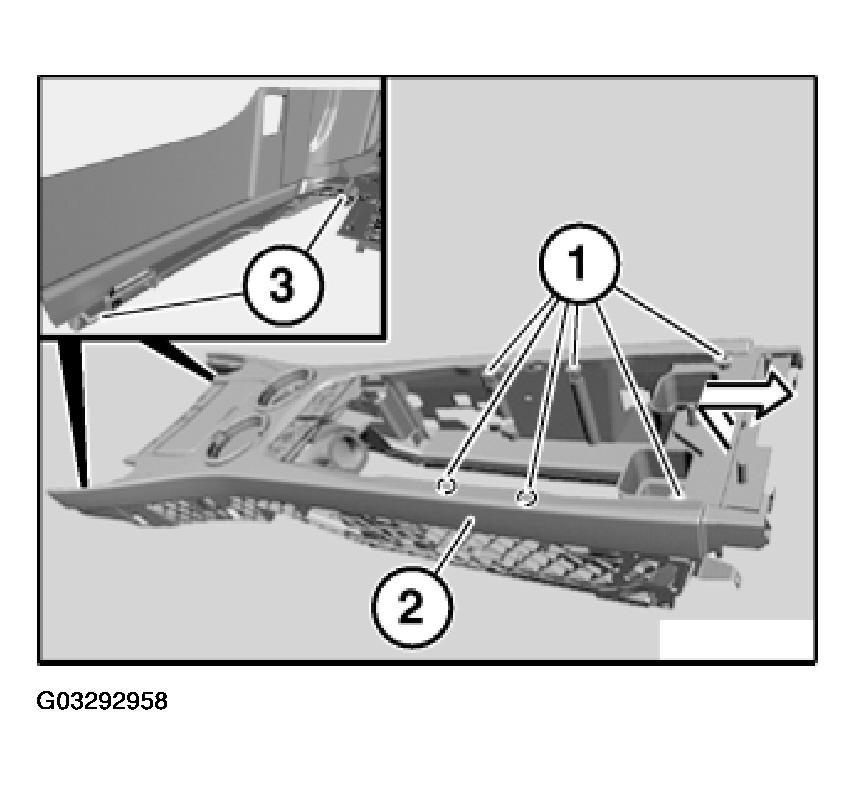

Release screws (1).

Raise base (2) in direction of arrow and pull off.

Installation:

Make sure base (2) is correctly seated in guides (3).

Fig 2: Aligning Base In Guides

Courtesy of BMW OF NORTH AMERICA, INC.

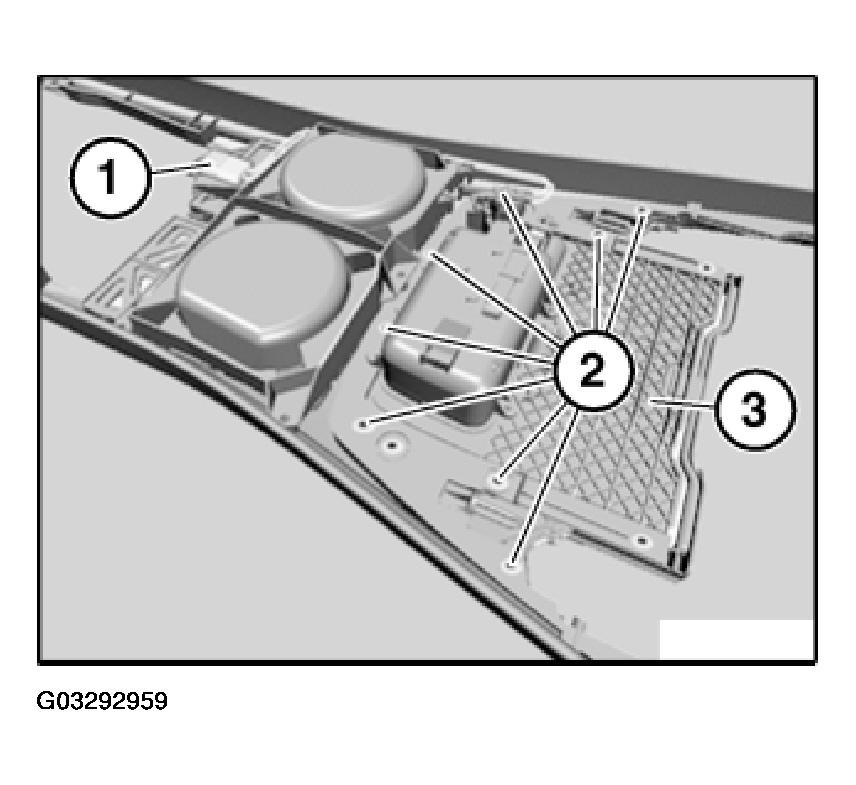

Unlock plug housing (1) and feed out cable.

Release screws (2).

Remove center console function carrier (3).

Fig 3: Locating Screws From Center Console Function Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

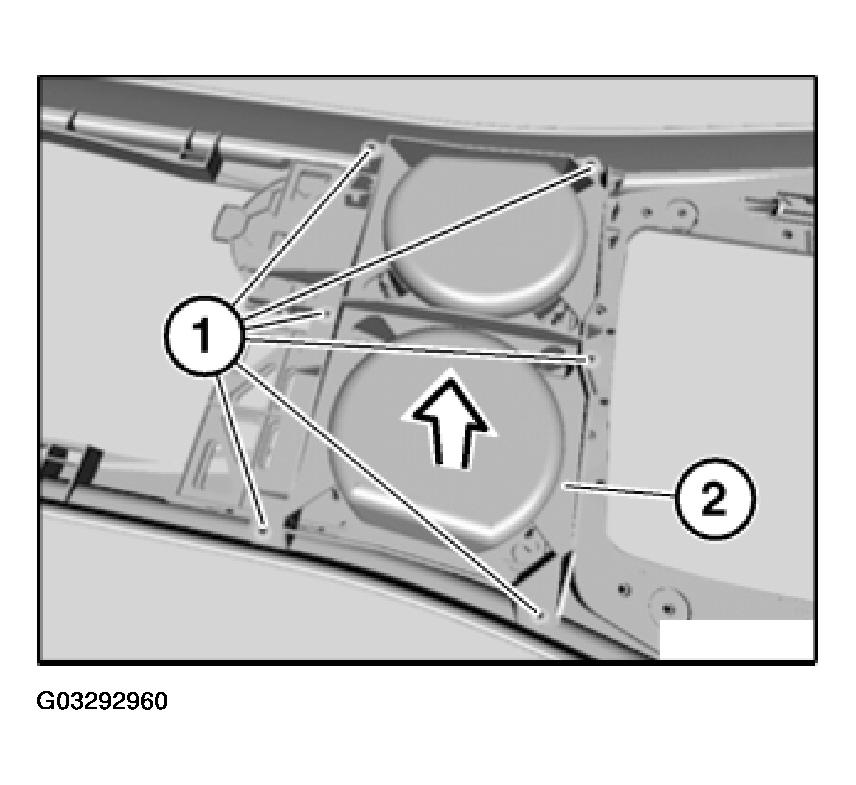

Release screws (1).

Remove drinks holder (2) in direction of arrow.

Fig 4: View Of Drinks Holder Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
