51 16 180 Removing And Installing Center Console Carrier Section

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove center armrest (front). Refer to 51 16 195 REMOVING AND INSTALLING CENTER ARMREST (FRONT) .
Remove side decorative trims. Refer to 51 16 175 REMOVING AND INSTALLING/REPLACING DECORATIVE TRIMS (ALL) ON FUNCTION CARRIER .

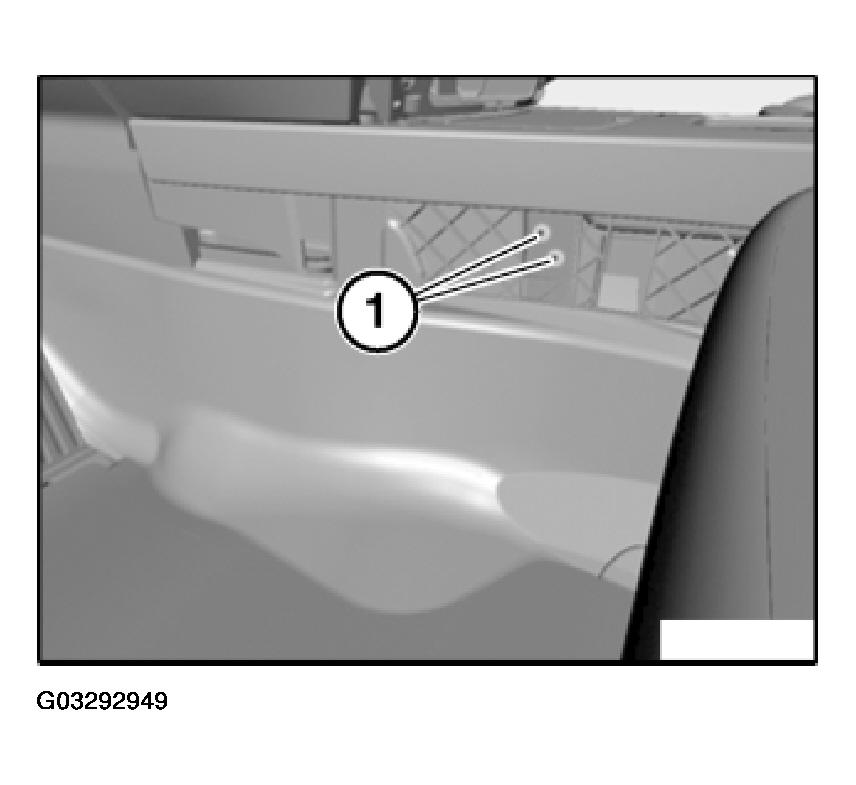

Release screws (1) on left/right.

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

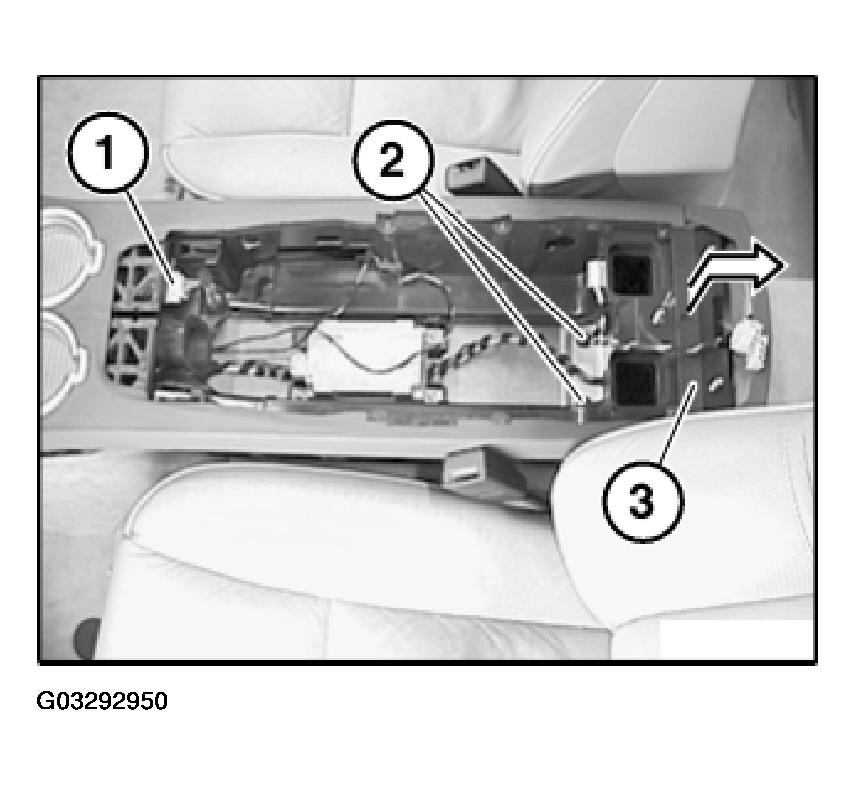

Unfasten plug connection (1) and disconnect.

Unscrew nuts (2).

Raise center console carrier section (3) in direction of arrow and pull out.

Installation:

Make sure cables are correctly routed.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

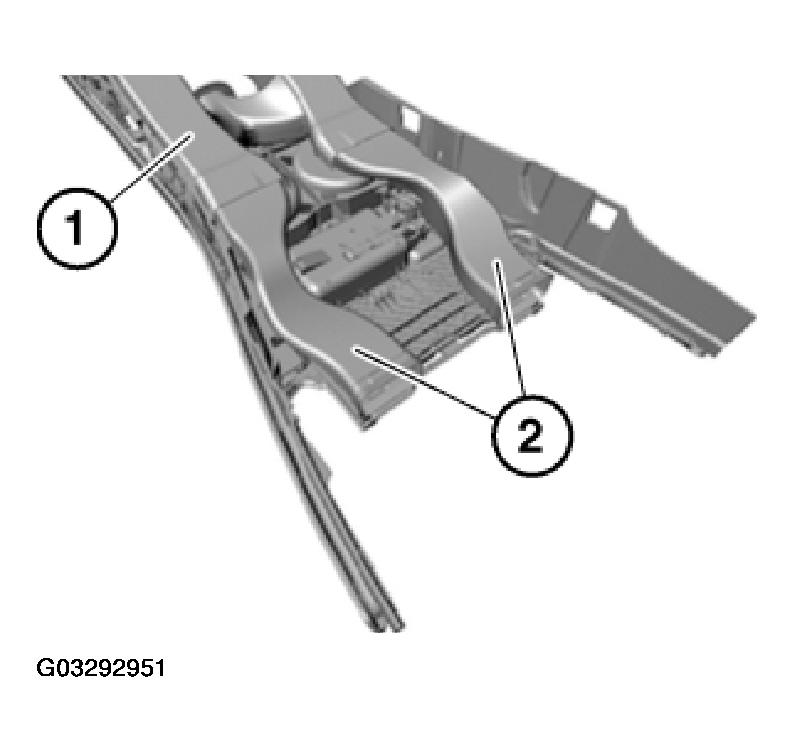

Make sure air ducts (2) are correctly seated on center console carrier section (1).

Fig 3: Locating Air Ducts On Center Console Carrier Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

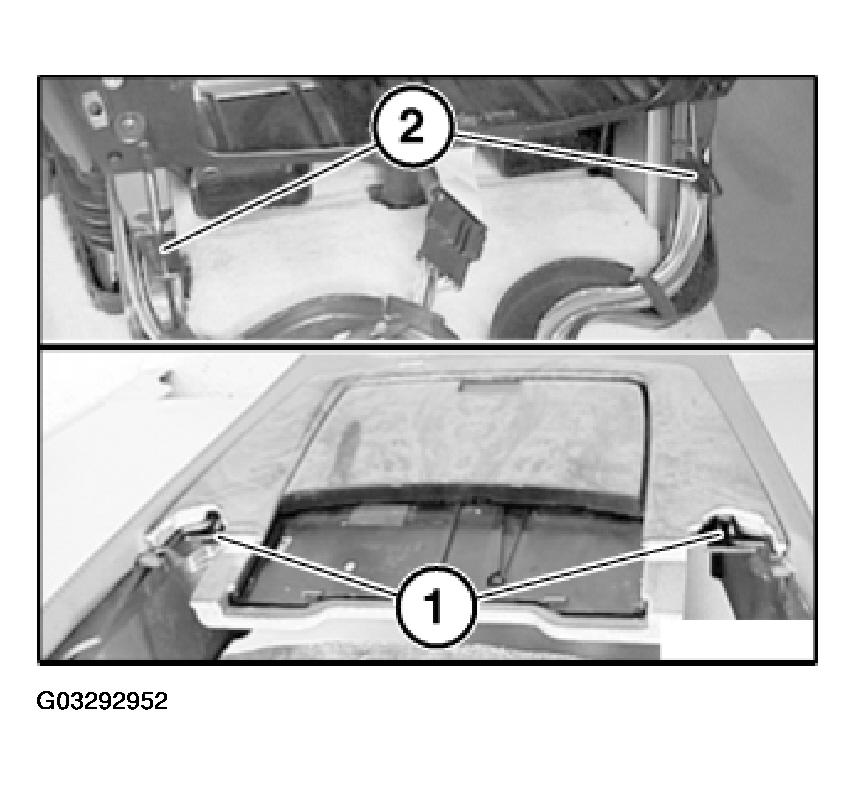

Feed guides (1) into mounts (2).

Fig 4: View Of Guides And Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
