51 16 185 Removing And Installing/Replacing Decorative Trims On Center Console Carrier Section

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove center console function carrier. Refer to 51 16 188 REPLACING BASE FOR CENTER CONSOLE ON STORAGE TRAY .

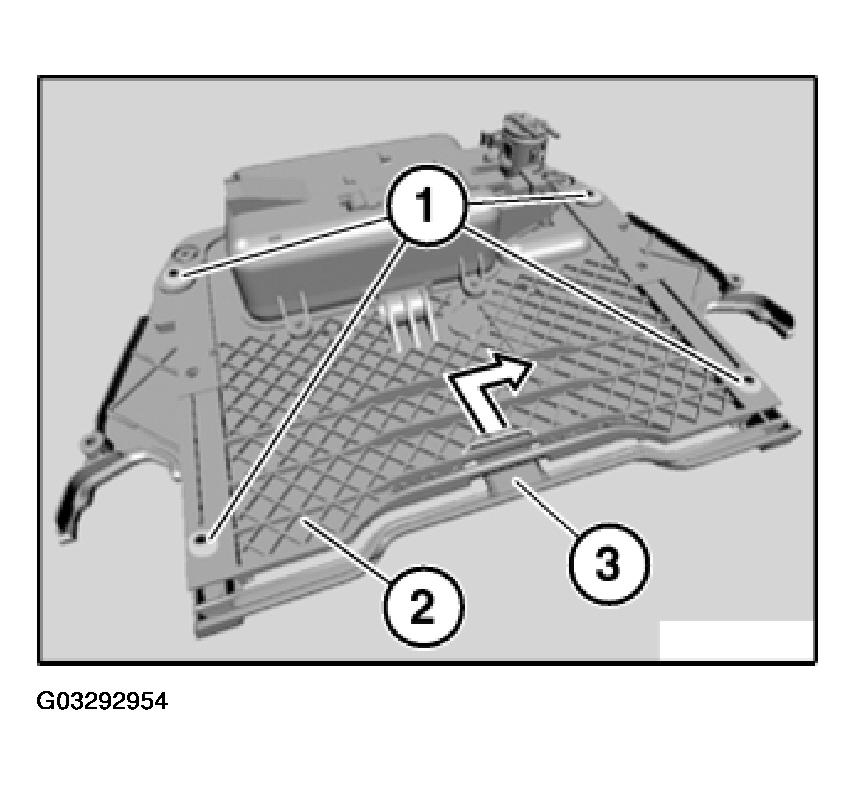

Release screws (1).

Remove carrier (2) from decorative trim (3) in direction of arrow.

Installation:

Make sure guide (3) is correctly seated in carrier (2).

Fig 1: Removing Carrier From Decorative Trim

Courtesy of BMW OF NORTH AMERICA, INC.

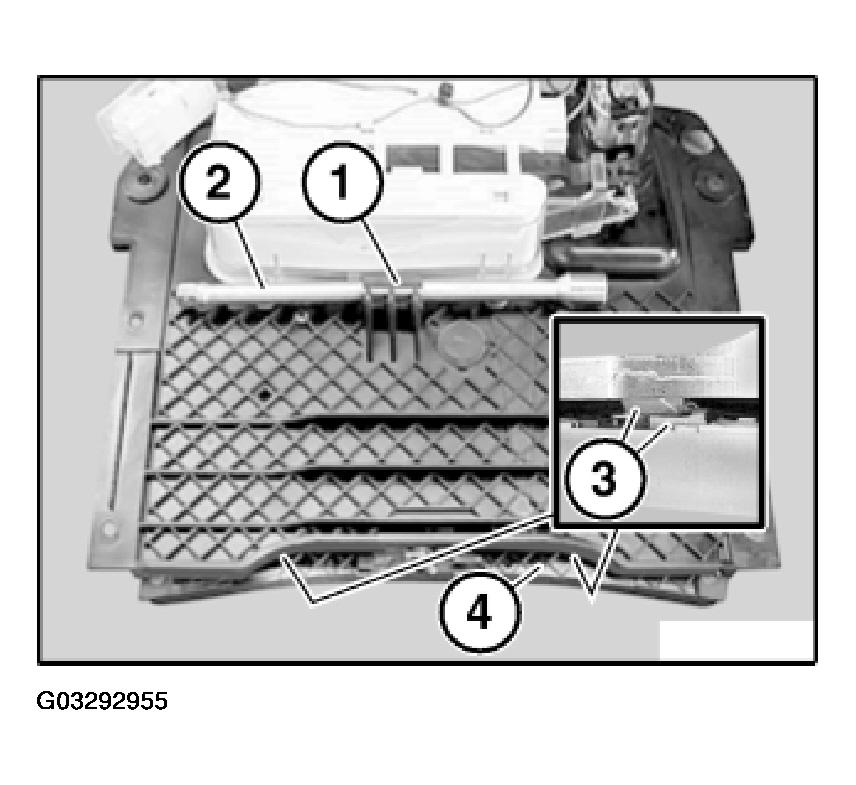

WARNING: Failure to comply with the following note will result in potential personal injury.

NOTE: Secure coil spring (1) against springing out, e.g. with an extension (2). Unlock retaining hook (3) and gently pull out decorative trim (4).

Fig 2: Unlocking Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

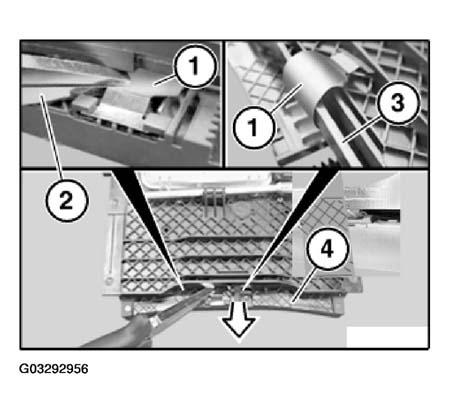

Pull coil spring (1) with flat nose pliers (2) out of mount and place over carrier (3) as illustrated.

Pull out decorative trim (4) in direction of arrow.

Installation:

Make sure coil spring (1) is correctly seated in mount.

Fig 3: Aligning Coil Spring With Flat Nose Pliers

Courtesy of BMW OF NORTH AMERICA, INC.
